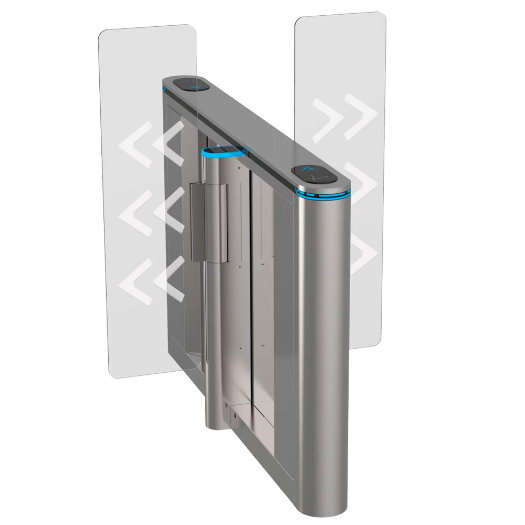

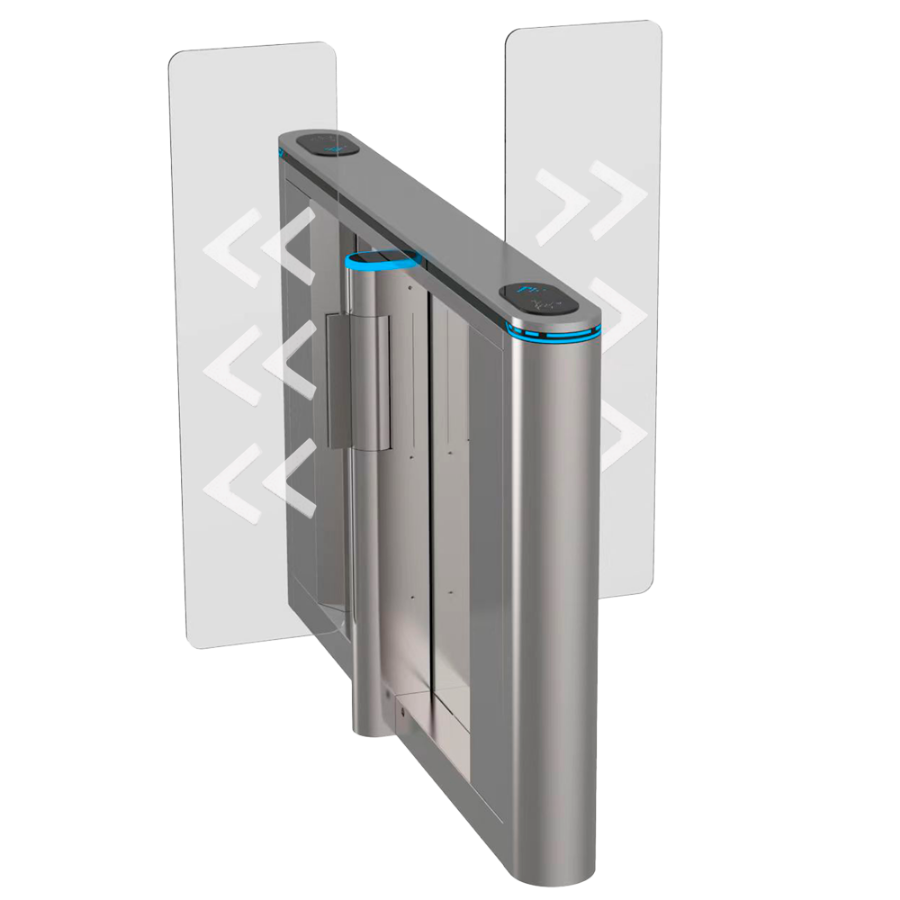

| Model | TS-SG808-M-900 |
| Controller | Winch control board with display compatible with any Access Control system |
| Led indicator | LED status indicator |
| Barrier movement | Opening angle of the acrylic barrier in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening with fire signalAutomatic barrier opening in case of power failure (with additional back-up battery not included) |
| Security | Unauthorized access with sound and lockoutAnti-tailgating configurable with sound and shutdown |
| Compatibility | Integrates with any third party Plug & Play Access Control / Universal caps for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | Stainless steel SUS304 with acrylic doors and PC lids |
| Passage speed | 50-60 persons/minute |
| Reliability | Servomotor10.000.000 of cycles |
| Infrared sensors | 6 infrared sensor pairs |
| Power | AC 110/220 V / 100 W max. |
| Temp. operation | -25o C ~ +70o C |
| Lane Width | 900 mm (intermediate lathe, size 450 mm)Special height doors 1.5 m from the ground |
| Dimensions of pass | 450 (W) x 1500 (D) mm (suitable for persons with reduced mobility) |
| Dimensions | 980 (H) x 150 (W) x 1500 (D) mm |
| Weight | 65 kg (each unit) |
| Protection | Interior |
