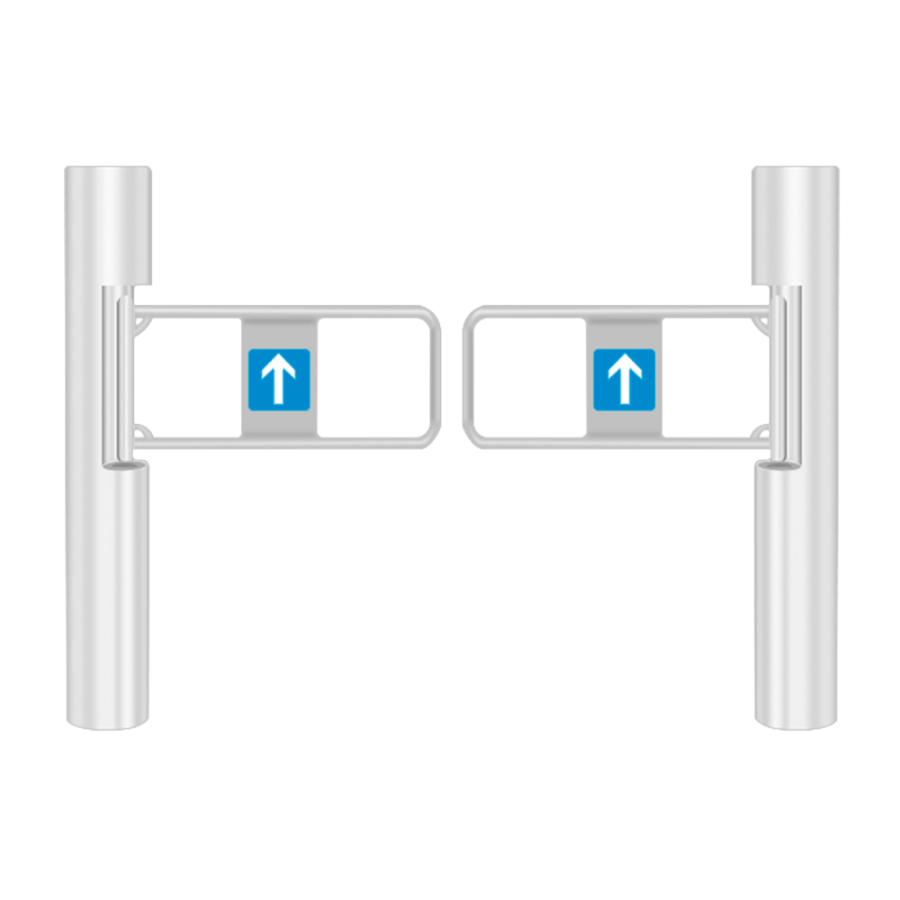

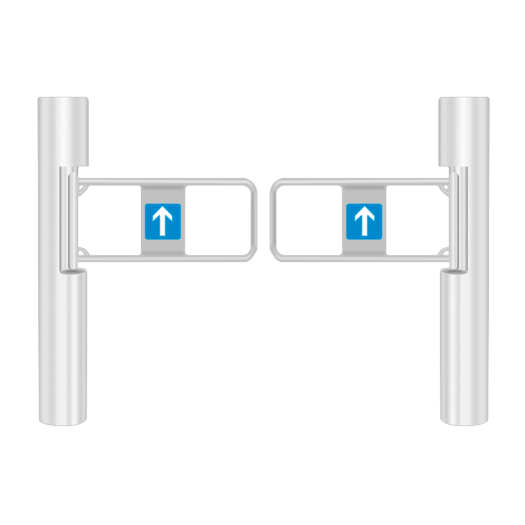

| Model | TS-SB502-1200-SMARKET |
| Controller | Winch control board with display compatible with any Access Control system |
| Barrier movement | Opening angle of the metal barrier in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening with fire signalAutomatic barrier opening in case of power failure (battery back-up included) |
| Compatibility | Integrates with any Plug & Play third-party Access Control System |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | Stainless steel SUS304 with metal door |
| Passage speed | 40-50 persons/minute |
| Reliability | Brushless brushed motor5.000.000 of cycles |
| Infrared sensors | 2 infrared sensor pairs |
| Power | AC 110/220 V |
| Temp. operation | -15o C ~ +60o C |
| Lane Width | 1200 mm |
| Dimensions of pass | 1200 (W) x 168 (D) (suitable for persons with reduced mobility) |
| Dimensions | 1050 (H) x 168 (W) x 168 (D) mm |
| Weight | 25 kg (each unit) |
| Protection | Interior |
