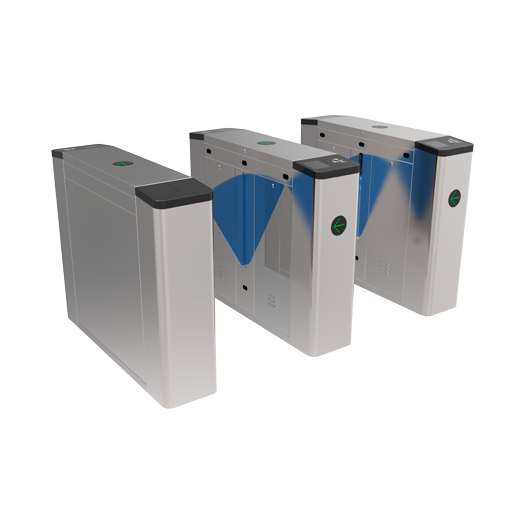

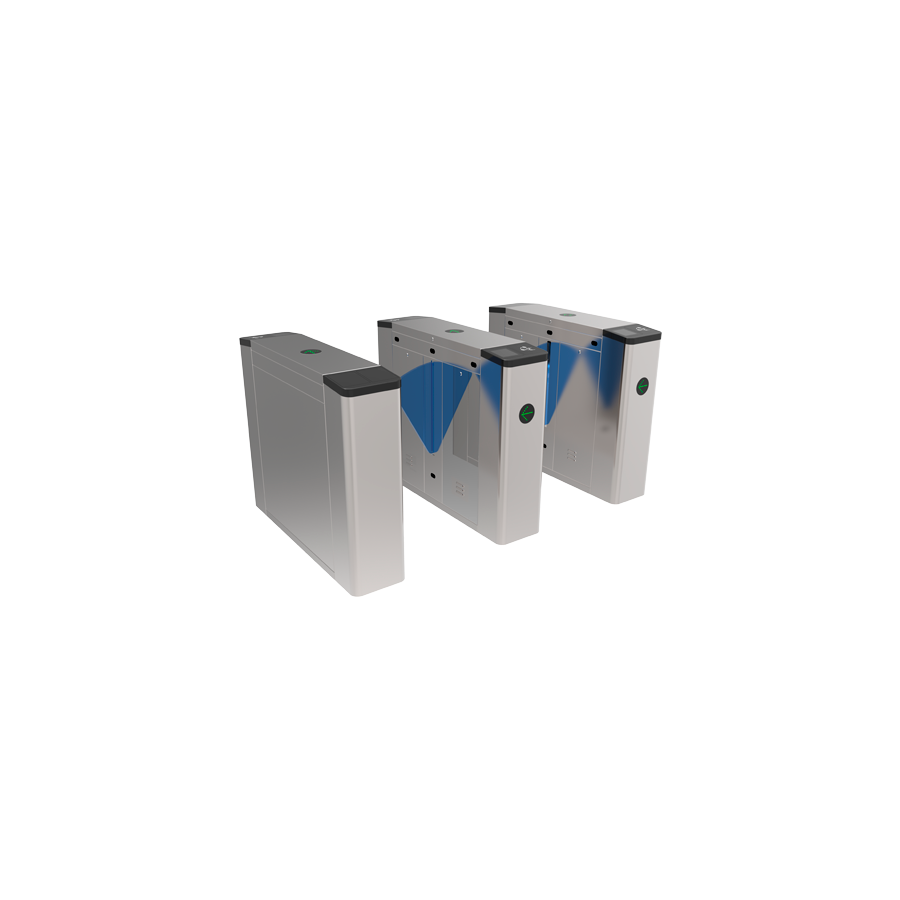

| Model | TS-FB701-M |

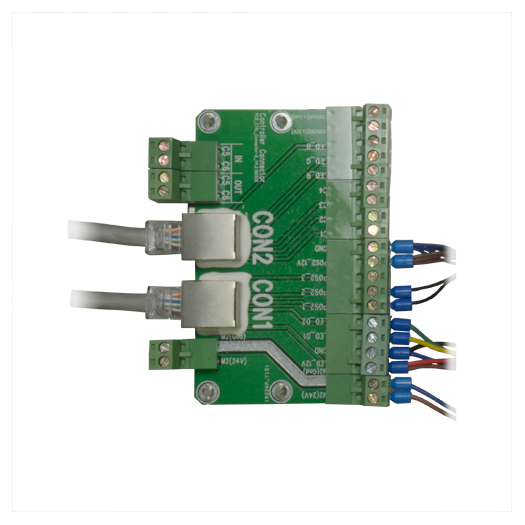

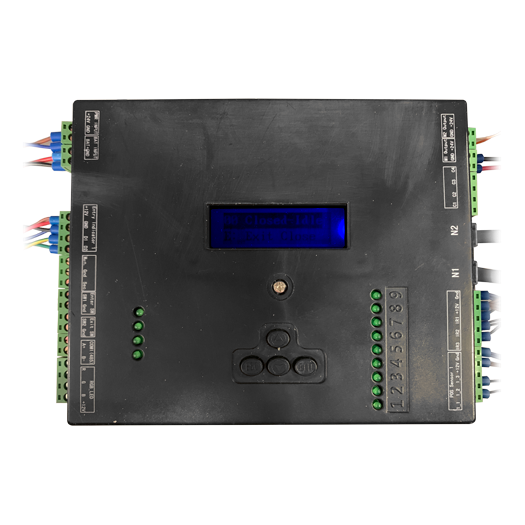

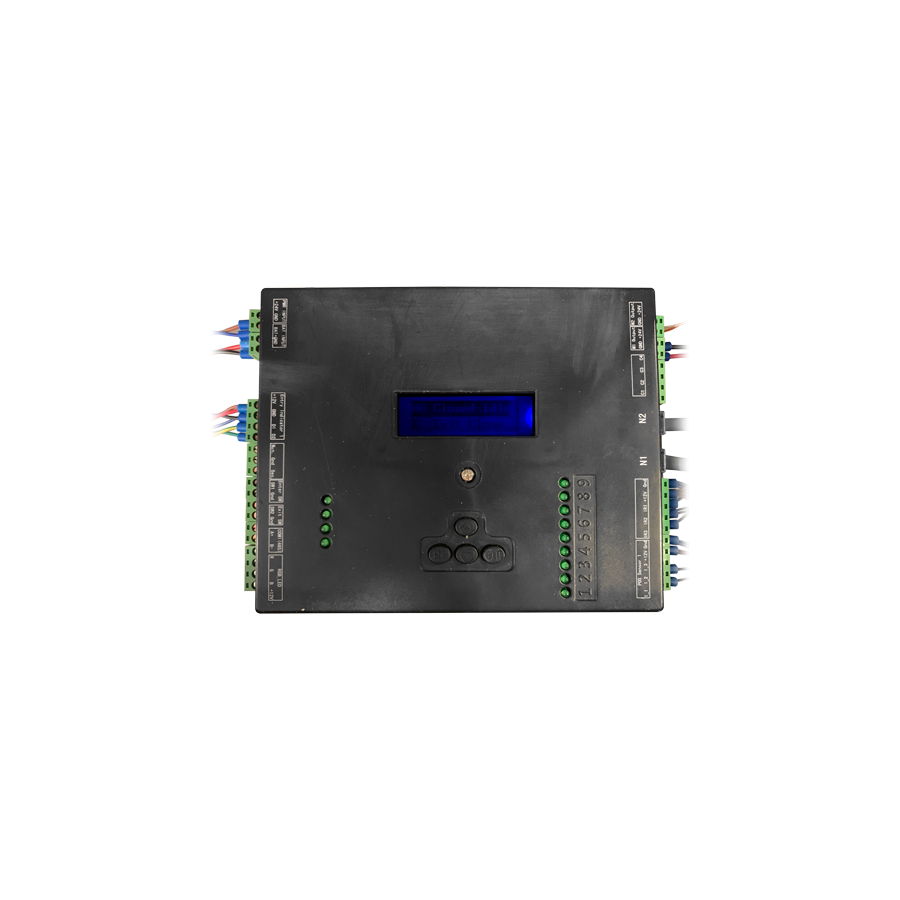

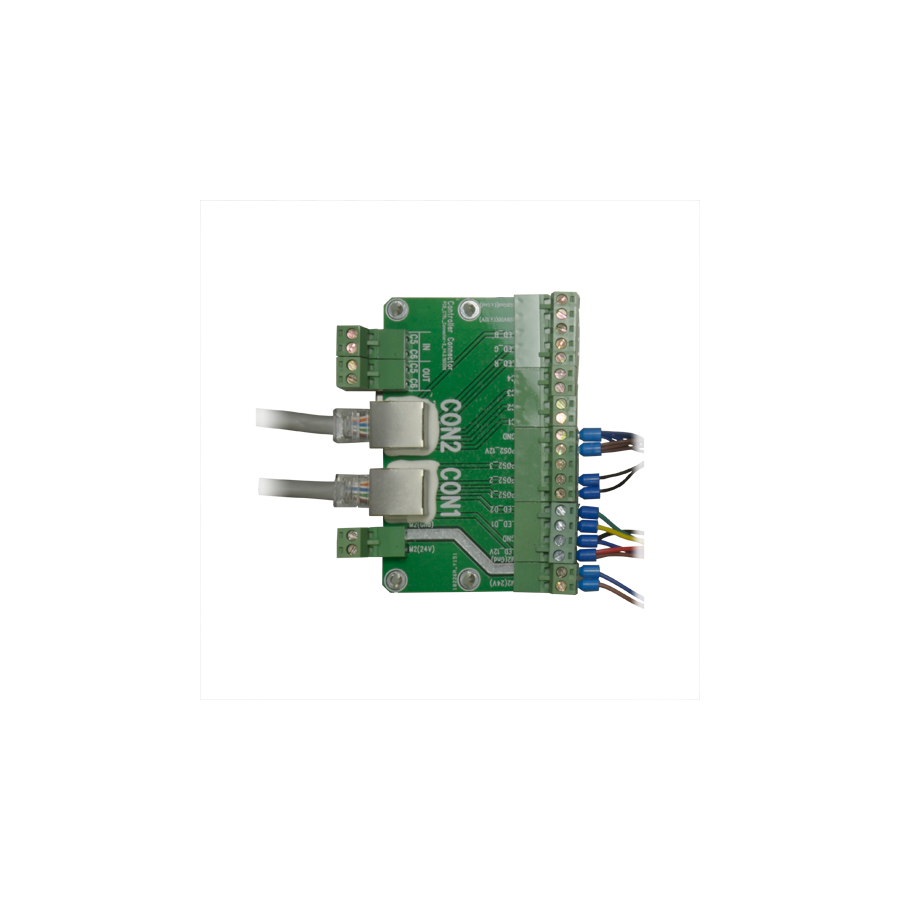

| Controller | Winch control board with display compatible with any Access Control system |

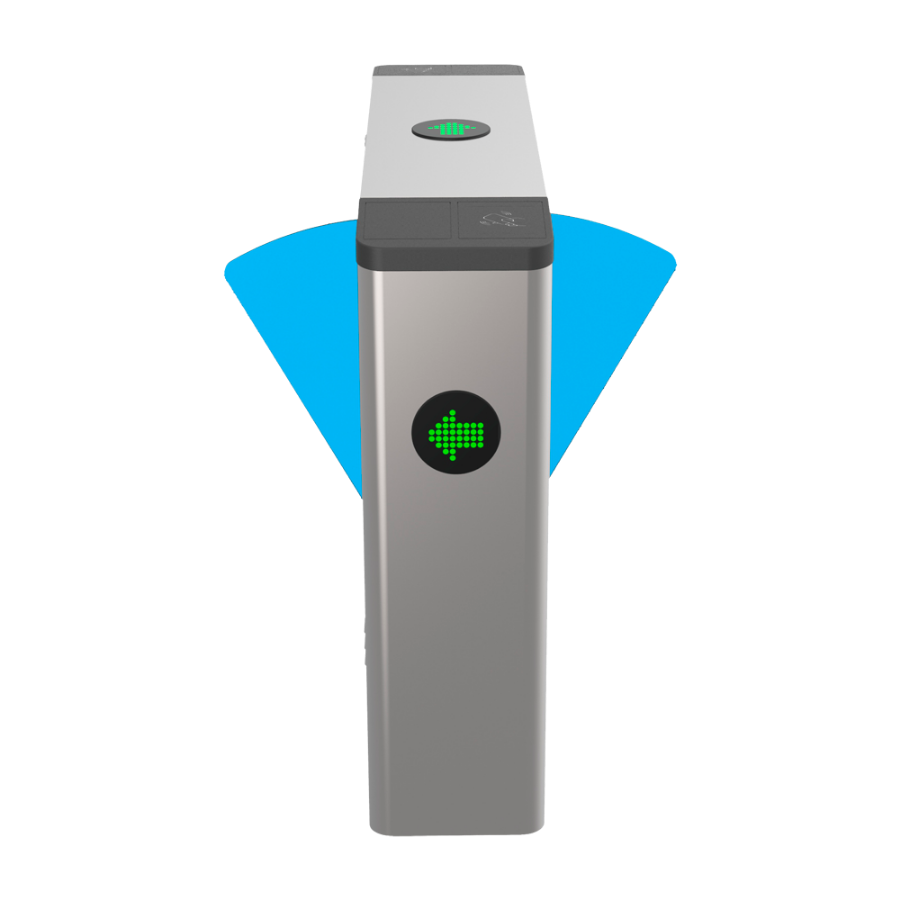

| Led indicator | LED status indicator |

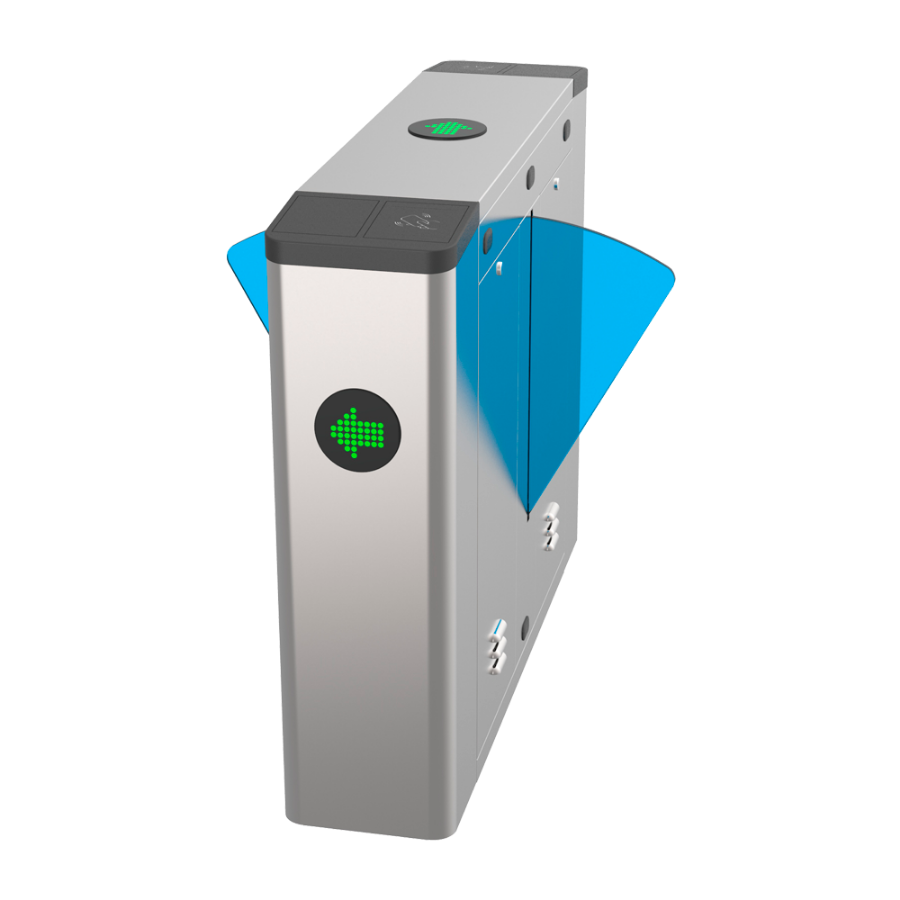

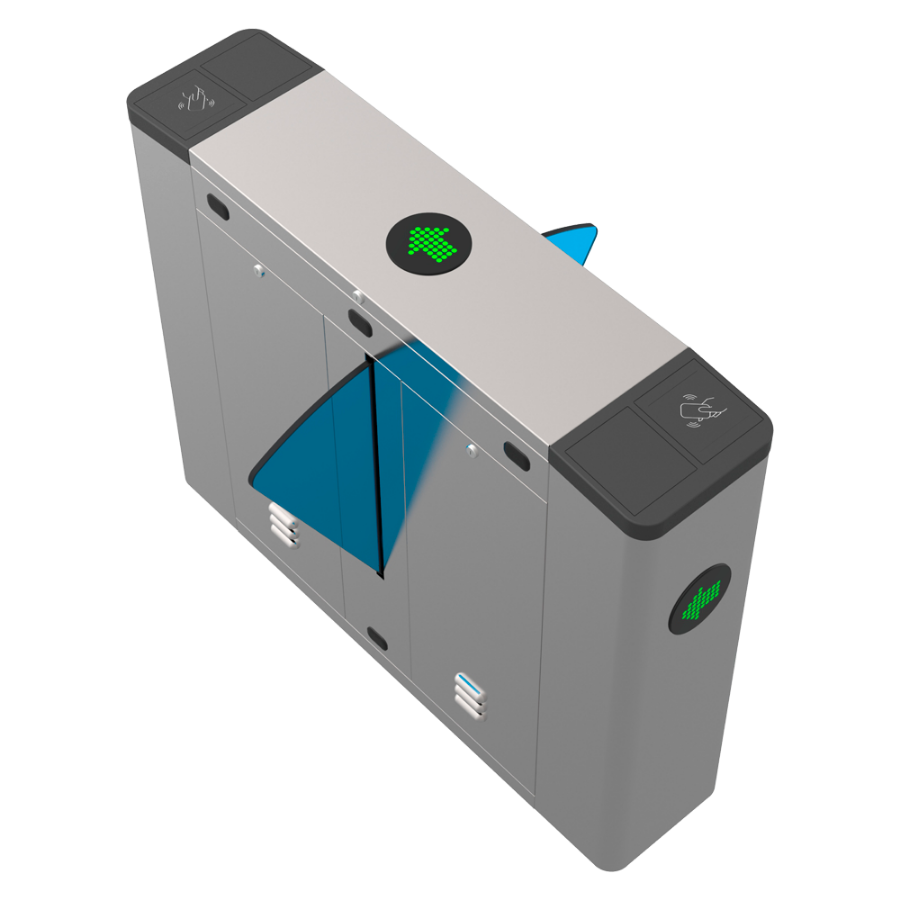

| Barrier movement | Retractable folding for opening of the acrylic barrier inside the Turnstile |
| Emergency mode | Emergency barrier opening with fire signalAutomatic barrier opening in case of power failure (battery back-up included) |
| Security | Unauthorized access with sound and lockoutAnti-tailgating configurable with sound and shutdown |
| Compatibility | Integrates with any third party Plug & Play Access Control / Universal caps for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | Stainless steel SUS304 with acrylic barriers and PC caps |
| Passage speed | 30-40 persons/minute |
| Reliability | Brushed motor3.000.000 of cycles |
| Infrared sensors | 4 infrared sensor pairs |
| Power | AC 110/220 V |
| Temp. operation | -28o C ~ +60o C |
| Lane Width | 550 mm (intermediate turnstile, size 225 mm) |
| Dimensions of pass | 550 (w) x 1200 (d) mm |
| Dimensions | 980 (H) x 280 (W) x 1200 (D) mm |
| Weight | 48 kg |
| Protection | Interior |
