| Nominal system voltage | 12V |
| Charging current | 8 A |
| Discharge current | 8 A |
| Maximum input voltage | 18 V |
| Maximum open circuit voltage | 46 V (25 oC) |
| RS485 Communication | Optional bridge required for cloud platform use |
| Material | Lithium LFP |
| Operating temperature | -20oC + 50oC |
| Relative Humidity | ?95% |
| Maximum power | 100 W |
| Voltage Vmp | 18.9 V |
| Open circuit voltage | 22.5 V |
| Peak current | 5.74 A |
| Short circuit current | 6.08 A |
| Short-circuit voltage | 22.5 V |
| Maximum system voltage | 1000 V DC (IEC)/600 V DC (UL) |
| Protection diode | 2 per step / 4 per step |
| Transfer efficiency | 20% - 21% |
| Tolerance | -3/+3 % |
| Dimensions | 86 x 76 x 28 CM |
| Weight | 5.9 kg |
| Degree of protection | IP 67 |
| Connector type | MC4 |
| Temperature properties | Working temperature -5?~65?Storage temperature -40?~75? |
| Capacity | 50 AH / 665.6 Wh |
| Voltage | - V |
| Power | - W |
| Internal resistance | ?80m? |
| Load stop | -V (4.2V/celda) |
| Discharge stop | -V (2.8V/celda) |
| Maximum charge current | 10 A |
| Working temperature | -20 oC~55 oC |
| Storage relative humidity | 5%~95% (without condensation) |
| Material | Hand-painted galvanized steel plate |
| Total Weight | 26Kg |
Self-powered systems are the best solution for CCTV in off-grid environments, such as construction site surveillance, photovoltaic parks or any type of installation.

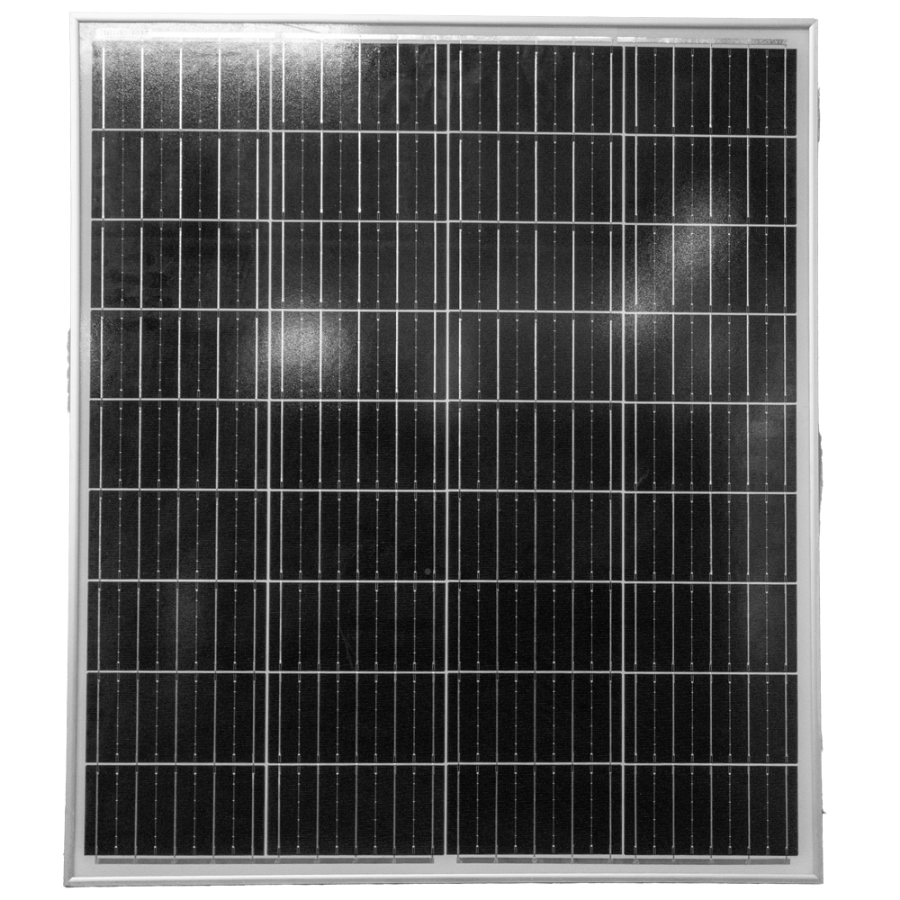

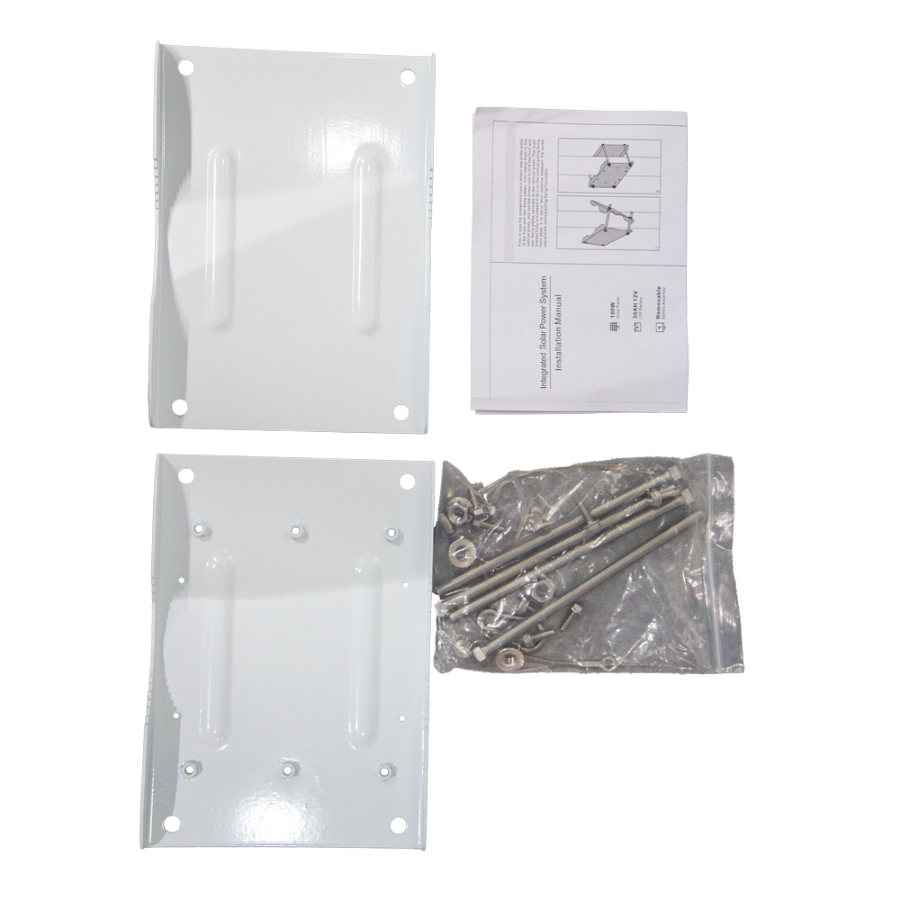

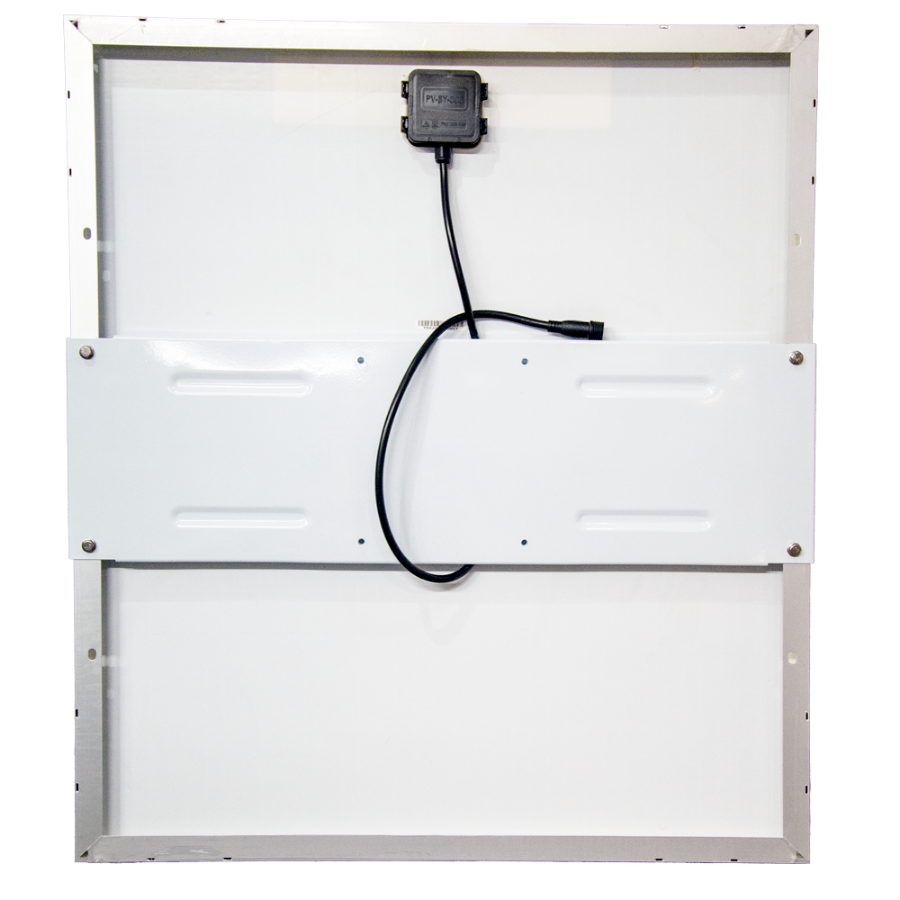

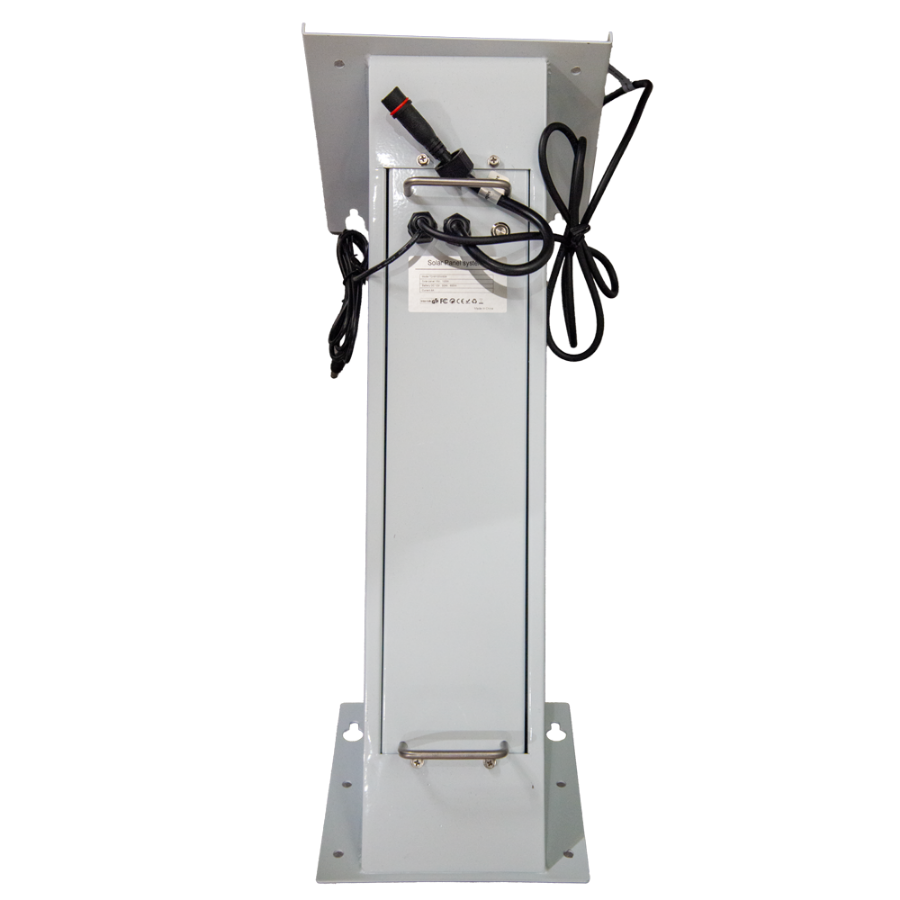

These all-in-one kits consist of solar panel, lithium battery with integrated MPPT regulator (to optimize the power of the solar panel) and bracket for installation on a mast. This makes installation simple and construction time short. It is also possible to communicate with the optional bridge via RS485 protocol to obtain real-time remote monitoring via the manufacturer's CLOUD.
