| Brand | Teltonika |
| Device | Industrial Unmanaged PoE Switch |

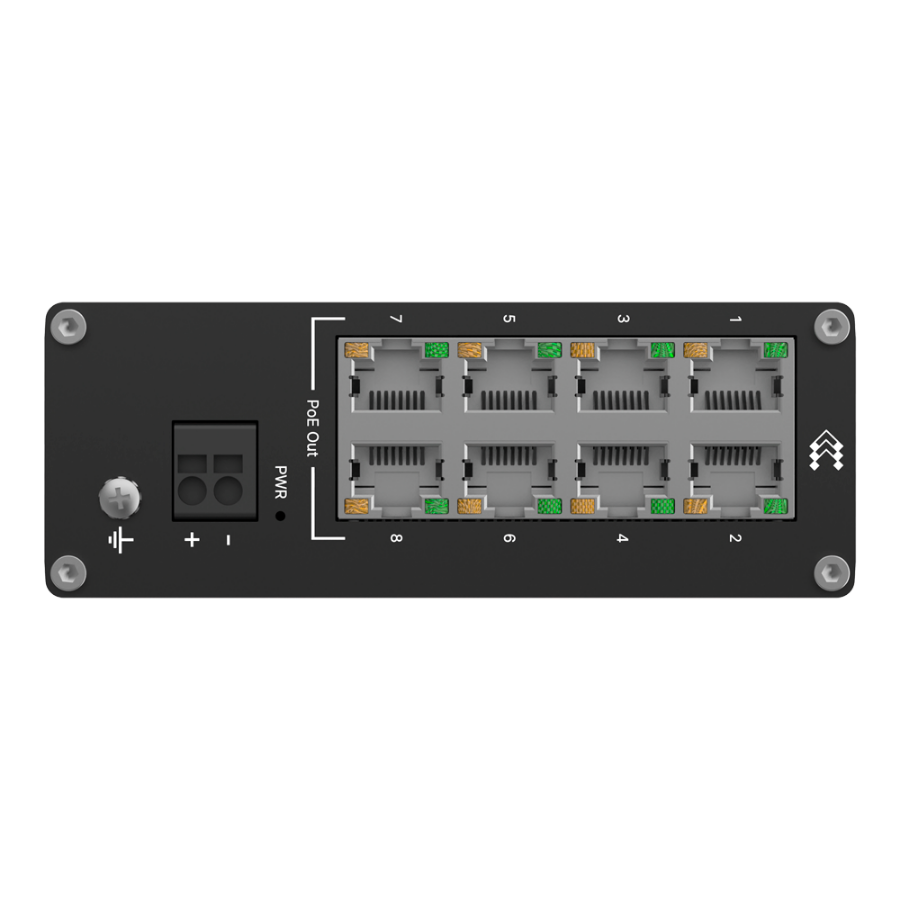

| Ethernet | 8 Ethernet ports RJ45 10/100Mbps |
| PoE ports | 8 PoE+ Ports 802.3af/at |
| IEEE standards compliance 802.3 | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Switching capability (non-blocking) | 20Gbps |
| MAC Table | 2K inputs |
| Packet Buffer | 128 Kb |
| Jumbo Frame | 9216 bytes |
| Technology | Auto MDI/MDI-X Cable detection |
| Power | DC connector 2 Industrial pins 7 to 57v |
| Power consumption | Standby: 0,5W / Max: 1,5W / Max with PoE: 246 W |
| Power supply Protection | Overvoltage protection: 60 VmaxReverse polarity protection: 80 VmaxSurge protection: min. 64,4 V/max. 71,2 VInput voltage range breakdown voltage, 93,6 V of maximum reverse voltage @4,3 A of maximum r |
| Material | Anodized Aluminum |
| Degree of protection | IP30 |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |

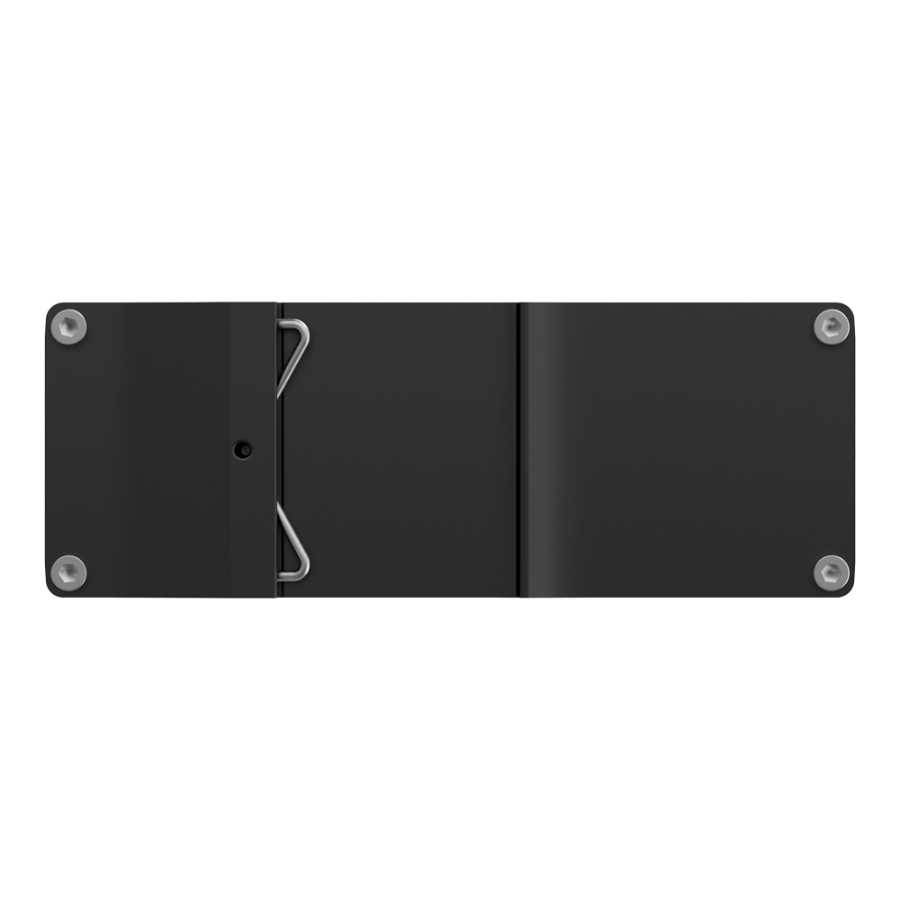

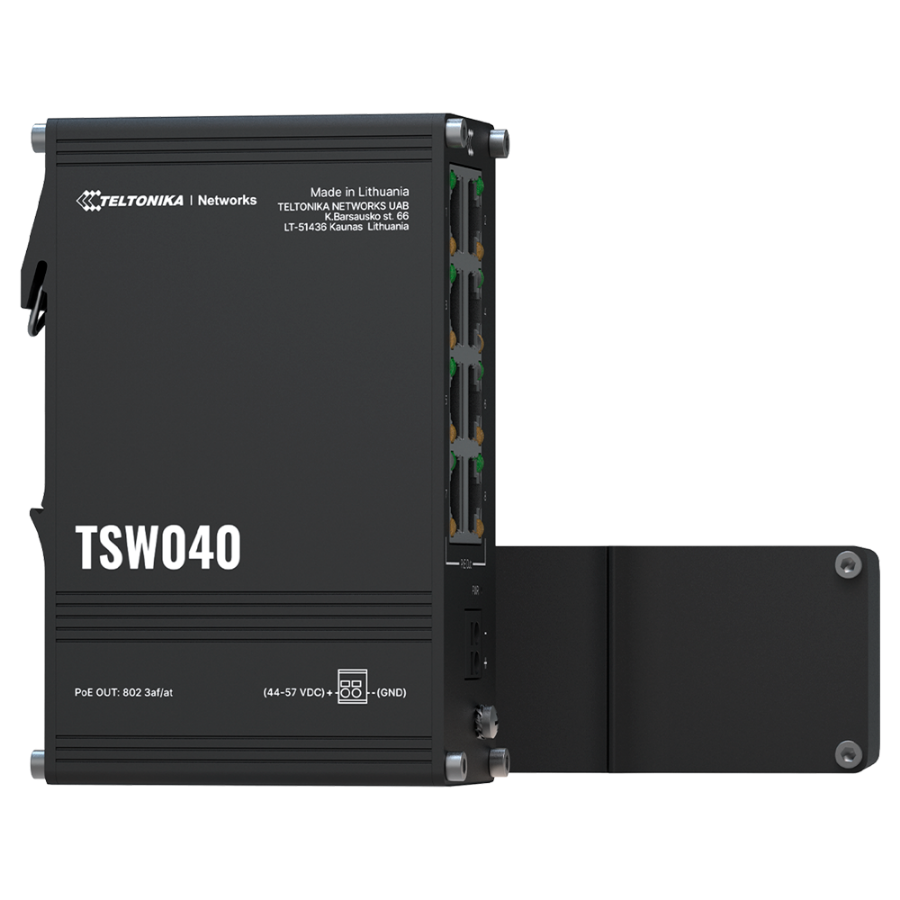

| Optional Mounting Kit (Not included) | Rail Mounting Kit |
| Dimensions | 41,2 (Al) x 113,1 (W) × 74,6 (D) mm |
| Weight | 280 g |
