| Brand | Teltonika |
| Device | Industrial Unmanaged Switch |
| Ethernet | 5 Ethernet ports RJ45 10/100Mbps |
| IEEE standards compliance 802.3 | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Switching capability (non-blocking) | 10Gbps |
| MAC Table | 2K inputs |
| Packet Buffer | 128 Kb |
| Jumbo Frame | 9216 bytes |
| Technology | Auto MDI/MDI-X Cable detection |

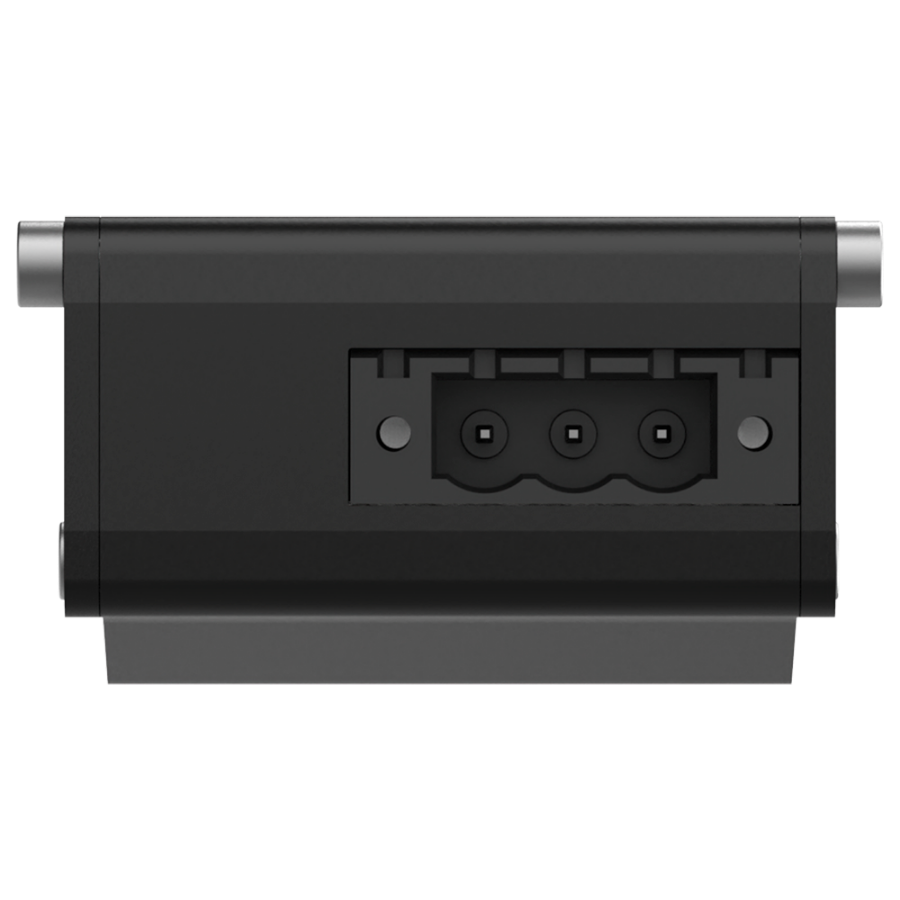

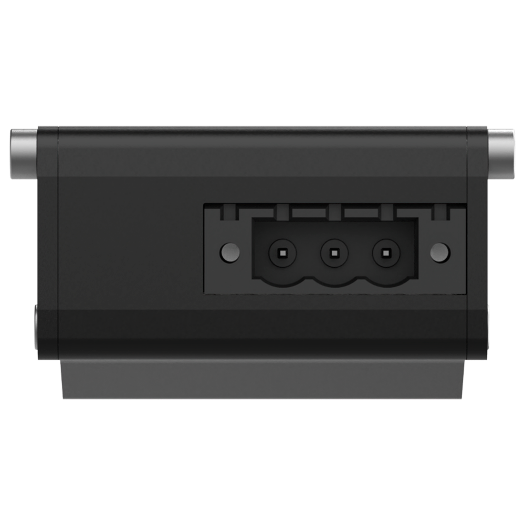

| Power | DC connector 3 Industrial pins 7 to 57v |
| Power consumption | Standby: 1W / Max: 1,5W |
| Power supply protections | Overvoltage protection: 60 VmaxReverse polarity protection: 80 VmaxSurge protection: min. 64,4 V/max. 71,2 VInput voltage range breakdown voltage, 93,6 V of maximum reverse voltage @4,3 A of maximum r |
| Material | Anodized Aluminum |
| Degree of protection | IP30 |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |

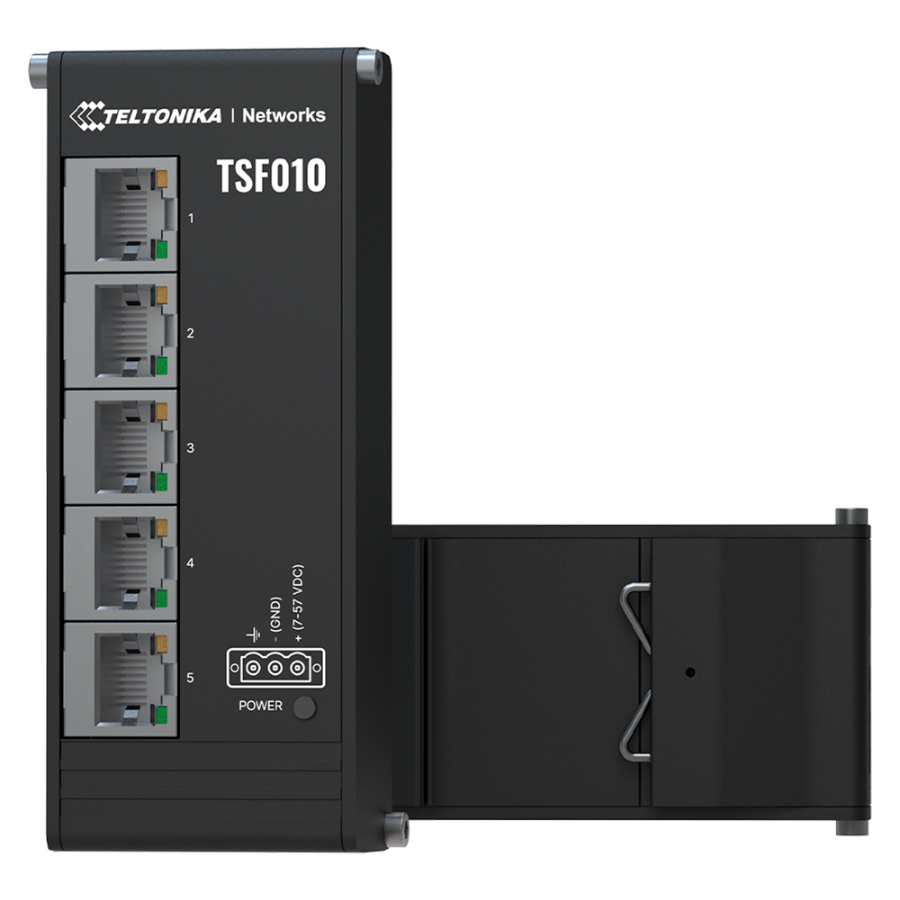

| Optional Mounting Kit (Not included) | Rail Mounting Kit |
| Dimensions | 28 (H) x 113(An) × 50 (D) mm |
| Weight | 142 g |
