| Brand | Teltonika |
| Device | Industrial Router |
| Wi-Fi | Wi-Fi 5 802.11ac Dual Band 2.4GHz+ 5GHz [%VAR%] |

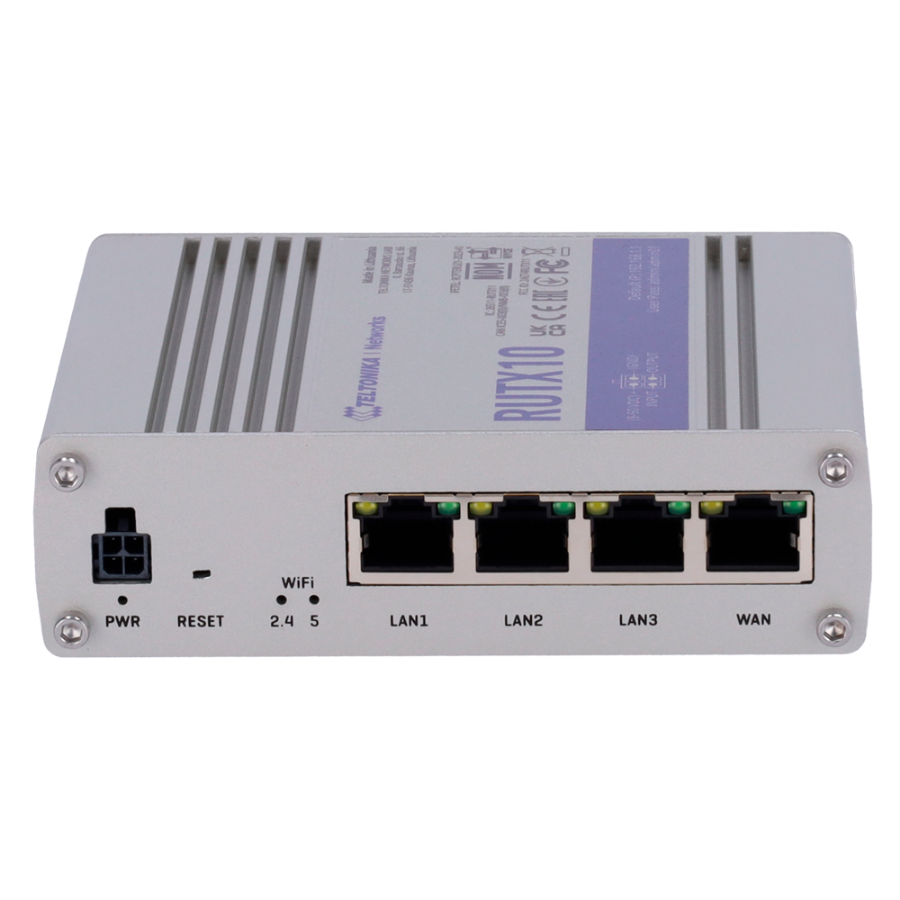

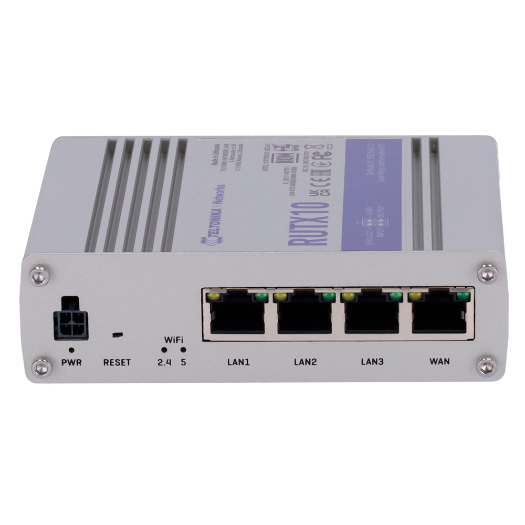

| Ethernet | 4 Ethernet ports RJ45 10/100/1000Mbps (1 WAN + 3 LAN) |

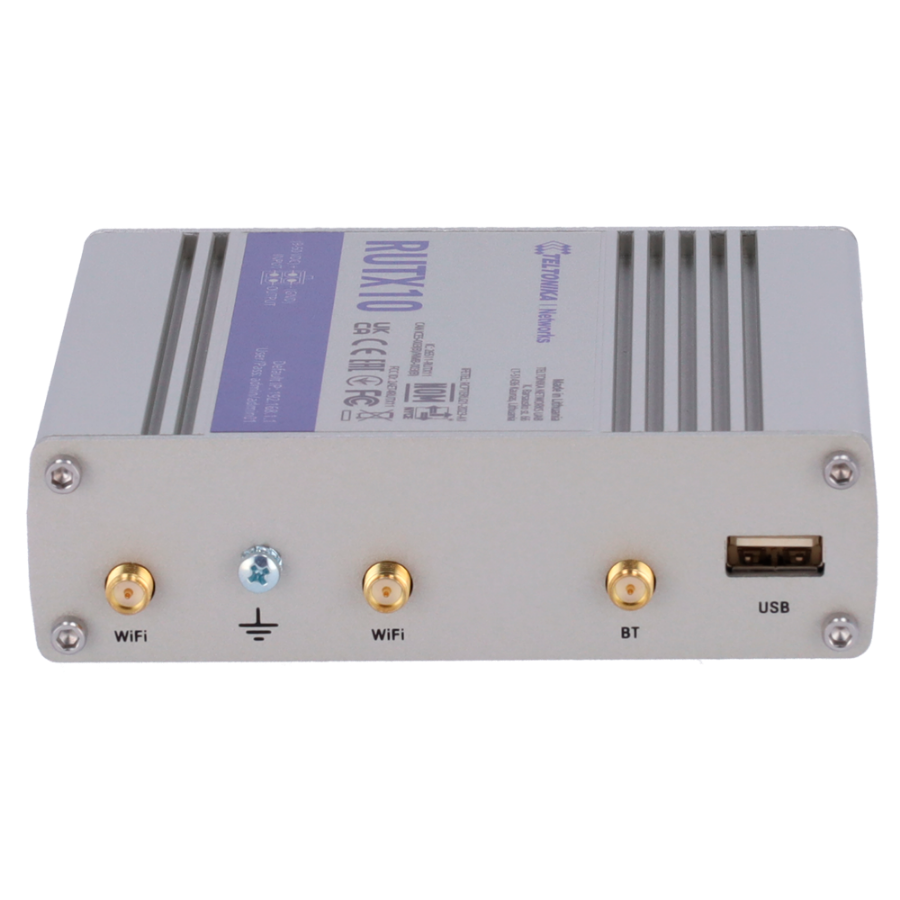

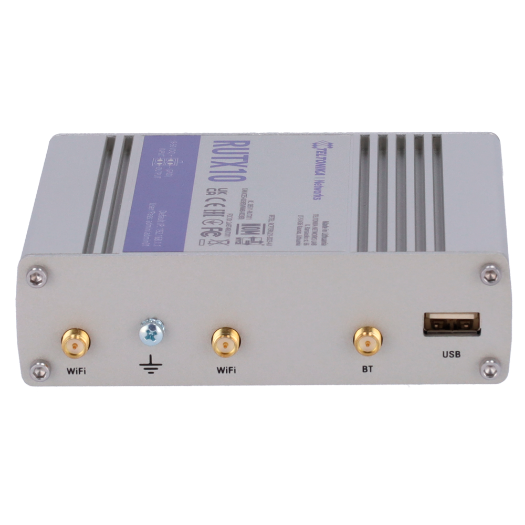

| Antenna connectors | BLE and WiFi (antennas included) |
| CPU | Qualcomm 4x ARM Cortex A7 717MHz |
| RAM | 256MB |
| Flash | 256MB |
| Operating system | RutOS (Based on OpenWRT) |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging |
| Power | DC connector 4 Industrial pins 9~50V Power Supply Included |
| Material | Aluminium |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Dimensions | 32,2 (Al) x 115 (W) × 95,2 (D) mm |
| Weight | 355 g |
| Inputs and Outputs | 1 x Digital Input, 0 - 6 V detected as low level, 8 - 30 V detected as high level1 x Digital Output, Open Collector Input, Maximum Output 30 V, 300 mA |

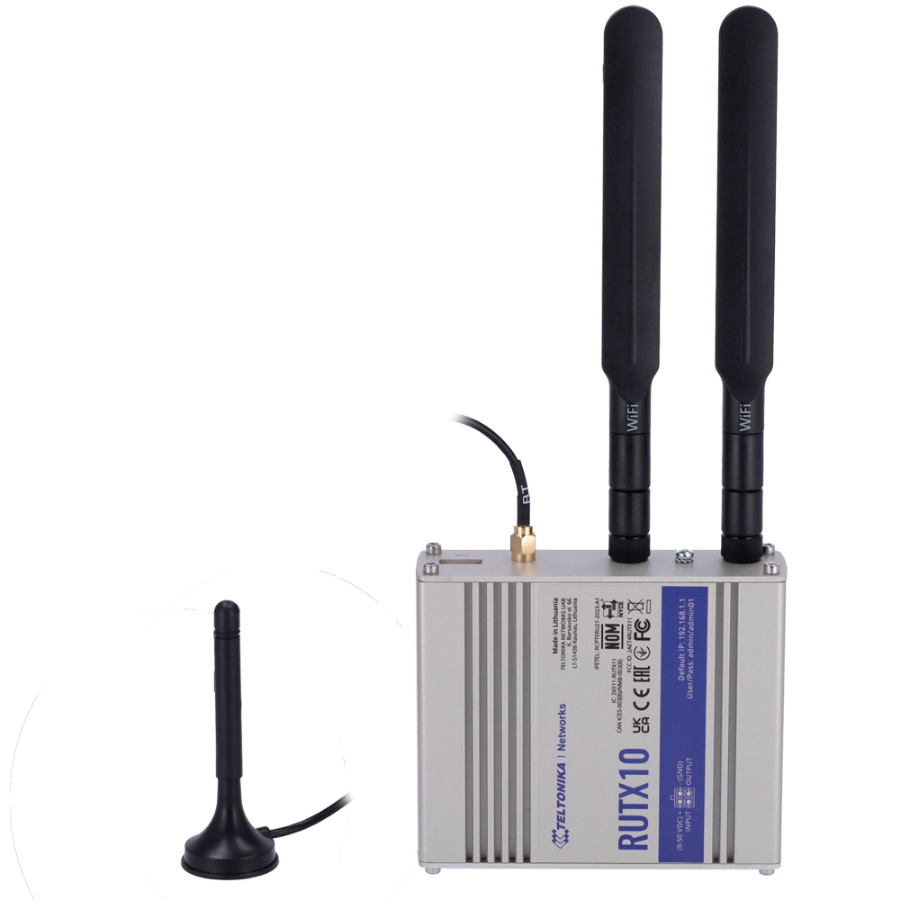

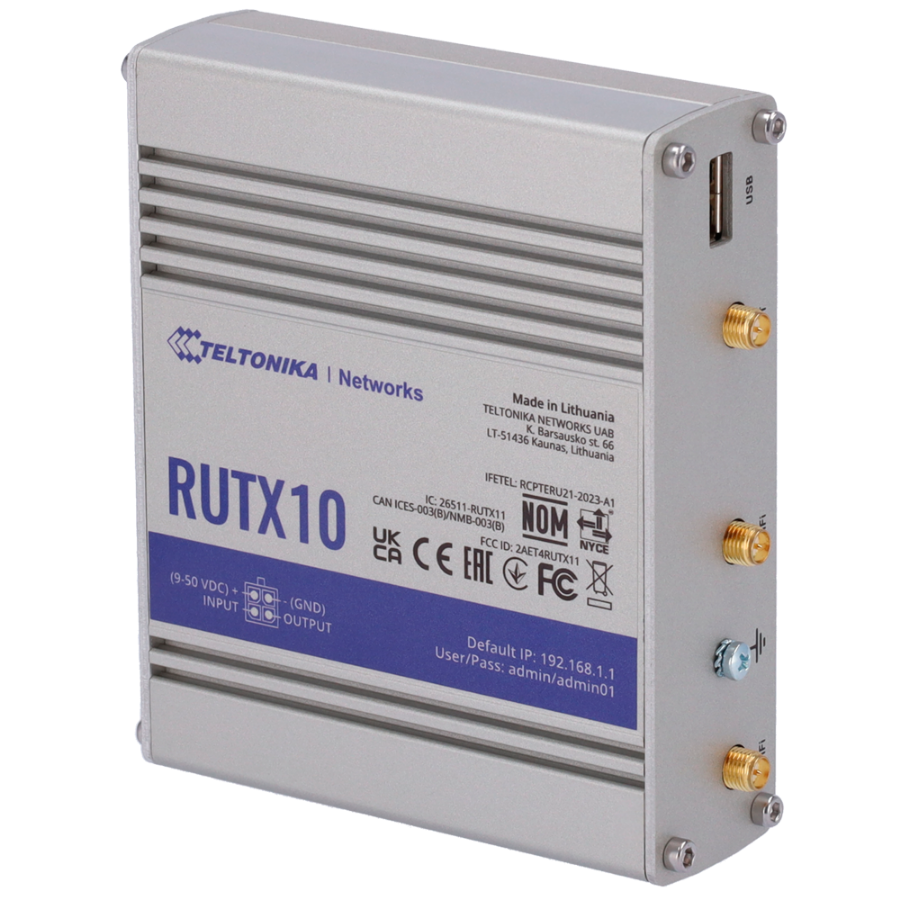

Teltonika Networks' RUTX10 is a versatile and robust industrial router, and its use cases are quite broad, especially in industrial and enterprise environments. Ideal for:
Industrial automation
Transportation and fleet management
Networks for Smart Cities
Security cameras and remote surveillance
Rural or remote environments
Offers outstanding remote management features (RMS) and VPN functionality.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
