| Brand | Teltonika |
| Device | Industrial 4G Router |
| Ethernet | 2 Ethernet ports RJ45 10/100Mbps (1 WAN + 1 LAN) |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128MB DDR2 |
| Flash | 32MB |
| External storage | Micro SD ( up to 2TB ) |
| Wi-Fi features | 802.11b/g/n 2.4GHz (AP Mode and STA Mode) |
| Type of 4G | Cat 4 to 150Mbps |
| Maximum Number of Wi-Fi Clients | 50 (Depending on traffic generated) |
| Operating system | RutOS (Based on OpenWRT) |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP,Wireguard, Zerotier |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging |
| RS232/RS485 | 1 x 6-pin terminal block |
| Power | DC connector 2 Industrial pins 9~57V Power Supply IncludedStandard Poe 802.3af (12.94 W) and Passive Poe (16 - 57 VDC) on Lan port |
| Material | Aluminium |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Dimensions | 25 (Al) x 83 (W) × 83 (D) mm |
| Weight | 132 g |

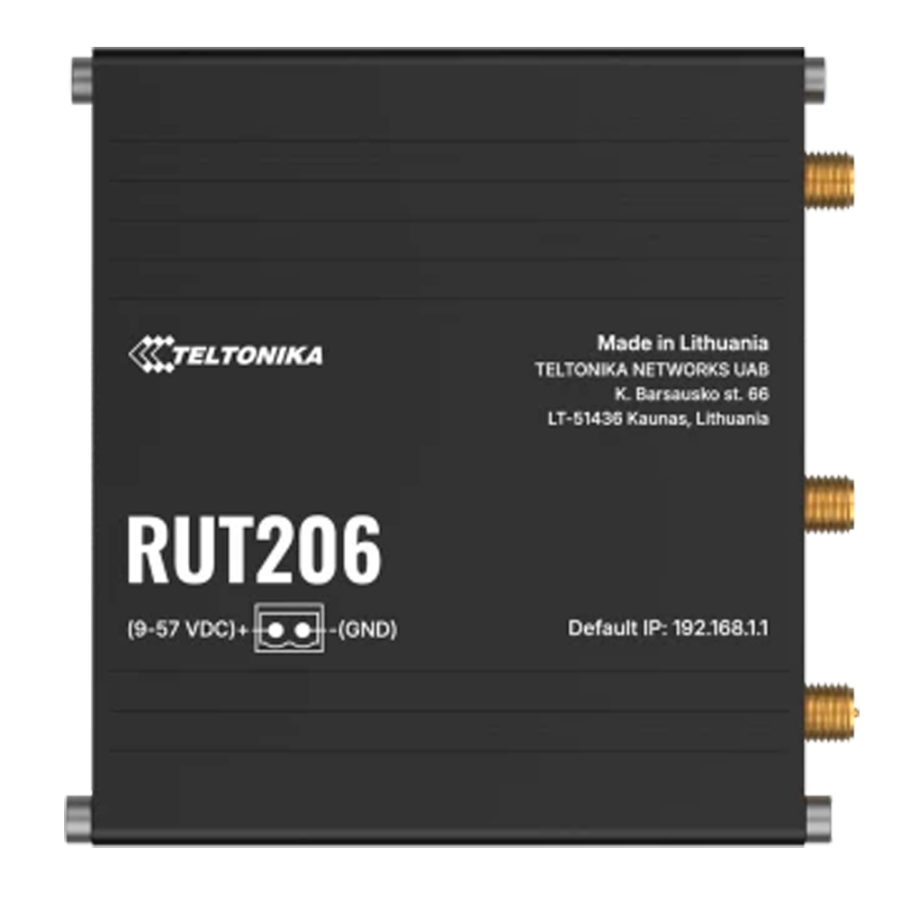

The RUT206 is a compact industrial router that supports RS232 and RS485, serial interfaces along with active and passive PoE inputs. Its rugged design, 2 pin power input and expandable data storage via a microSD slot make it an ideal choice for a range of IoT and M2M applications. This 4G Cat 4 router includes RutOS open source software and supports key industrial protocols such as Modbus, DNP3 and DLMS.
Offers outstanding remote management features (RMS) and VPN functionality.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
