| Brand | Teltonika |
| Device | Industrial Router |
| Wi-Fi | Wi-Fi 4 802.11n 2.4GHz |

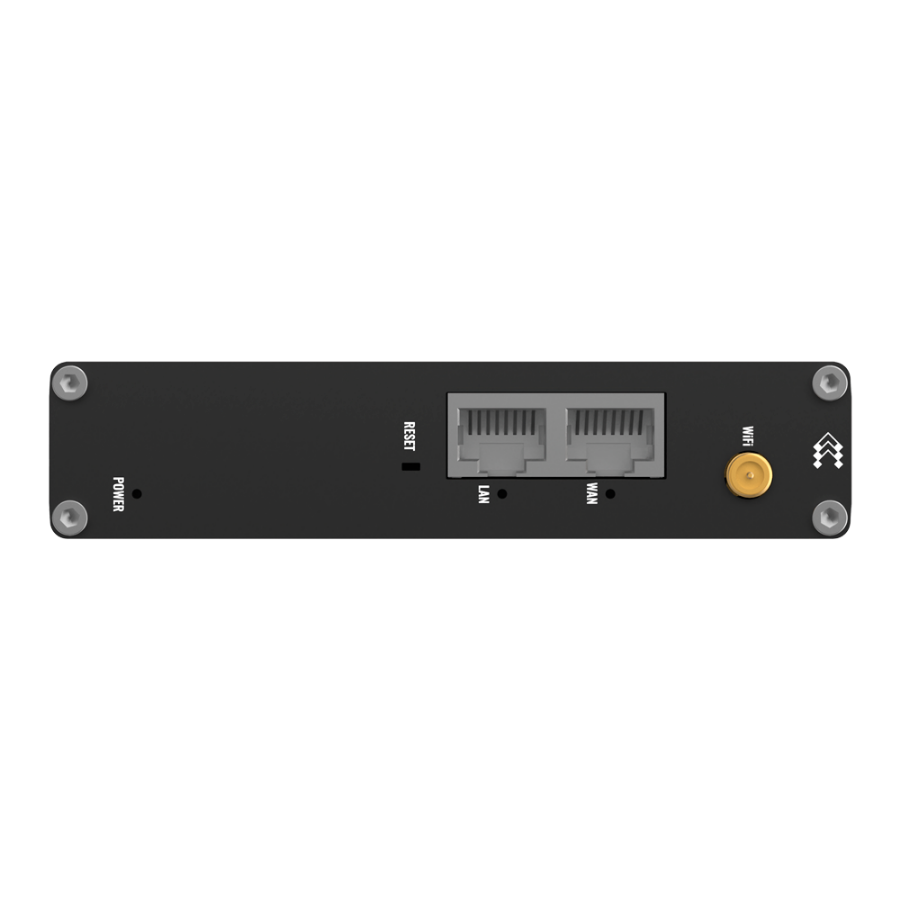

| Ethernet | 2 Fast Ethernet ports RJ45 10/100 (1 WAN + 1 LAN) |
| Antenna connectors | WiFi (antenna not included) |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB DDR2 |
| Flash | 16MB serial NOR flash |
| Operating system | RutOS (Based on OpenWRT) |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet,SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| Routers | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier, Tinc |
| Monitoring and Management | WEB UI, CLI, FOTA, SSHv1,SSHv2, EMAIL, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud Solutions | RMS, Azure IoT Hub, Cloud of Things, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging, Port Forwarding, traffic rules, QoS, Wi-Fi WAN, Load Balancing, SSHFS, Firewall, OPC UA, MODBUS, DNP3, DLMS |
| Power | DC connector 3 Industrial pins 9~30V Power supply not included, Passive PoE power supply over port LAN1 |
| Material | Aluminium |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |
| Power consumption | Standby: < 1 W / Max: < 2 W |
| Degree of protection | IP30 |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit (additional kit required) |
| Dimensions | 25 (Al) x 113,10 (W) × 68,6 (D) mm |
| Weight | 142,3 g |

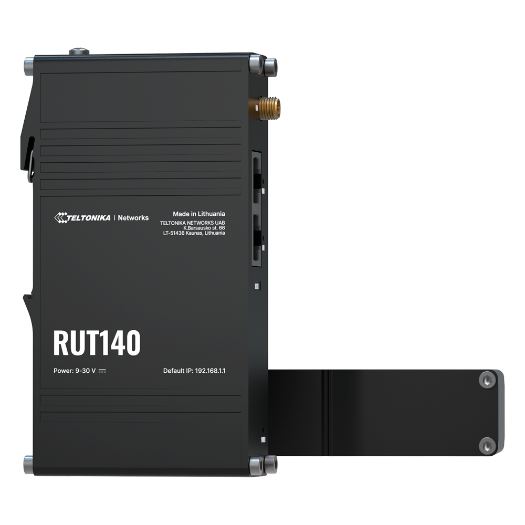

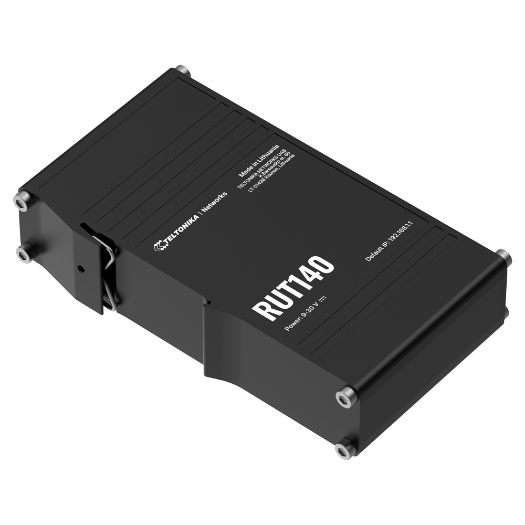

Teltonika's TK-RUT140 router is ideal for a variety of industrial and commercial applications. In industrial automation, its durability and ability to operate in harsh environments make it perfect for managing communication between machines and control systems. In the transport and logistics sector, it can manage the communication and tracking of vehicle fleets, ensuring secure and efficient data transmission. In addition, it is useful for Internet and telecommunications service providers who need a robust device to manage connections in remote or hard-to-reach areas
Offers outstanding remote management features (RMS) and VPN functionality.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
