| Brand | Teltonika |
| Device | Router 5G Outdoor industrial |
| Ethernet | 2 Ethernet ports RJ45 10/100/1000Mbps (2x WAN/LAN) |
| PoE characteristics | 802.3af Alternative B |
| Dual SIM format | 2 x Mini SIM - 2FF |
| CPU | MediaTek, Dual-core, 880 MHz, MIPS1004Kc |
| RAM | 256MB DDR3 |
| Flash | 16 MB serial NOR flash, 256 MB serial NAND flash |
| LTE | 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE – LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL |
| Operating system | RutOS (Based on OpenWRT) |
| Routing protocols | BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routes |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP ,Telnet , SMPP, SNMP, MQTT, Wake On Lan (WOL), OPC UA, Azure MQTT, DNP3, DLMS |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, MODBUS |
| Cloud Solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging |
| Internal antennas | 4 x internal antennas4 x 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 ?, VSWR <3.5, gain <4.9 dBi, omnidirectional |
| Alimentación | PoE In 802.3af/at (42.5–57.0 VDC), protección contra polaridad inversa, protección contra sobretensiones |
| Material | Plástico (PC/ASA) |
| Temp. Funcionamiento | -40o C ~ +75o C |
| Humedad funcionamiento | 10 ~ 90 % (no condensante) |
| Kit de Montaje Opcionales (No incluidos) | Anclaje para montaje en poste incluido |
| Dimensiones | 49.30 (Al) x 110 (An) × 235 (Fo) mm |
| Peso | 385 g |
| Consumo eléctrico | En reposo: < 2.5 W / Max: < 9 W / PoE Máximo < 24 W |

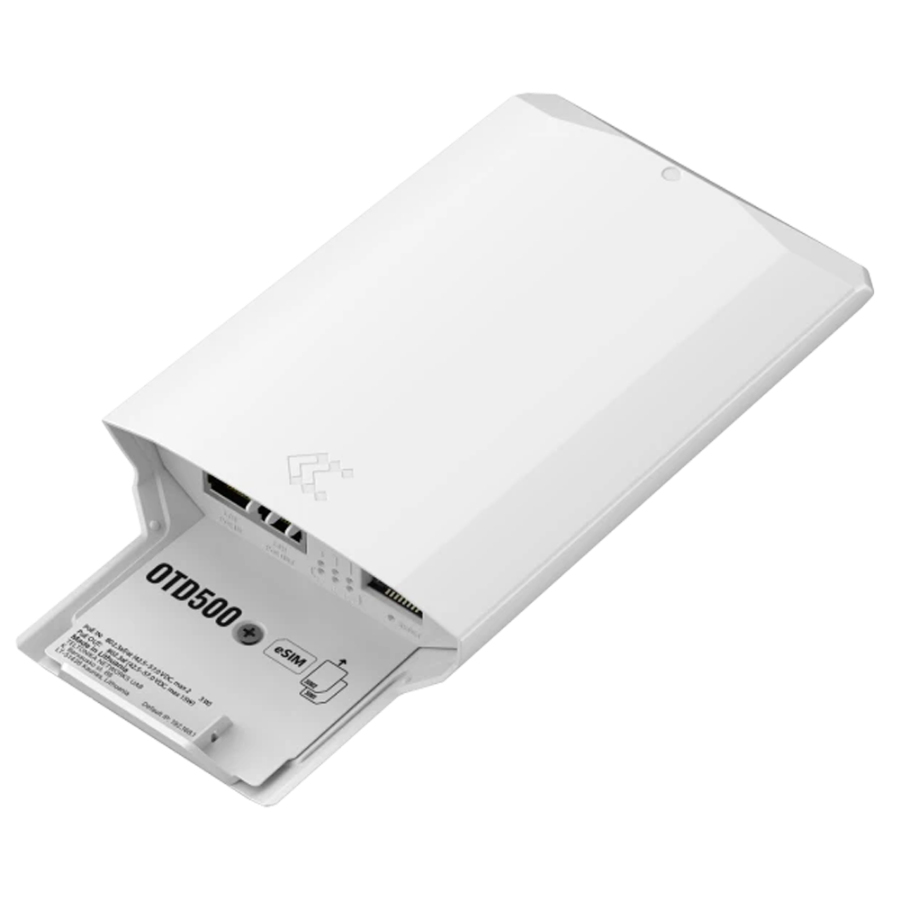

The OTD500 outdoor router is designed to provide reliable, high-speed connectivity with 5G, features making it ideal for demanding outdoor network environments. With a IP55 rated rugged plastic housing and integrated mounting bracket, the OTD500 is built to withstand harsh outdoor conditions while offering next-generation 5G connectivity and eSIM compatibility for seamless network access.
Offers outstanding remote management features (RMS) and VPN functionality.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
