| Brand | Teltonika |
| Device | Router 4G Outdoor industrial |
| Ethernet | 2 Ethernet ports RJ45 10/100Mbps (2x WAN/LAN) |
| PoE characteristics | 802.3af Alternative B |
| Dual SIM format | 2 x Mini SIM - 2FF |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128MB DDR2 |
| Flash | 16MB |
| Type of 4G | Cat 4 to 150Mbps |
| Operating system | RutOS (Based on OpenWRT) |
| Routing protocols | BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routes |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP ,Telnet , SMPP, SNMP, MQTT, Wake On Lan (WOL), OPC UA, Azure MQTT, DNP3, DLMS |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, MODBUS |
| Cloud Solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging |
| Internal antennas | 1 x 698 - 960 / 1710 - 2690MHz, 50 ?, VSWR <3.5, ganancia <3 dBi, omnidirectional1 x 698 - 960 / 1710 - 2690MHz, 50 ?, VSWR <3, ganancia <4.5 dBi, omnidirectional |
| Alimentación | PoE In 802.3af/at (42.5–57.0 VDC), protección contra polaridad inversa, protección contra sobretensiones |
| Material | Plástico (PC/ASA) |
| Temp. Funcionamiento | -40o C ~ +75o C |
| Humedad funcionamiento | 10 ~ 90 % (no condensante) |
| Kit de Montaje Opcionales (No incluidos) | Anclaje para montaje en poste incluido |
| Dimensiones | 49.30 (Al) x 110 (An) × 235 (Fo) mm |
| Peso | 855 g |
| Consumo eléctrico | En reposo: < 2.5 W / Max: < 6 W / PoE Máximo < 21 W |

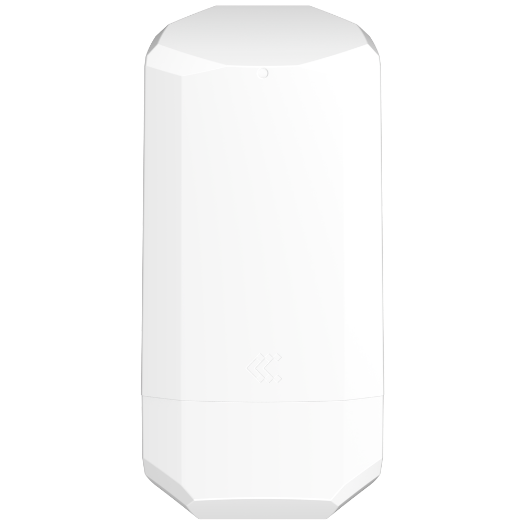

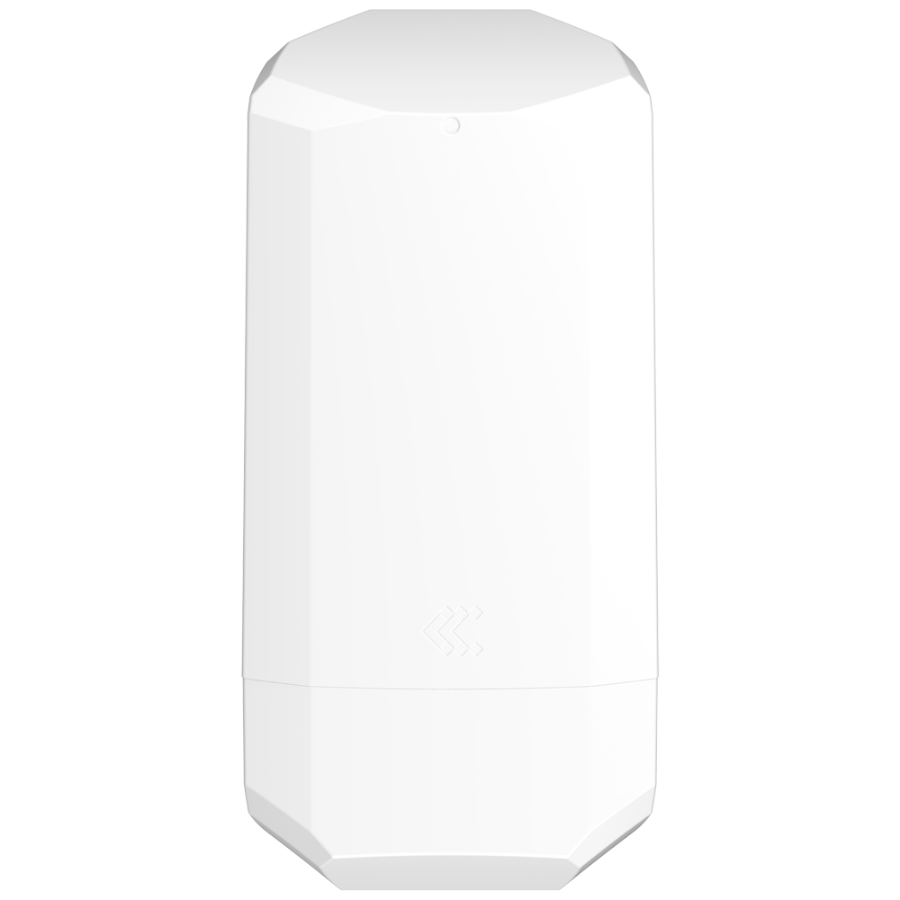

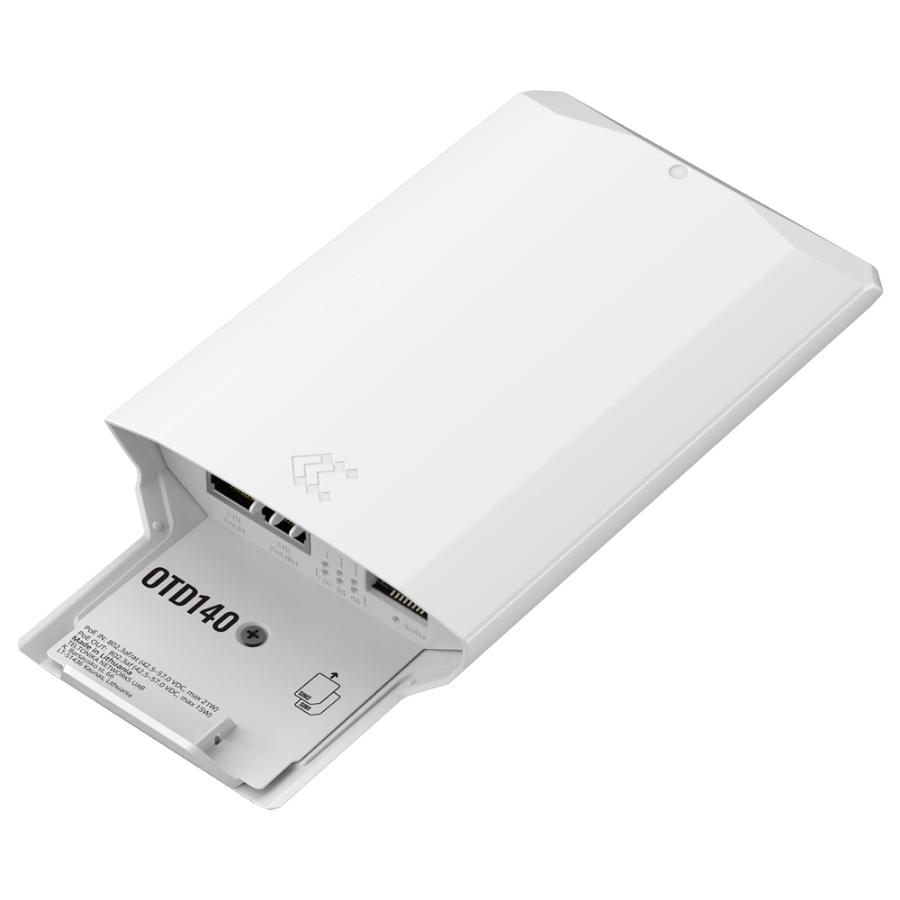

The TK-OTD140 is an 4G Industrial Outdoor Router ideal for
Construction sites
Reliable connectivity for portable offices, trailers and CCTV cameras in rainy and dusty environmental conditions
Campgrounds and RV parks
Convenient connectivity for campers, parks and
motor homes and all other outdoor explorers
Remote outdoor surveillance
Suitable for all types of remote outdoor projects monitoring solar panels, pipelines, agricultural fields, offshore installations, etc.
Offers outstanding remote management features (RMS) and VPN functionality.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
