TK-NTP001

Teltonika Industrial Ntp Server
Port RJ45 10/100Mbps
Ports RS232 and RS485

Brand: TELTONIKA

Šifra: TK-NTP001

145,80 EUR

Dostupno

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Brand	Teltonika
Device	Industrial Ntp Server
CPU	Mediatek, 580 MHz, MIPS 24KEc
RAM	128MB
Flash	16MB
Serial Ports	RS232 y RS485
Operating system	RutOS (Based on OpenWRT)
NTP	Server mode receives the GPS time and acts as an NTP server to transmit the time to other devices (Stratum 1)). Transmits the time via UDP or serial port (RS232, RS485).Time and date protocol via TCP/
ModBus	Supported modes: Server, ClientSupported connection types: RTU (RS232, RS485), TCPCustomized records: mODBUS TCP custom register block requests, which read/write to a file within the router and can be
MQTT Gateway	Allows sending commands to and receiving data from the MODBUS server through the MQTT intermediary.

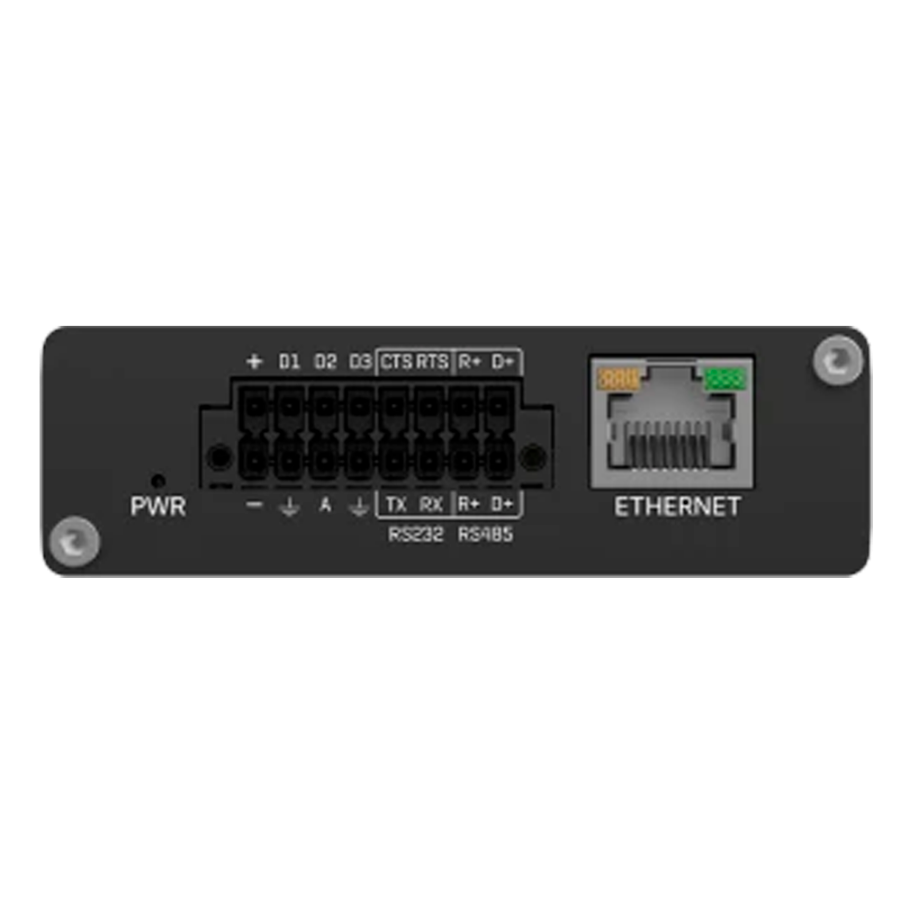

Serial port functions	Terminal block connector RS232: TX, RX, RTS, CTSTerminal block connector RS485: D+, D-, R+, R- (2 or 4 wires interface)
Positioning	GPS, GLONASS, BeiDou, Galileo and QZSS
Monitoring and Management	WEB UI : HTTP/HTTPS, status, configuration, firmware upgrade, CLI, troubleshooting, multiple event log servers, firmware upgrade availability notifications, event log, system log, kernel log, Internet
Power	Terminal Block Connector 16 Industrial Pins 9~30V ( power supply not included )
Material	Aluminium
Temp. operation	-40o C ~ +75o C
Operating Humidity	10 ~ 90 % (non-condensing)
Optional Mounting Kit (Not included)	Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit
Dimensions	25 (Al) x 83 (W) × 82,6 (D) mm
Weight	180 g
Inputs and Outputs	3 x Configurable Inputs/Outputs. Digital Input to 0 - 6 V is detected as low level, 8 - 30 V detected as high level. Open collector output, maximum output 30 V, 300 mA

Opis

The NTP001 is a Teltonika stratum 1 NTP server designed to synchronize accurate and traceable UTC time over public and private networks, without the need for Internet access. Thanks to its GNSS capabilities, this low-cost NTP server maintains accurate and traceable time according to UTC. Plug-and-play functionality, a wide variety of interfaces, including RS232 and RS485, and a robust security profile make NTP001 the perfect NTP server for your network.
