| Brand | Teltonika |
| Device | Industrial Access Point |

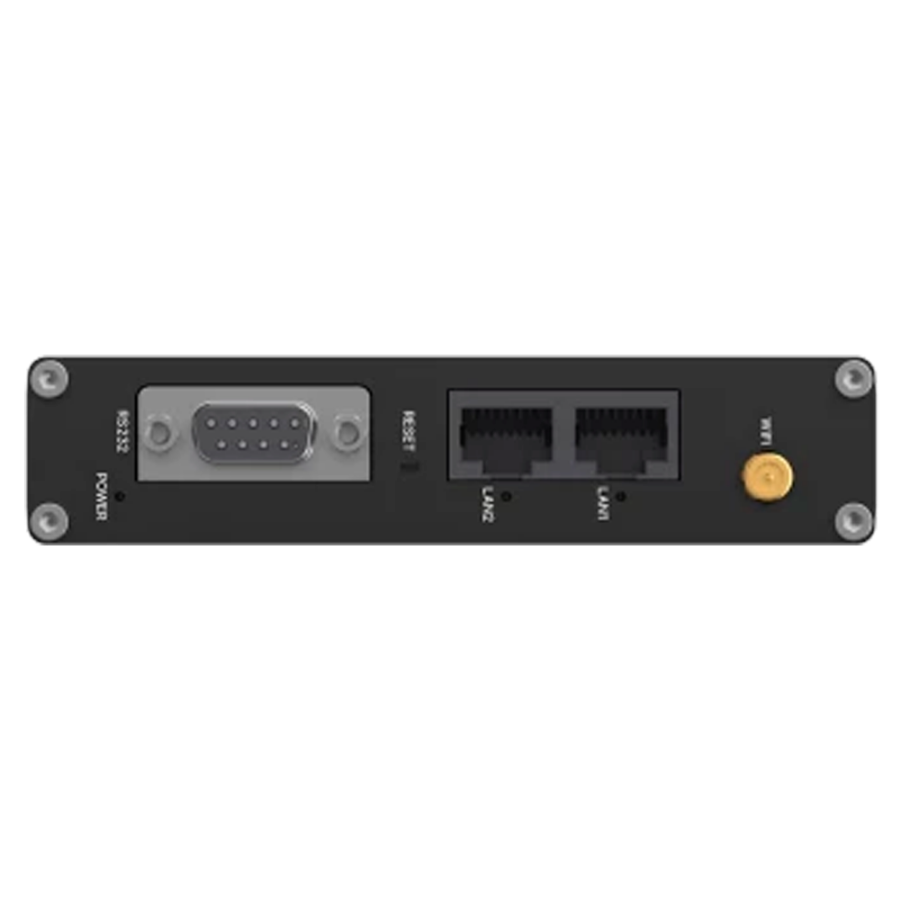

| Ethernet | 2 Ethernet ports RJ45 10/100Mbps (2 LAN) + Serial Port RS232 |
| CPU | Mediatek MIPS 24Kc 580 MHz |
| RAM | 128MB DDR2 |
| Flash | 16MB |
| Wi-Fi features | 802.11b/g/n 2.4GHz (AP Mode and STA Mode) |
| Maximum Number of Wi-Fi Clients | 50 (Depending on traffic generated) |
| Operating system | RutOS (Based on OpenWRT) |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, Zerotier, WireGuard, TailScale |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging |
| Inputs and Outputs | 1 x Digital Input, 0 - 5 V detected as low level, 8 - 30 V detected as high level1 x Digital Output, Open Collector Input, Maximum Output 30 V, 300 mA |

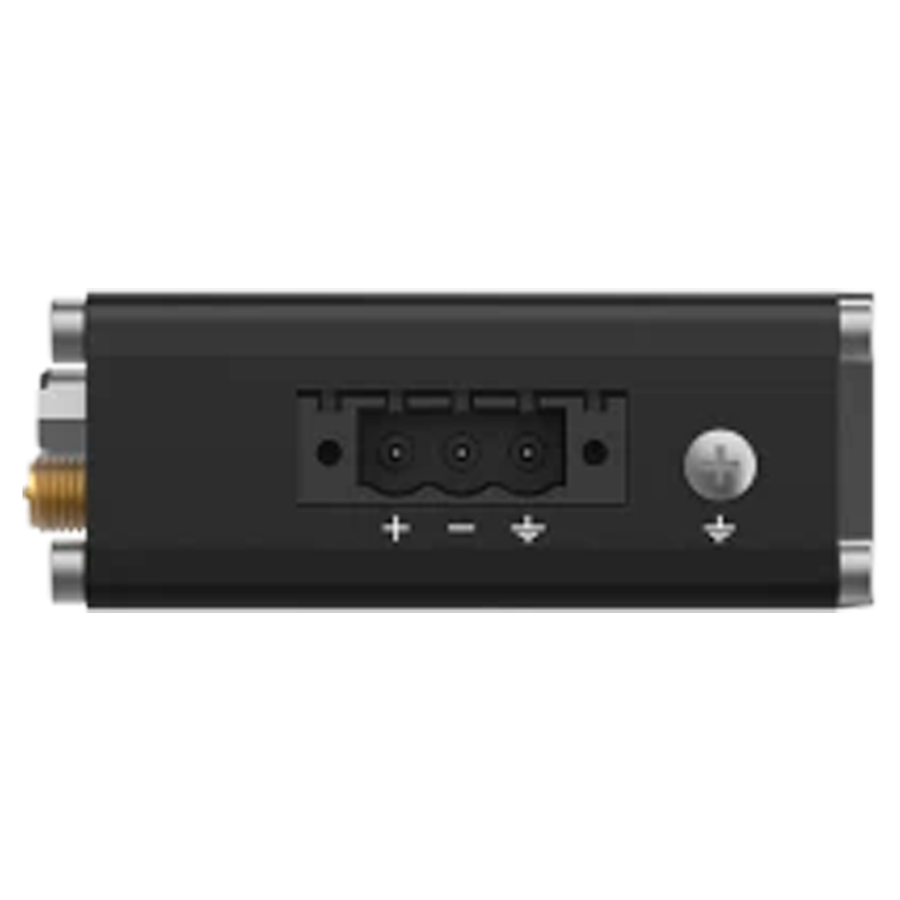

| Power | DC connector 4 Industrial pins 9~30V Power Supply Included |
| Material | Aluminium |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Dimensions | 25 (Al) x 113,1 (W) × 68,6 (D) mm |
| Weight | 142,3 g |

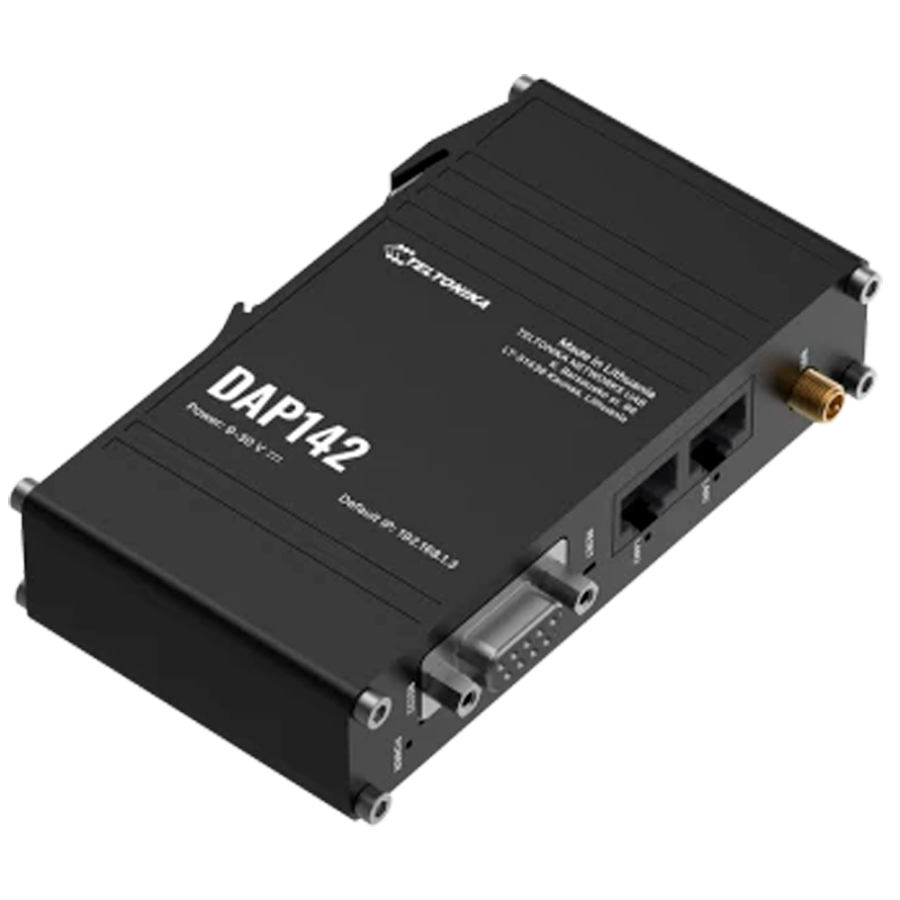

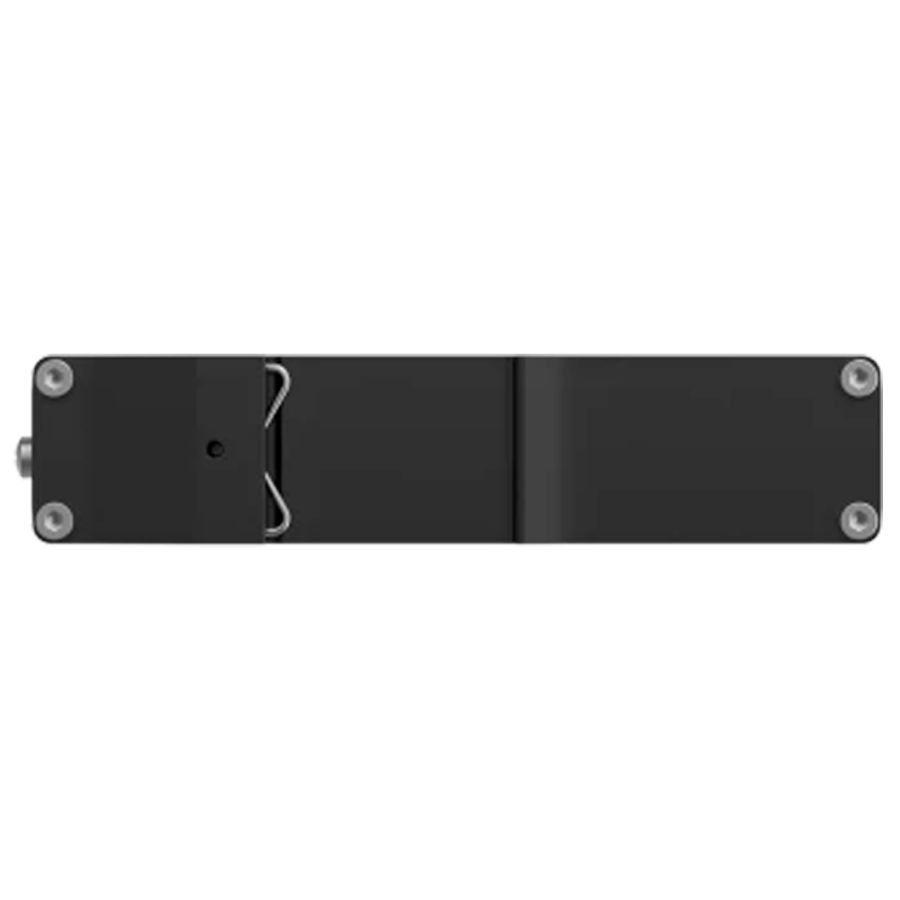

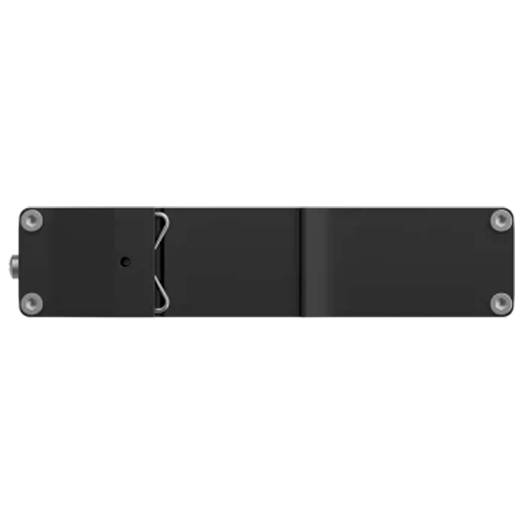

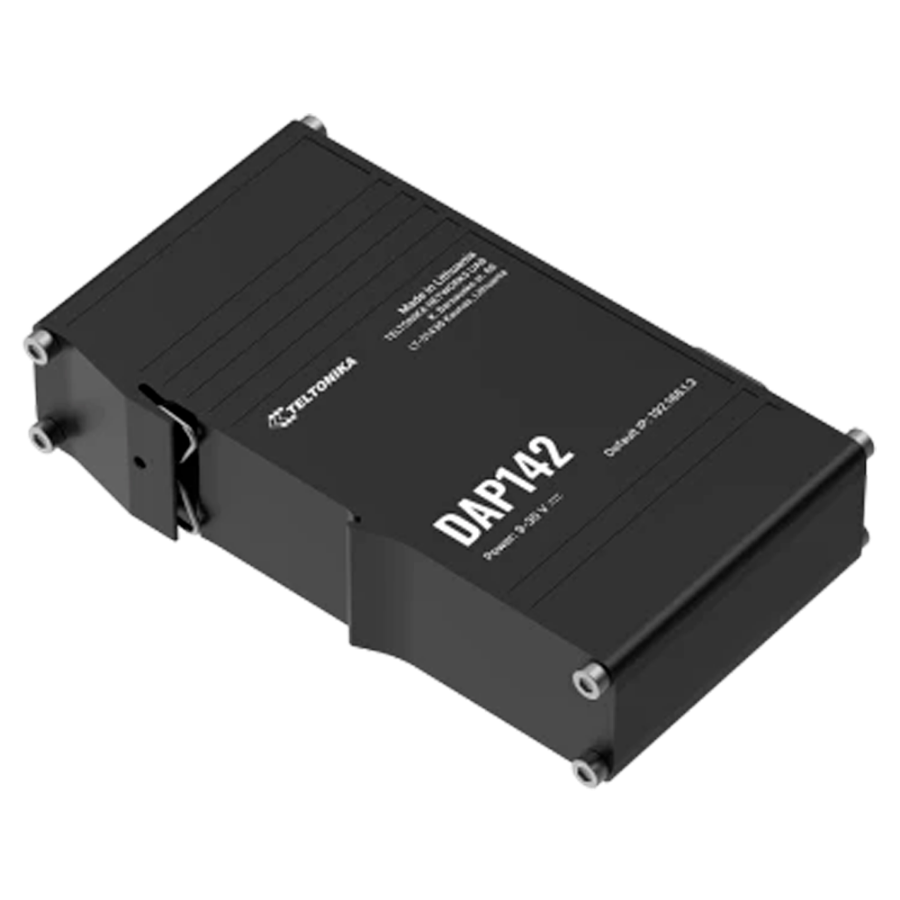

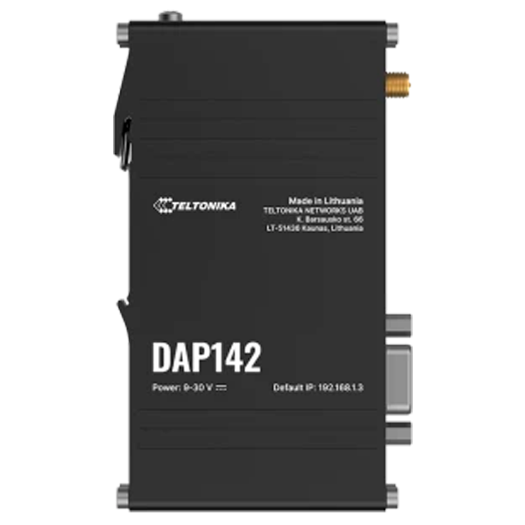

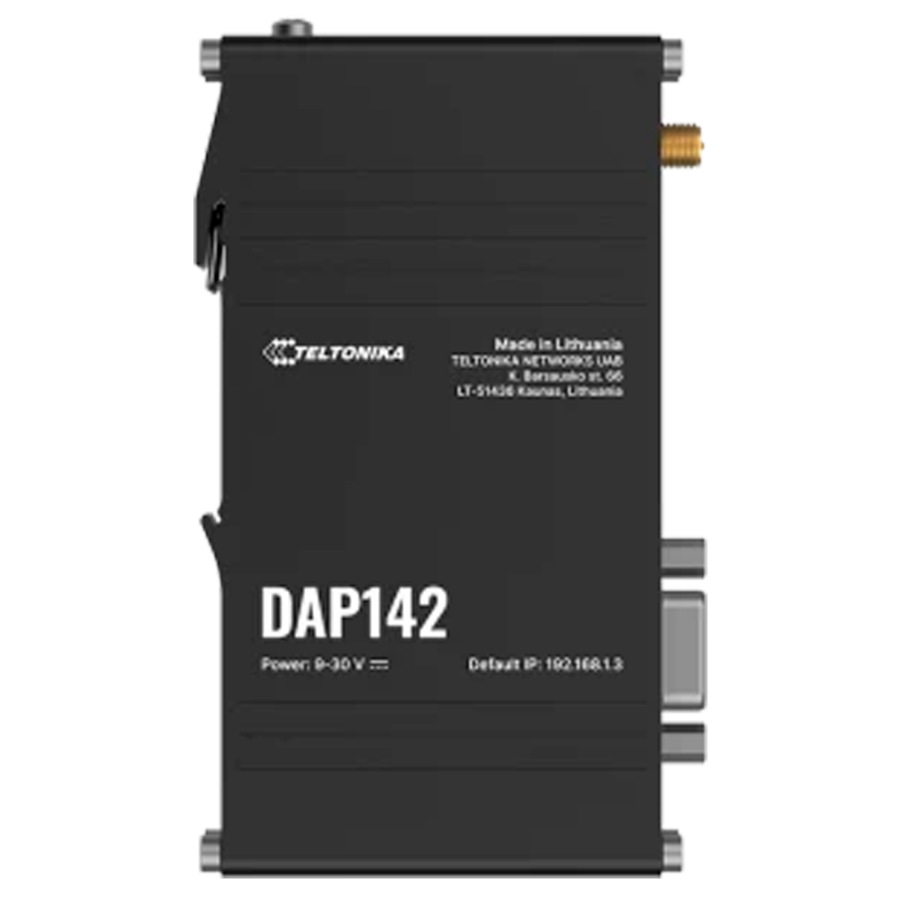

The Teltonika DAP142 is an industrial Wi-Fi access point designed to provide robust and reliable wireless connectivity in demanding environments. Its rugged design, with aluminum housing and DIN rail bracket, makes it ideal for industrial applications requiring durable and secure installation. This device is particularly useful in smart factories and industrial automation environments, where the interconnection of equipment is essential. Thanks to its support for Wi-Fi Mesh and Fast Roaming, it enables continuous and uninterrupted wireless coverage, facilitating the mobility of devices and operators within the plant. A distinguishing feature of the DAP142 is its RS232, port that allows direct connection to key industrial equipment, such as robotic arms and human-machine interfaces (HMI), facilitating the integration of legacy devices into the modern network. In addition, the DAP142 supports up to 50 simultaneous connections, making it suitable for environments with high device density. Its power supply through a 3 pin connector adapted for industrial use and its plug-and-play functionality simplify its implementation and configuration.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
