| Brand | Teltonika |
| Device | Industrial Access Point |

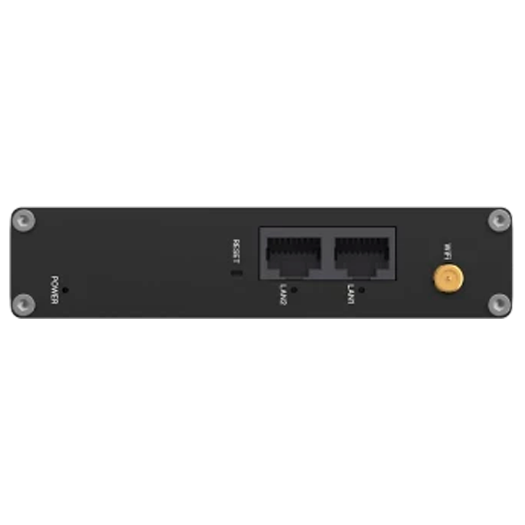

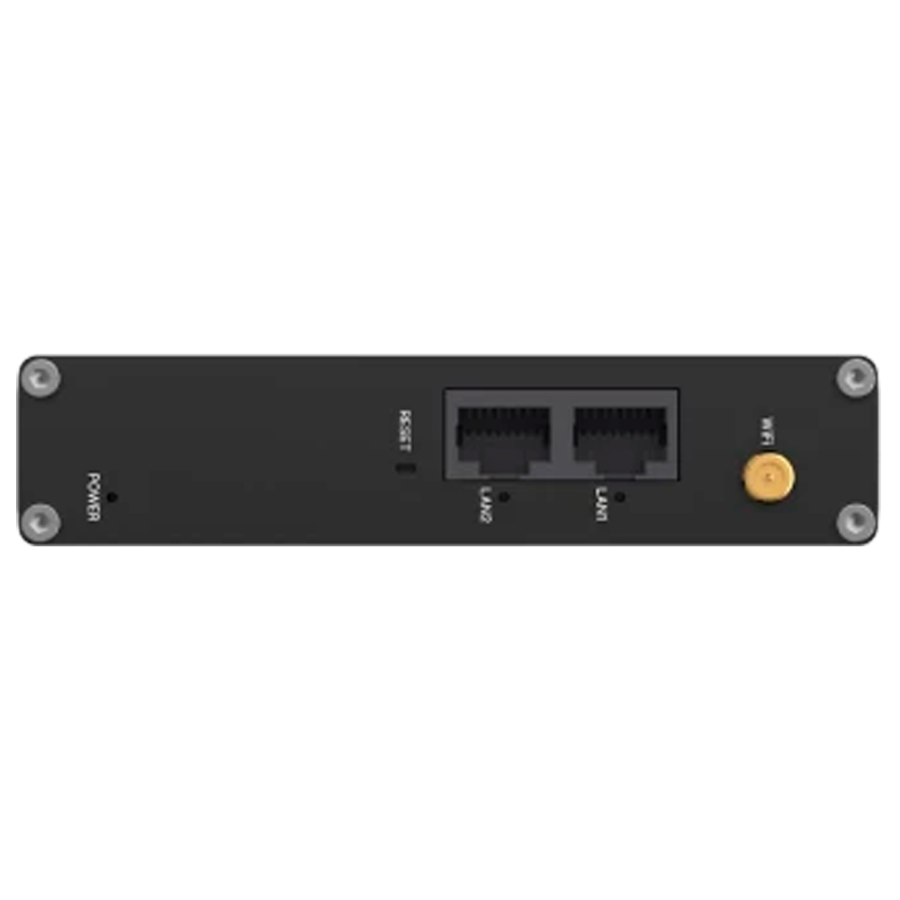

| Ethernet | 2 Ethernet ports RJ45 10/100Mbps ( 2 LAN) |
| CPU | Mediatek MIPS 24Kc 580 MHz |
| RAM | 128MB DDR2 |
| Flash | 16MB |
| Wi-Fi features | 802.11b/g/n 2.4GHz (AP Mode and STA Mode) |
| Maximum Number of Wi-Fi Clients | 50 (Depending on traffic generated) |
| Operating system | RutOS (Based on OpenWRT) |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, Zerotier, WireGuard, TailScale |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging |
| Inputs and Outputs | 1 x Digital Input, 0 - 5 V detected as low level, 8 - 30 V detected as high level1 x Digital Output, Open Collector Input, Maximum Output 30 V, 300 mA |

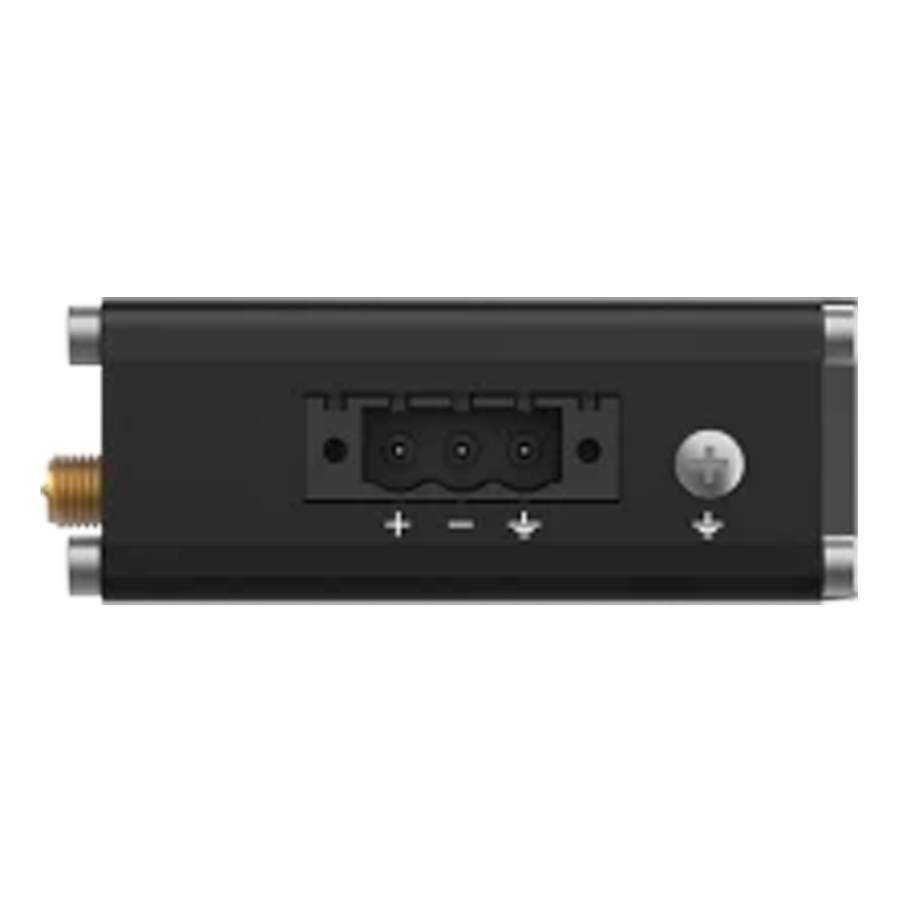

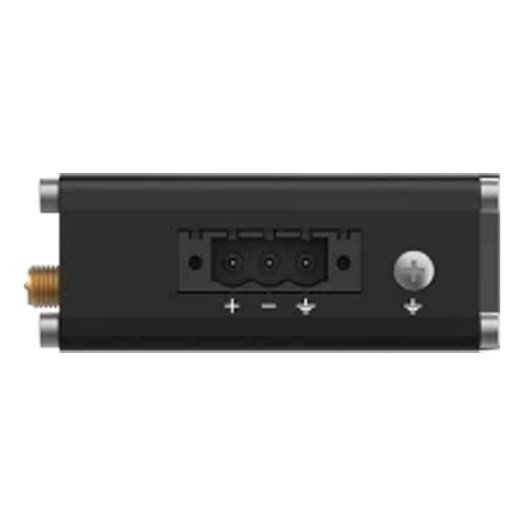

| Power | DC connector 4 Industrial pins 9~30V Power Supply Included |
| Material | Aluminium |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |

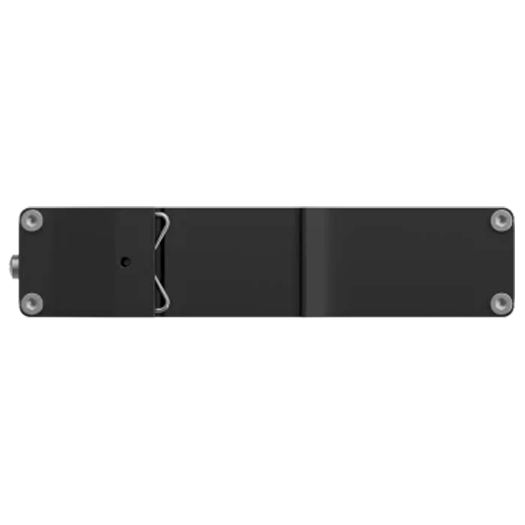

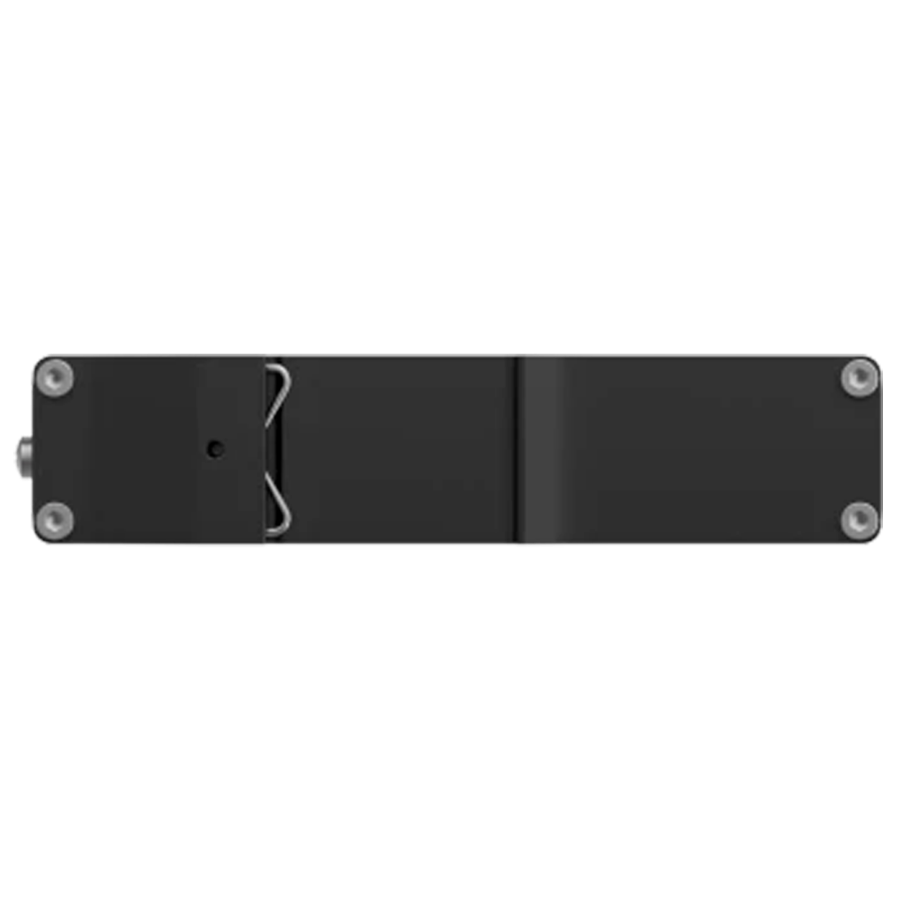

| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Dimensions | 25 (Al) x 113,1 (W) × 68,6 (D) mm |
| Weight | 142,3 g |

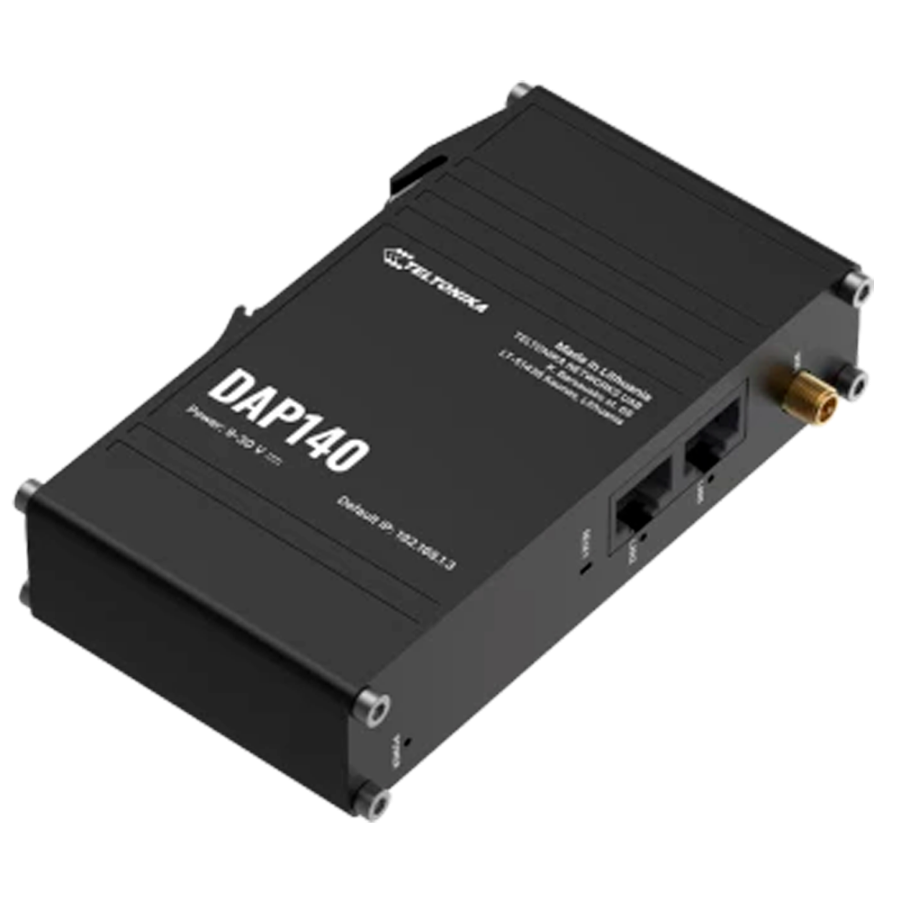

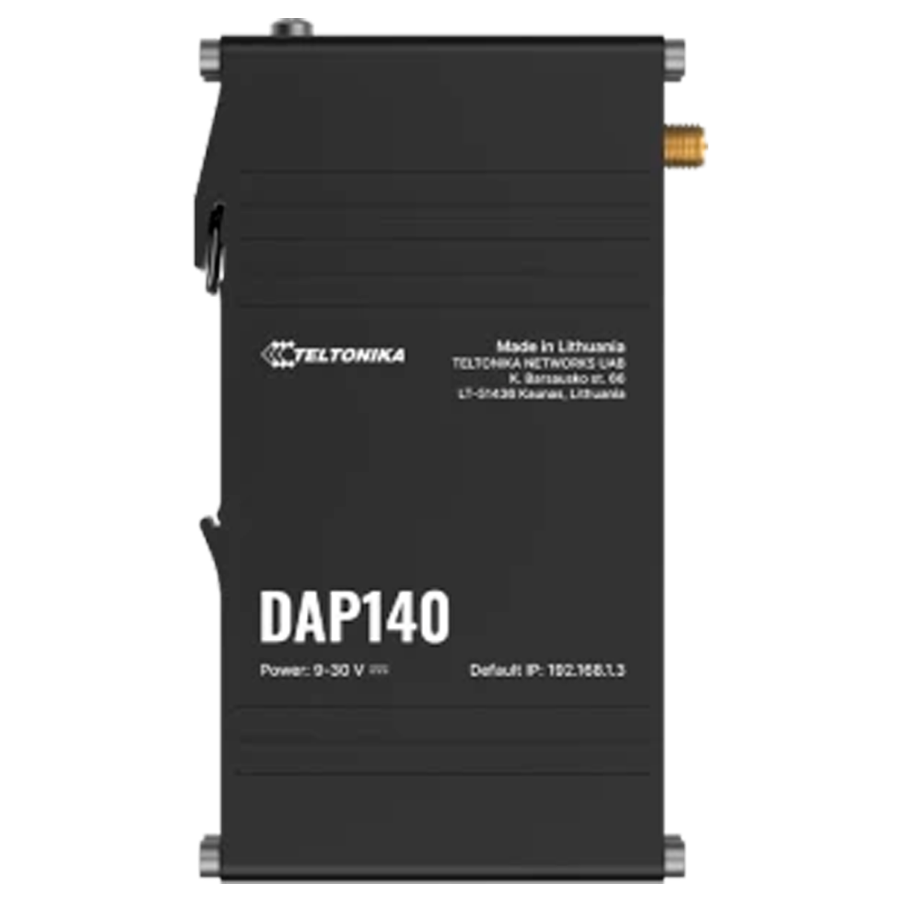

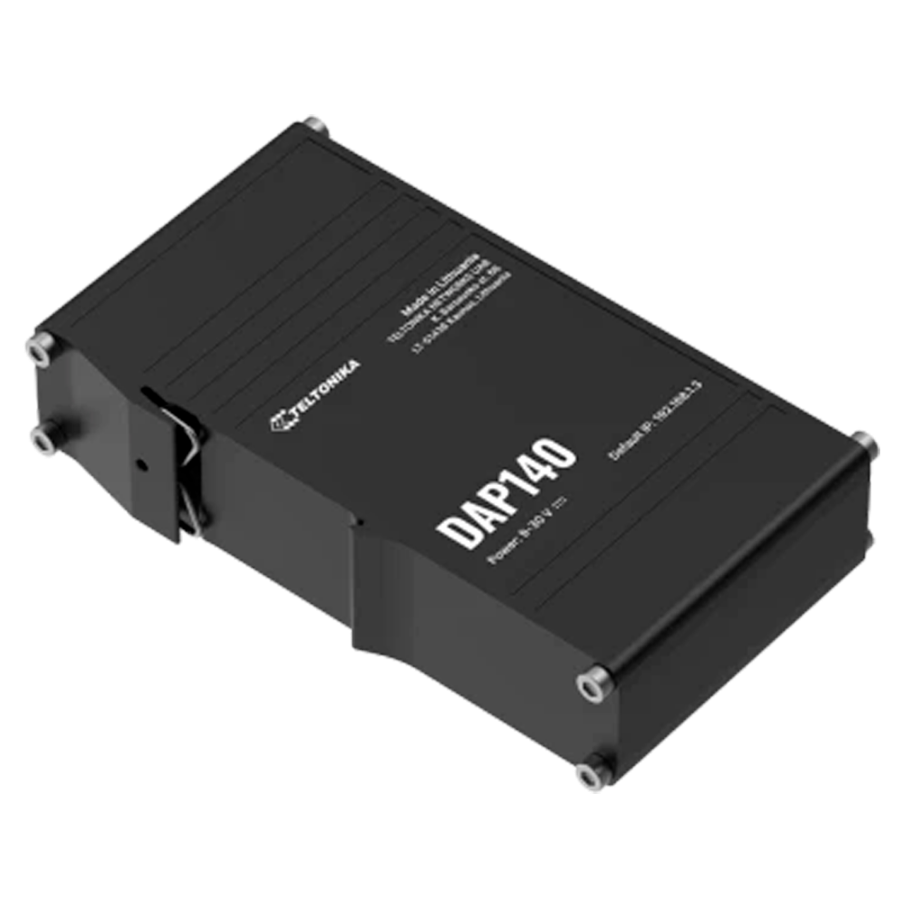

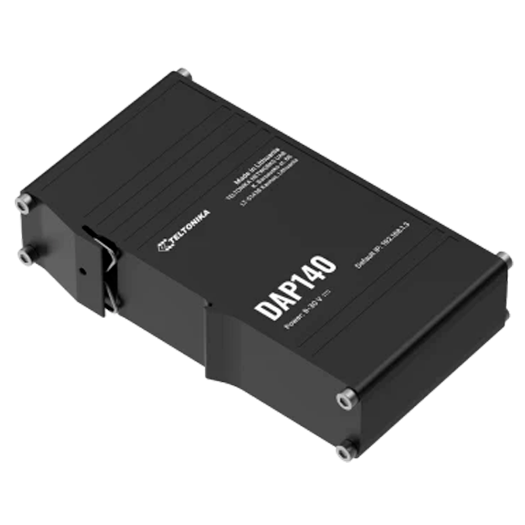

The Teltonika DAP140 is an industrial Wi-Fi access point designed for demanding environments where reliable wireless connectivity is critical. It is mainly used in smart factories, where it enables mesh Wi-Fi networks to connect industrial devices such as sensors, robots and automated vehicles. Thanks to its robust design, aluminum housing and wide operating temperature range (-40 °C to 75 °C), it is ideal for manufacturing plants, warehouses and outdoor environments. It also facilitates the implementation of industrial IoT solutions, enabling the collection and stable transmission of real-time data. Its ability to handle multiple simultaneous connections, along with features such as Fast Roaming and support for Wi-Fi Mesh, ensures continuous coverage for mobile or on-the-go devices. In addition, its flexible installation (including DIN bracket and passive PoE power supply) makes it especially useful for fast and efficient deployments in industrial infrastructures.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
