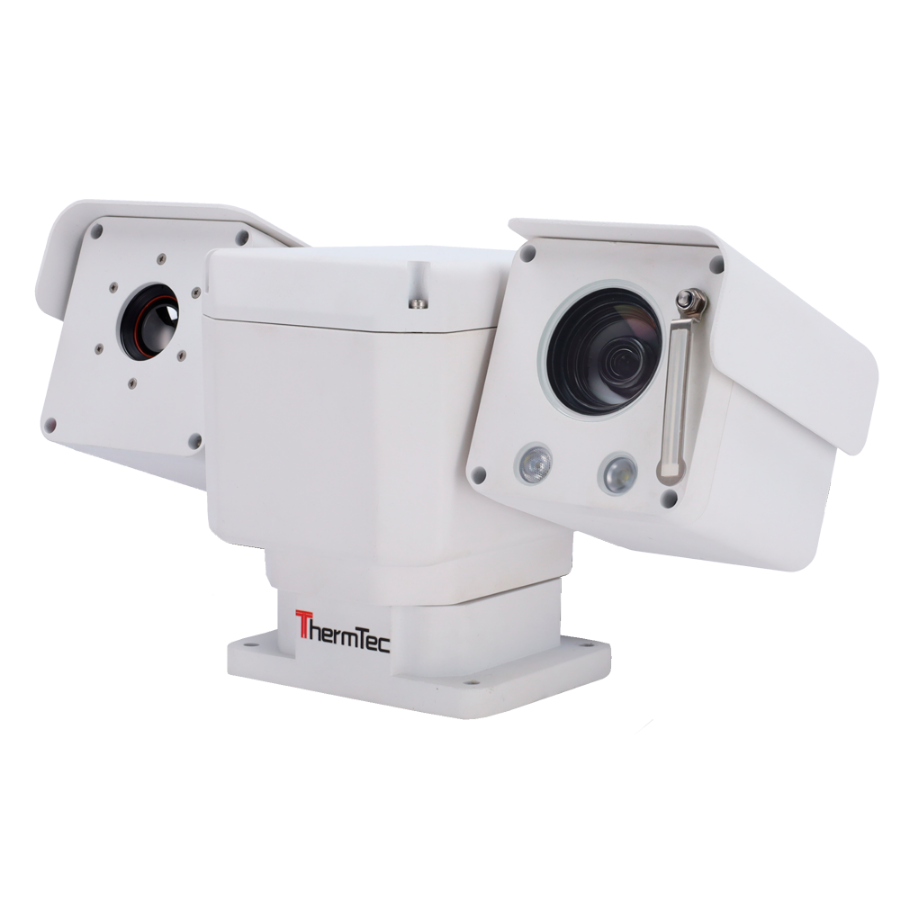

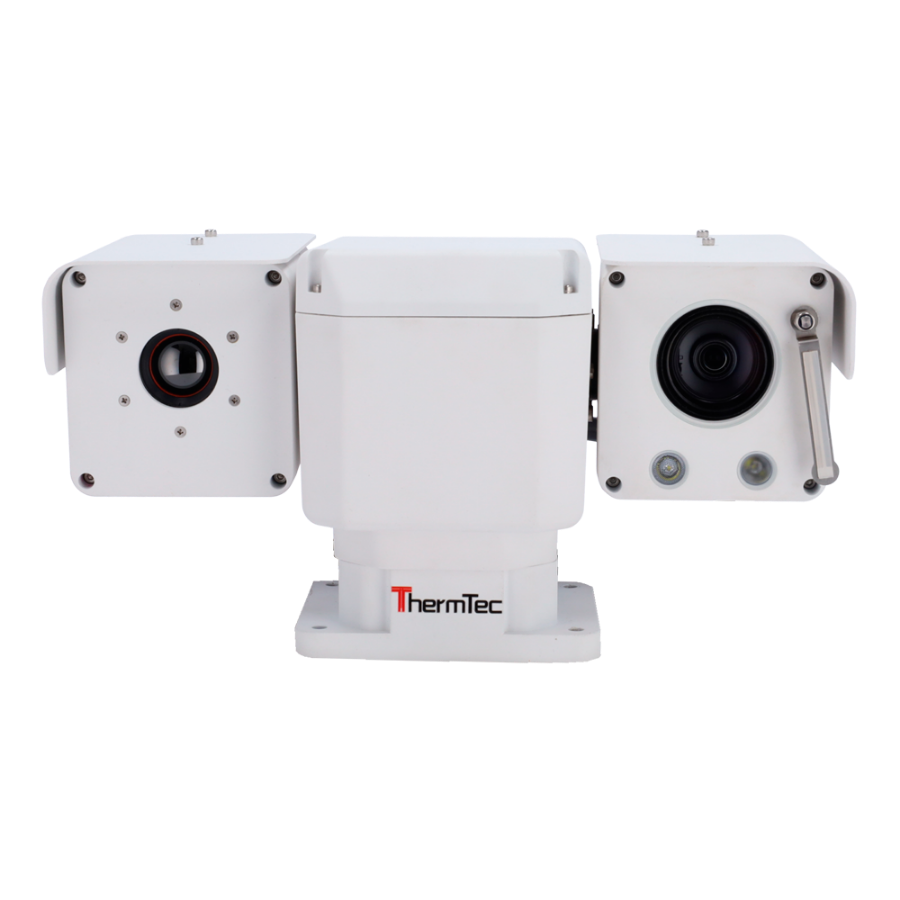

| Brand | ThermTec |
| Thermal sensor | 640x512/12µm VOx |
| Spectral range | 8 ~ 14µm |
| Optical sensor | 4 MPx 1/2.8" Progressive Scan CMOS |
| Main Stream rate | 1280x720, 768x576, 640x480, 384x288, 352x288 (25fps)(term) / 2592x1536, 1920x1080, 1280x720 (25fps)(vis) |
| Sub Stream Rate | 768x576, 640x480, 384x288, 352x288 (25fps)(term) / 1280x720, 768x576, 640x480 (25fps) (vis) |
| Compression | H.265 / H.264 |
| Lens | 25mm (term) / 16mm (vis) |
| Angle | H: 17,5o (term) / H: 21° (vis) |
| Thermal sensitivity | ?35mK |
| Range of Detectable Temperatures | -20 ? to 150 ? ( from -4 ? to ? 302 ) |
| Accuracy | ± 8oC |
| Image improvements | AGC, NUC, IDE, HDE, DNR |
| Detection ranges | Human detection (1.8x0.5 m): 1042 mDetection of vehículo(4x1.4 m): 2917 mHuman Recognition (1.8x0.5 m): 261 mVehicle recognition (4x1.4 m): 729 mPerson ID (1.8x0.5 m): 130 mVehicle identification (4x1 |
| Intelligent functions | Temperature detection, motion detection |
| Alarms | 1 Output / 1 Input |
| Network interface | 1x Ethernet 10/100M BaseT |
| Remote access | WEB interface, VMS |
| Interoperability | ONVIF, SDK, CGI |
| Power | 12 VDC / 15W |
| Temp. operation | -20o C ~ +60o C |
| Degree of protection | IP66 |
| Dimensions | 400mm×150mm×105mm |
| Weight | ?2.2Kg |
