| Brand | ThermTec |
| Range | HM2 |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 256 x 192 |
| Pixel Pitch | 12µm |
| Thermal lens | 7mm |
| Thermal sensitivity | ?35mK |
| Thermal measurement range | -20oC~150oC / ±2oC |
| Spectral range | LWIR 8~14µm |
| Thermal viewing angle | 24,8° (H) x 18,6° (V) |
| Visible sensor | 1/2.8" Progressive Scan CMOS |
| Visible sensor resolution | 2592 x 1536 (4Mpx) |
| Visible lens | 6mm |
| Infrared illuminator | 20m. maximum |
| Main Stream rate | Visible: 25fps (2592×1536, 1920×1080, 1280x720)Thermal: 25fps (768x576, 640x480, 384x288, 352x288) |
| Sub Stream Rate | Visible: 25fps (1280x720, 768x576, 640x480, 352x288, 256x192)Thermal: 25fps (768x576, 640x480, 384x288, 352x288) |
| Compression | H.265 / H.264 |
| VCA | Motion detection, line crossing, intrusion, area entry/exitFire detection and temperature measurement |
| Temperature rules | Point, line and area, multiple rules simultaneously |

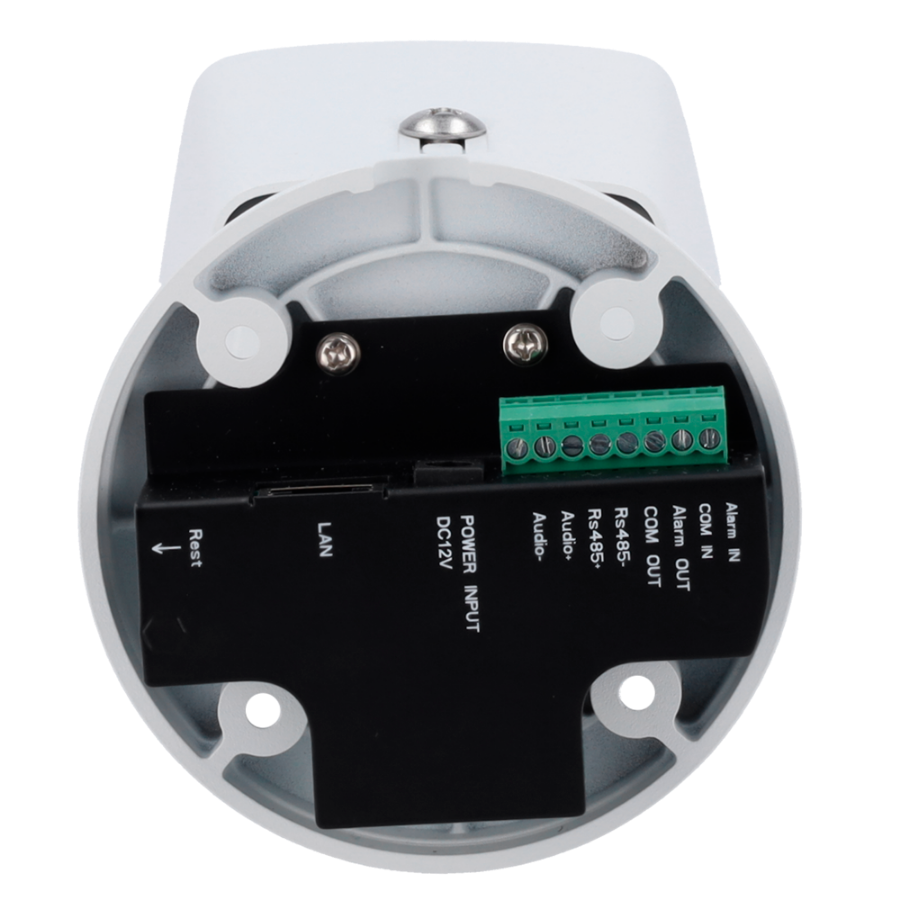

| Alarms | 1 input / 1 relay |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web browser, Thermtec VMS software |
| Interoperability | ONVIF, API, SDK |
| Power | DC 12V, 3W max.PoE IEEE802.3af |
| Temp. operation | -20oC~+75oC, <95% RH |
| Grado de protección | Impermeable IP66TVS 6000V protección rayos |
| Dimensiones | 277mm × 92mm × 90mm |
| Peso | ?1.6Kgr |
