| Device name | TFPS-5 |
| Description | Power supply group 28V DC 5A DC [%VAR%] |
| Communication protocol | FIRE-SPEED |
| Address | 2 rotary selectors |
| Frequency of interrogation | 2 levels |
| Communication WITNESS | Signaling that can be excluded |
| No network signaling | May be delayed |
| Power | From loop |
| Nominal voltage | 24VDC |
| Operating voltage | 18V...30VDC |
| Line separator | Intelligent isolator (no device loss) |
| Modular power supply | 28V DC 5A (switching fl yback) |
| Power supply current | 230V AC +10% -15% 50Hz |
| Maximum absorbed current | 700mA AC |
| Assignable batteries | 2 da 12V/17Ah (connected in series) |
| Current for battery charger | Maximum 1,5A |
| Reverse polarity protection | Fuse 5A 250V FAST 5x20 LBC |
| Battery disconnection | Automatic with voltage lower than 18V |
| Flammability class | V-2 or higher |
| Internal resistance | 1.5 Ohm |
| Outputs power supply users | 3 independent (protected by polyswitch) |
| Power supply current outputs | 27,6V DC ±1,5% (t. environment 23o C) |
| Maximum current deliverable outputs | 3 x1,1A a 27,6V DC |
| Ripple maximum load | ?150mVpp |
| Exercise temperature | -5°C...+40°C |
| Relative Humidity | 10%...93% (in absence of condensation) |
| Degree of protection | IP30 |
| Container | Metallic |
| Dimensions (L x W x D) | 320 x 365 x 170mm |
| Weight | 7,6Kg |
| Standards | EN 54-4:1997+A1:2002+A2:2006 - EN 54-17: 2005 |
| Certification number | 0051-CPR-0432 |
| Year of CE marking | 14 |
| Benefit statement number | 001_TFPS-5 |
| Certification body | IMQ |

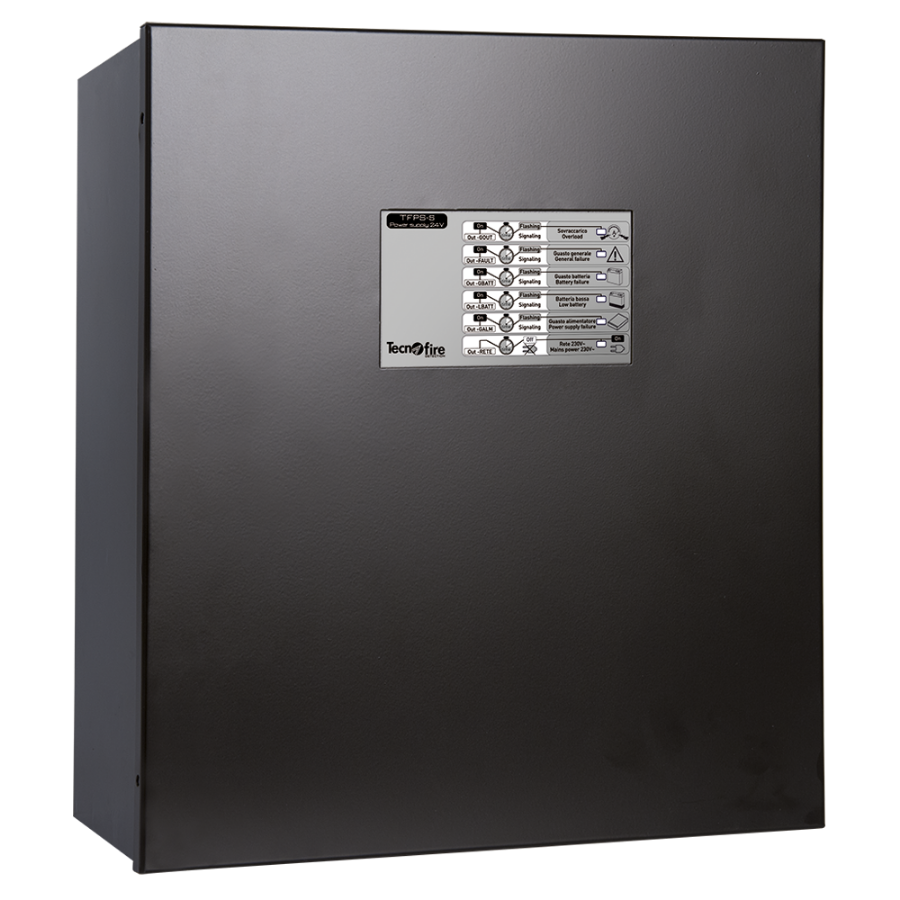

Additional addressable power supply for 5A fire detection and signaling systems.
It has 3 independent and protected 1,1A outputs, fault signaling relay output, housing for 2 backup batteries of 12V 17Ah and front with 6 status LED.
Complete RSC® device management: programming, remote management and control of all operating parameters.
Line separator with double insulator.
EN 54-4:1997 + A1:2002 + A2:2006 - EN 54-17:2005.
Approval certificate 0051-CPR–0432.
