| Device name | TFM05-HP (TFM05-LP) |
| Description | Module 5 outputs |
| Communication protocol | FIRE-SPEED |
| Address | 1 rotary-switch + 1dip-switch - 1 address for each output (máx.5) |
| Frequency of interrogation | 2 levels |
| Communication WITNESS | Signaling that can be excluded |
| Performance criteria | 2 |
| Output type | Contact or controlled line |
| Activation delay | Programmable |
| Activation time | Programmable |
| Output activation | Subject to algebraic formula |
| Power | From loop |
| Nominal voltage | 24VDC |
| Operating voltage | Operating voltage Range from 18 to 30V DC |
| Standby/alarm absorption | 500µA @ 24V DC in the absence of communication / <1,5mA @ 24V DC (para cada salida) |
| Separador de línea | Aislador inteligente (sin pérdida de dispositivos) |
| Contactos relé / corriente max | Máx. 30V DC 1A (carga resistiva) / Máx. 500mA |
| Alimentación auxiliar out | Intervalo de 18 a 30V DC (máx. 500mA) |
| Temperatura de ejercicio | -15°C...+70°C |
| Humedad relativa | 10%...93% (en ausencia de condensación) |
| Grado de protección | IP40 |
| Contenedor | ABS V0 |
| Dimensiones (L x A x P) TFM05-HP - TFM05-LP | 144 x 118 x 71,5mm - 144 x 118 x 38,5mm |
| Peso TFM05-HP - TFM05-LP | 260g / 230g |
| Normas | EN 54-18: 2005/AC: 2007 - EN 54-17: 2005 |
| Número de certificación | 1293-CPR-0421 |
| Ano del marcado CE | 16 |
| Organismo de certifi cación | EVPU |

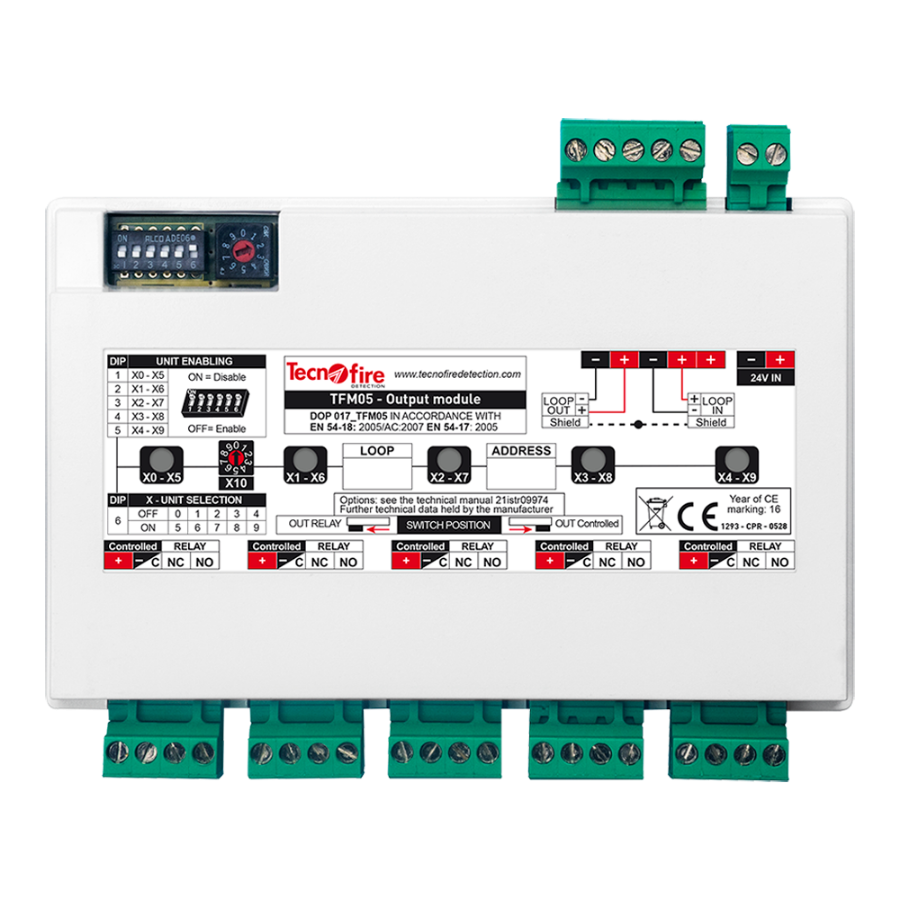

Addressable module of 5 supervised outputs individually identified by the System, occupies maximum 5 addresses.
Programmable functions with 2 operating criteria: muteable and unmuteable, 2 output type modes: contact or controlled line, and with programmable time and delay of actuation, the actuation can be subject to an algebraic formula.
Protected service input for the power supply of external devices and 5 status indication led.
Complete RSC® device management: programming, remote management and control of all operating parameters.
DIN mounting or surface mounting.
EN 54-18: 2005/AC: 2007 - EN 54-17: 2005.
Type approval certificate 1293 CPR - 0528.
