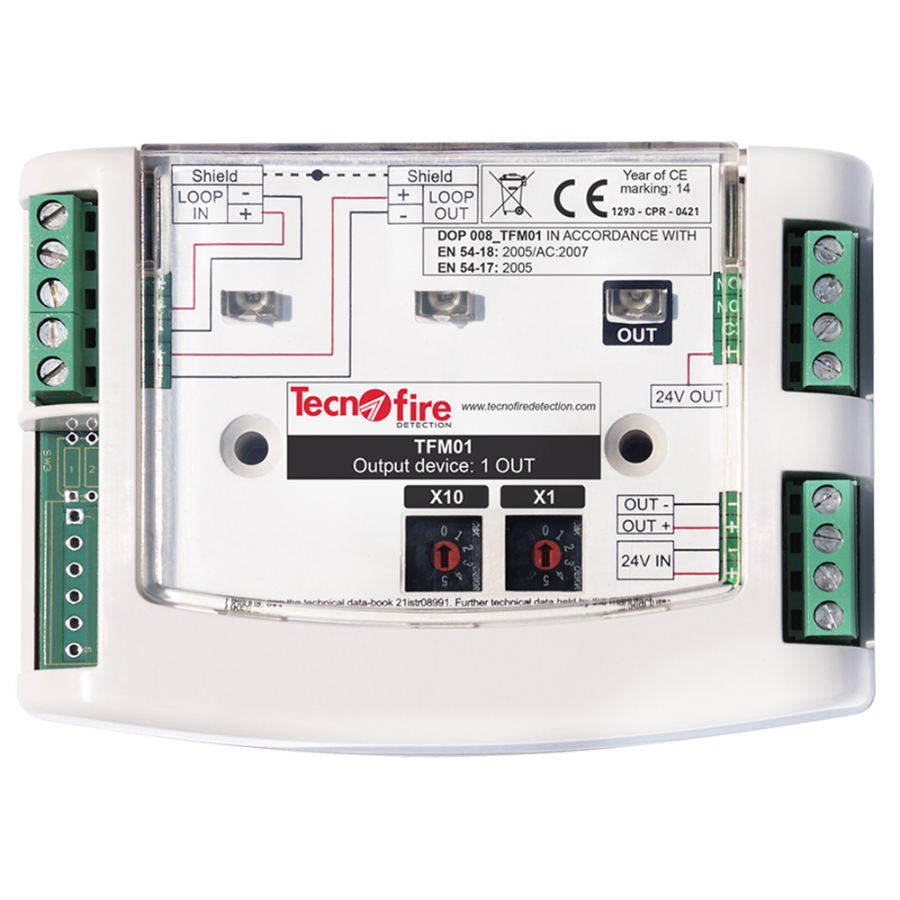

| Device name | TFM01 |
| Description | Module 1 output |
| Communication protocol | FIRE-SPEED |
| Address | 2 rotary selectors |
| Frequency of interrogation | 2 levels |
| Communication WITNESS | Signaling that can be excluded |
| Performance criteria | 2 |
| Output type | Contact or controlled line |
| Activation delay | Programmable |
| Activation time | Programmable |
| Output activation | Subject to algebraic formula |
| Power | From loop |
| Nominal voltage | 24VDC |
| Operating voltage | Operating voltage Range from 18 to 30V DC |
| Absorption in alarm | 2,3mA @ 24V DC |
| Line separator | Intelligent isolator (no device loss) |
| Relay contacts | Max. 30V DC 1A (resistive load) |
| Auxiliary power out | Range from 18 to 30V DC (max. 500mA) |
| Exercise temperature | -15°C...+70°C |
| Relative humidity | 10%...93% (in absence of condensation) |
| Degree of protection | IP40 |
| Container | ABS V0 |
| Dimensions (L x W x D) | 112 x 78 x 25mm |
| Weight | 165 g |
| Standards | EN 54-18: 2005/AC: 2007 - EN 54-17: 2005 |
| Certification number | 1293-CPR-0421 |
| Year of CE marking | 14 |
| Certification body | EVPU |
Addressable module of 1 supervised output.
Programmable functions with 2 operating criteria: muteable and unmuteable, and 2 output modes: contact or line.
Output with programmable time and delay of actuation, the actuation can be subject to an algebraic formula.
Status signaling LED.
Complete RSC® device management: programming, remote management and control of all operating parameters.
Surface or DIN mounting (TFDIN accessory).
EN 54-18: 2005/AC: 2007 - EN 54-17: 2005.
Approval certificate 1293-CPR–0421.
