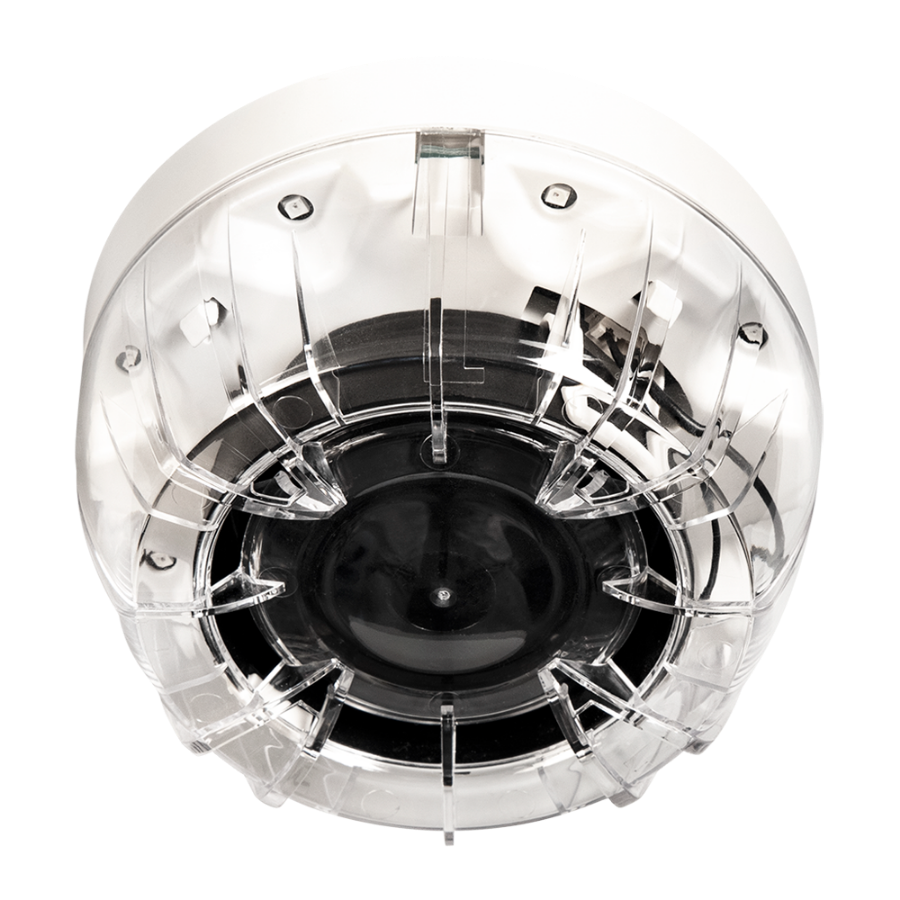

| Adjustable optical-acoustic alarm signal device | TFIES02 |
| Area of use | Type B (for outdoors) |
| VAD classification | Visual Alarm Device |
| Category O Open Class | Wall or ceiling mounting |
| Optical coverage | O - 4.6 - 2.2 |
| Sound pressure | 101dB(A) @ 1m |
| Main sound type (according to EN 54-3)) | Number 9 |
| Duplicate operation | Main ID + Alias ID |
| Optical synchronism | Programmable |
| Interrogation LED | Excludable |
| Frequency of interrogation | Programmable |
| Performance criteria | 6 modes |
| Optical signaling | Excludable |
| Acoustic signaling | Excludable |
| Acoustic signaling modes | 64 |
| Acoustic volume adjustment | 2 levels |
| End of alarm tone | Programmable |
| Activation delay | Programmable |
| Activation time | Programmable |
| Device activation | It can be controlled by the formula |
| Addressable module | Loop connection |
| Busy addresses | Max. 2 (Double ID) |
| Communication protocol | FIRE-SPEED |
| Line separator | Double insulator |
| Nominal voltage | 24VDC |
| Operating voltage | 18V…30VDC |
| Absorption | 870µA @ 24V DC |
| Average absorption in signaling | Optics and acoustics 4,5mA @ 24V DCAcoustic only 3mA @ 24V DCOptics only 4mA @ 24V DC |
| Operating temperature | -25°C...+70°C |
| Relative humidity (non-condensing) | 10%...93% |
| Degree of protection | IP33C (EN 60529)) |
| Degree of protection with junction box TFBOX-SBWP | IP65 (EN 60529)) |
| Box | PC ABS |
| Dimensions (D x H ) | 120 x 65mm |
| Weight | 230g |
| Standards | EN 54-3:2001 + A2:2006 EN 54-23:2010EN 54-17:2005 |
| Certificate of homologation | 1293-CPR-0825 |
| Year of CE marking | 22 |
| Benefit statement number | 045_TFIES02 |
| Certification body | EVPU |
