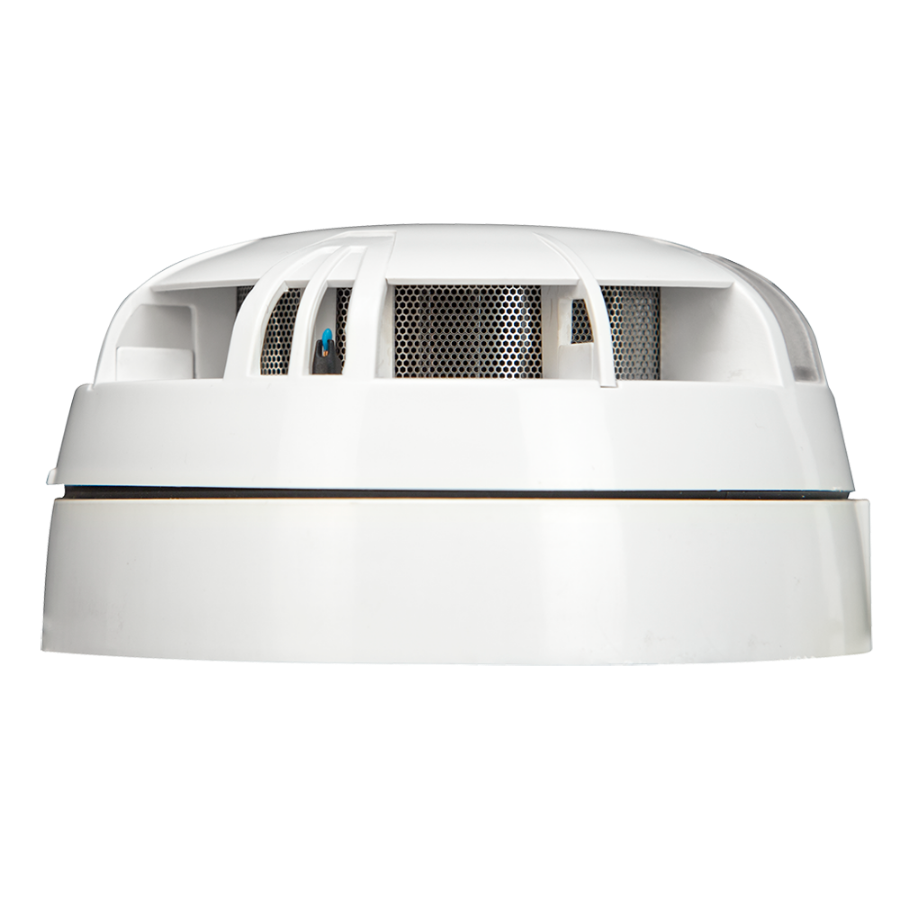

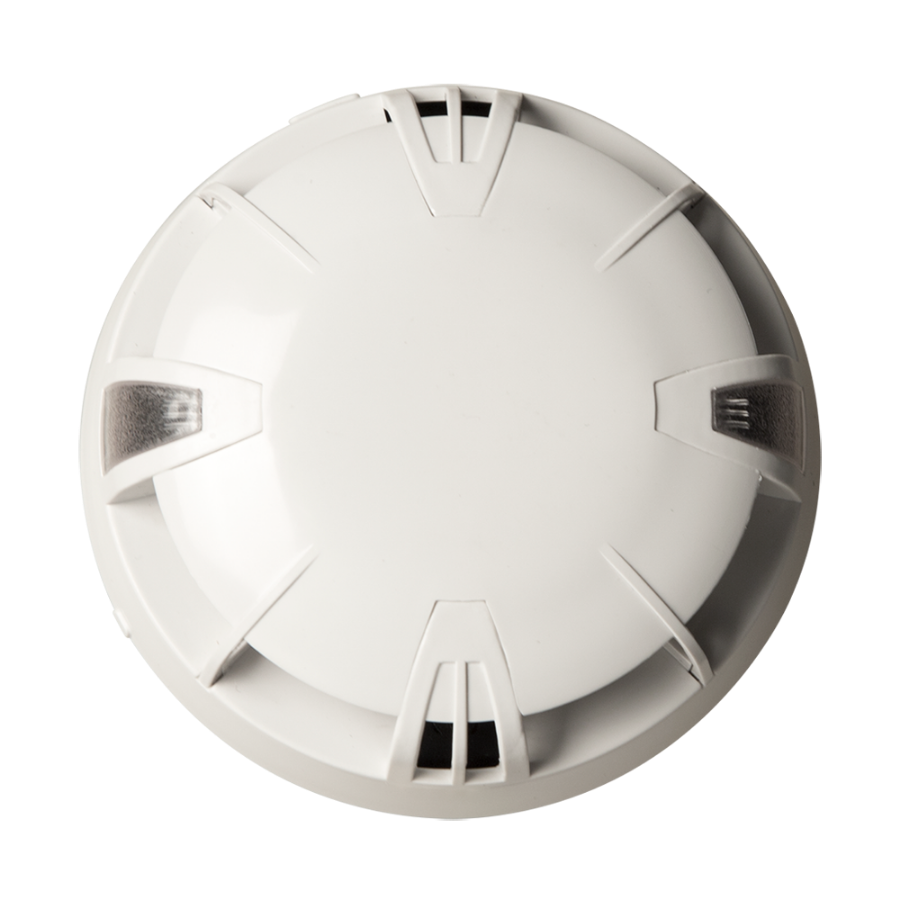

| Combined optical and thermovelocimetric smoke detector configurable | TFDA-S2 |
| Detector configuration | Addressable or Conventional |
| APP: | iPhone - Android (Tecnofire ID) |
| NFC protocol | Encrypted |
| Programming | Read / Write |
| Recorded data | Optical alarm graphicAlarm counterDetector IDRevision management |
| Interrogation LED | Excludable |
| Sensitivity | 3 levels |
| Association formula | Programmable |
| Management criteria | Programmable |
| Address | Software |
| Communication protocol | FIRE-SPEED |
| Line separator | Double insulator |
| Nominal voltage | 24VDC |
| Operating voltage | 18V…30VDC |
| Absorption | 400µA @ 24V DC |
| Absorption in alarm | 5mA @ 24V DC |
| Snooze alarm output | 9,4V DC 3mA |
| Operating temperature | -10°C...+55°C |
| Relative humidity | (without condensation) 10%...93% |
| Degree of protection | IP22 |
| Box | ABS |
| Dimensions (D x W) | 100 x 52mm |
| Weight | 100g |
| Standards | EN 54-7:2018EN 54-17:2005 |
| Certificate of homologation | 0051-CPR-3134 |
| Year of marking | CE 23 |
| Benefit statement number | 052_TFDA-S2 |
| Certification body | IMQ |
Configurable optical smoke detector, can be used with analogue addressable or conventional control panels.
Tyndall effect optical smoke detection technology.
The detector integrates an NFC transceiver with which, via smartphone and Tecnofire ID App it is possible to configure the device and display: the identification data, the alarm counter, the graph of the last alarm detected and the data necessary to manage the detector's overhaul service.
Highest precision analysis of captured smoke. Dynamic control and compensation of the sensitivity of the optical camera, automatic management of the maintenance threshold.
Programmable functions: 3 sensitivity levels, formula association and management criterion for TFBASE-SIREN or TFRIP-SMART.
The functional states of the detector can be used as operands in the formulas managed by the control panel.
CSR® Management: programming, remote management and control.
Double line isolator.
Universal base mounting TFBASE01.
EN 54-7:2018 - EN 54-17:2005. Certificate of homologation: 0051-CPR-3134
