| Device name | TF-TFCP |
| Description | Addressable alarm button |
| Type of pushbutton | Glass breakage - resettable |
| Installation | Type A - For indoor use only |
| Communication protocol | FIRE-SPEED |
| Address | 2 rotary selectors |
| Frequency of interrogation | 2 levels |
| Communication WITNESS | Signaling that can be excluded |
| Performance criteria | 2 |
| Power | From loop |
| Nominal voltage | 24VDC |
| Operating voltage | 18V...30VDC |
| Standby absorption | 500µA @ 24V DC in absence of communication |
| Absorption in alarm | 1,6mA @ 24V DC |
| Line separator | Intelligent isolator (no device loss) |
| Exercise temperature | -15°C...+70°C |
| Relative Humidity | 10%...93% (in absence of condensation) |
| Degree of protection | IP44 |
| Container | ABS V0 |
| Dimensions | (L x W x D) 86 x 86 x53mm |
| Weight | 160g |
| Standards | EN 54-11:2001 + A1:2005 - EN 54-17:2005 |
| Certification number | 1293-CPR-0418 |
| Year of CE marking | 14 |
| Benefit statement number | 007_TFCP01 |
| Certification body | EVPU |

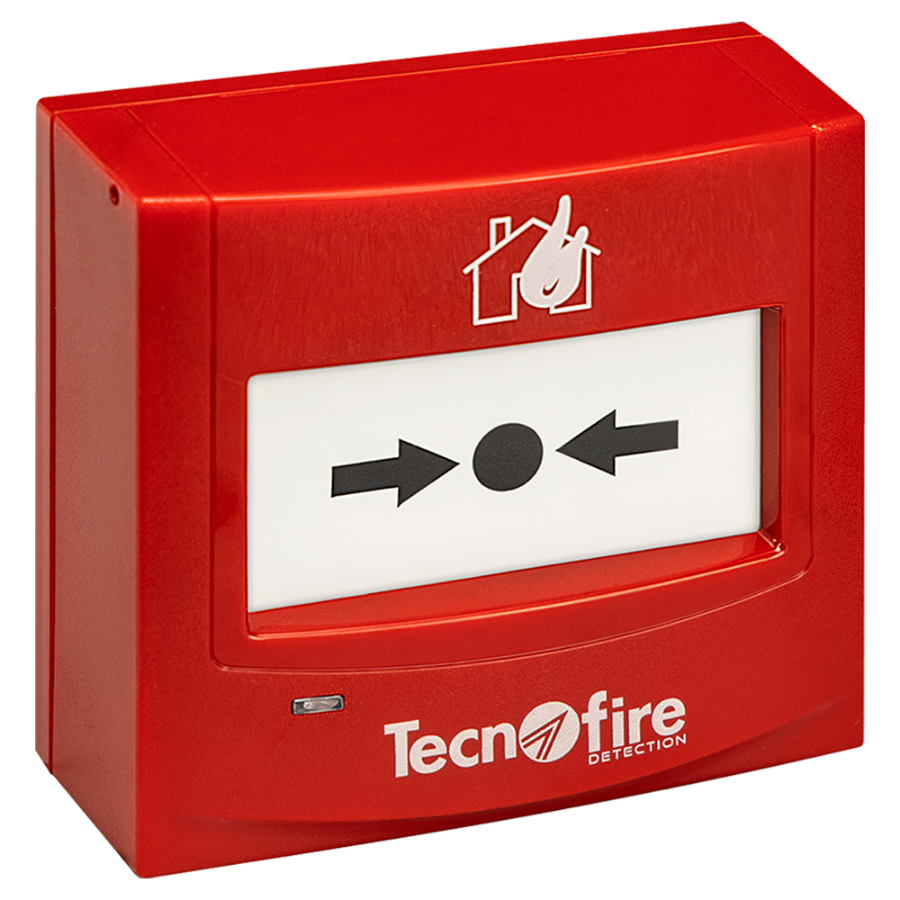

Addressable alarm push button for manual fire signaling.
Complete RSC® device management: programming, remote management and control of all operating parameters.
Glass-break or resettable mounting.
Included accessories: glass protected by accident-proof film and push button reset key.
EN 54-11: 2001+A1: 2005 - EN 54-17: 2005.
Approval certificate 1293-CPR–0418.
