| Total detectors | 796 |
| Total manageable modules | 396 |
| Total manageable areas | 300 |
| Virtual zones | 100 |
| Specialized/programmable relays | 2/3 |
| Open Collector programmable | 3 |
| Controlled output for siren/Reset | 1/1 |
| True Color TFT Display | 480 x 272 pixels |
| Vocal synthesis | Multilingual dictionary |
| Detection loops | 2 |
| BUS serial RS485 | 1 - Master BUS + 1-Slave BUS |
| Event memory capacity | 4096 |
| Access levels | 4 |
| Access codes | 10 |
| Supervised system mode | Programmable |
| Detection loop | Fire-speed |
| BUS RS485 | Fire-Bus |
| Formulas | 400 |
| Alarm plans | 200 |
| Time bands | 32 |
| Calendar years | 4 (programmable) |
| Expansion BUS connection RS485 Maximum 15 units | Central repeater ,Synoptic repeater, Telephone combiner |
| Serial printer | Management |
| CPU Consumption | 200mA @ 24V d |
| Electrical Outputs | Max. 50mA |
| Supply voltage Loop | 20V...27,6VDC |
| BUS supply voltage RS485 | 20V...27,6VDC |
| Supply voltage sirens | 20V...27,6VDC |
| Modular power supply | Type A (switching) |
| Supply voltage | 230V AC +10 -15% 50Hz |
| Maximum absorbed current | 700mA ac |
| Nominal values | 5A @ 27,6V dc |
| Maximum supply current | I max. 5A |
| Ripple max | ?150mV pp |
| Battery protection | T-1,6A Fuse |
| Battery flammability class | V-2 or higher |
| Internal battery resistance | max. 1,5 ? |
| Battery deactivation voltage | Per Vbat <17,6V |
| Tiempo de recarga batería (2 x 12V/7Ah) | 100% en 24 horas |
| Clase medioambiental | 3K5 EN 60721-3-3:1995 |
| Temperatura de ejercicio | +5° C... +40° C |
| Humedad relativava | 10%...93% (en ausencia de condensación) |
| Alojamiento batería | 2 x 12V/12Ah |
| Grado de protección | IP30 |
| Contenedor | Aluminio - Metal |
| Dimensiones (L x A x P) | 441 x 347 x 149mm |
| Peso (sin batería) | 6,2Kg |
| Interfaz ethernet | Estándar 803.2 |
| Vector | IP |
| Canales de comunicación | Local Server, Remote Server, Tecnoserver, Call back |
| Comunicadores | 8 |
| Direcciones IP | 16(2 para comunicador) |
| Sucesos transmisibles | 13 (categorías) |
| Protocolos de comunicación | 5 |
| Criptografía | AES 128 bit |
| Lista de eventos | 64 elementos |
| Certificación Central | EN 54-2: 1997+A1:2006 |
| Certificación Fuente de alimentación | EN 54-4: 1997+A2:2006 |
| Certificación Número de certificación | 0051-CPR-0444 |
| Certificación Ano del marcado CE | 14 |
| Certificación Número de la declaración | 015_TFA1-298 |
| Organismo de certificación | IMQ |

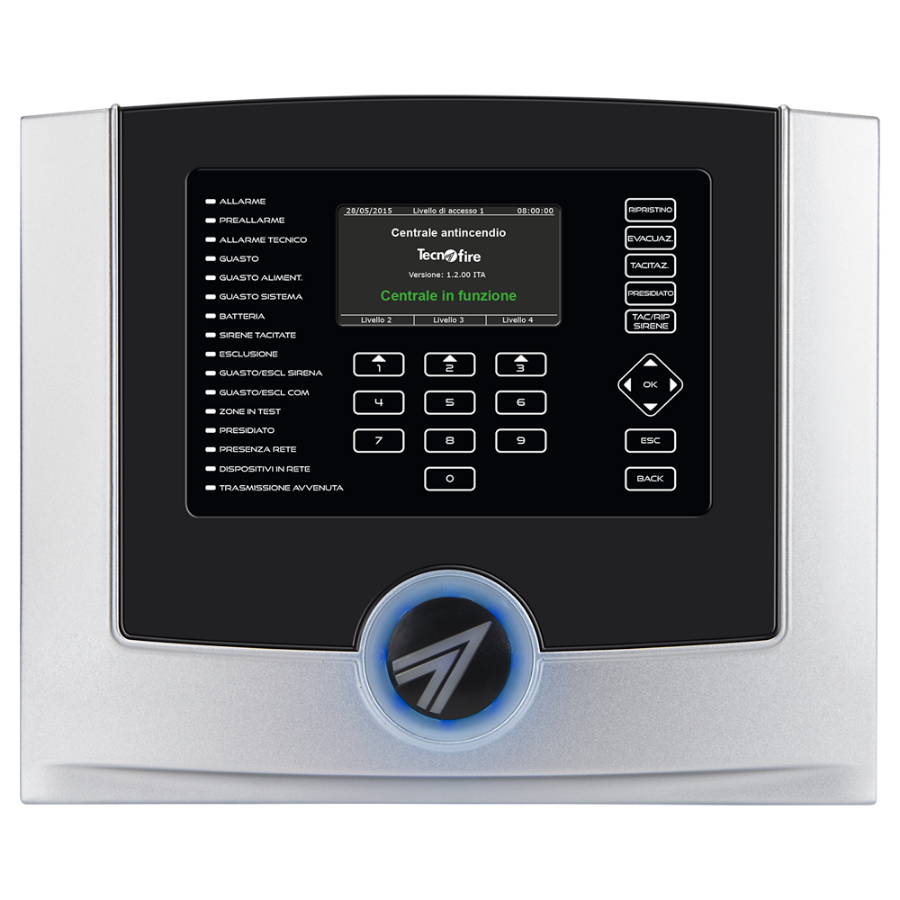

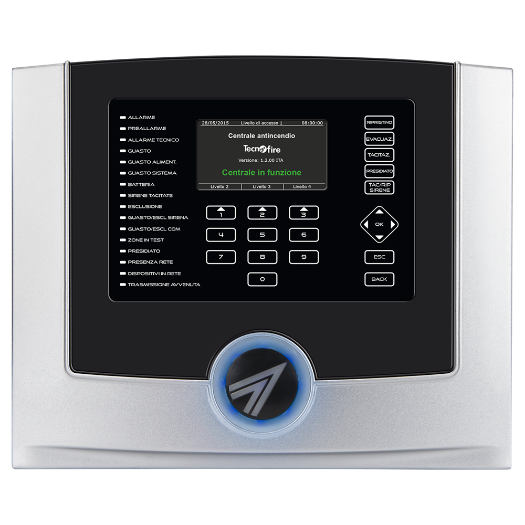

Addressable fire detection control panel equipped with 4 loops, each loop can control 199 detectors and 99 modules, it also has 2 buses RS485 for connecting expansion devices, up to 16 a choice of repeater panels and/or telecommunications devices.
The TFA4-1192 control panel can be part of a network of Tecnofire control panels, manages 300 fire or technical detection zones and 100 virtual detection zones.
Automated management: 200 alarm schedules, 32 time slots, 400 formulas, cyclic test server and customizable or perpetual four-year calendar.
Advanced management with logic determined by the application of formulas, dynamically relating the functional states of the system devices.
It is equipped with 4 specialized signaling outputs and 6 freely programmable signaling outputs.
TLC Section: IP telecommunication carrier, 4 communication channels: Local Server, Remote Server, Tecnoserver, Call back, 8 communicators for event notification, contact data 2 IP addresses for each comunicador,5 communication protocols, 15 categories of transmittable events.
User interface: color display of 4,3”, programming and management keyboard, 16 signaling LED, voice synthesis and multifunctional acoustic signal speaker, USB port, serial printer.
RSC® system management: programming, remote management and control.
5A Modular Switching Power Supply. Battery compartment: 2 x 12V - 12Ah. Aluminum and steel cabinet.
Central plant according to EN 54-2: 1997+ A1: 2006 - EN 54-4: 1997+ A1:2002 + A2:2006.
Approval certificate 0051-CPR-0388.
System compatibility IN 54-13:2020.
