| Brand | TBB |
| AC input voltage range | 175-265 Vac |
| Input frequency range | 45-65 Hz |
| Maximum AC input current | 32A |
| AC Out output current 1 | 32A |
| Transfer time | 4 ms (15 ms in weak AC mode) |
| Protections included | Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage / Fan lock / Input voltage ripple too high |
| General purpose communication port | RS485 |
| Configurable relay | 30Vdc/3A or 250Vac/3A |
| Operating temperature range | -20oC - +65oC |
| Operating relative humidity | 95% no condensation |
| Maximum altitude | 2000m |
| Dimensions | 499 (H) x 272 (W) x 144 (D) mm |
| Net weight | 18Kg |
| Cooling | Forced |
| Protection rating | IP21 |
| Certifications | Security: EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2 EN-IEC [%VAR%] EMC: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12 EN [%VAR%] Network: RD 1699 |
| Nominal battery voltage | 48V |
| DC input voltage range | 42-68 V |
| AC output voltage | Single-phase 220/230/240 Vac ± 2% |
| Output frequency | 50/60 Hz ± 0.1% |
| Harmonic Distortion | <2% |
| Factor de potencia de carga | 1 |
| Potencia de salida continua a 25oC | 3000W3000VA |
| Potencia pico de salida | 6000W |
| Eficiencia máxima | 93% |
| Consumo en modo de espera | 17W |
| Tensión de absorción | 57.6V |
| Tensión de flotación | 55.2V |
| Tipo de baterías compatibles | Litio (recomendado) / AGM / GEL / OPzV / Plomo-carbono / Inundadas / Tracción |
| Corriente máxima de carga | 35A |
| Compensación de temperatura | Sí |
| Corriente de salida máxima | 60A |
| Número de MPPT | 1 |
| Tensión máxima de circuito abierto / MPPT | 250 Voc |
| Rango de tensión / MPPT | 65-245 Vcc |
| Corriente máxima de entrada / MPPT | 36A |
| Corriente máxima de cortocircuito / MPPT | 40A |
| Potencia FV máxima / MPPT | 5200W |
| Eficiencia máxima | 98% |
| Eficiencia MPPT | >99.5% |
| Protections included | Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Overvoltage solar panels |
| Surplus injection to the grid | Required TBB-E4-MONITOR and TBB-SDM-230 |
| Parallelization of inverters | TBB-E4-MONITOR Required |
| Three-phase connection | Necessary 3 investors and TBB-E4-MONITOR |
| AC coupling | TBB-E4-MONITOR Required |
| Three-phase operation without battery | Necessary 3 investors and TBB-E4-MONITOR |

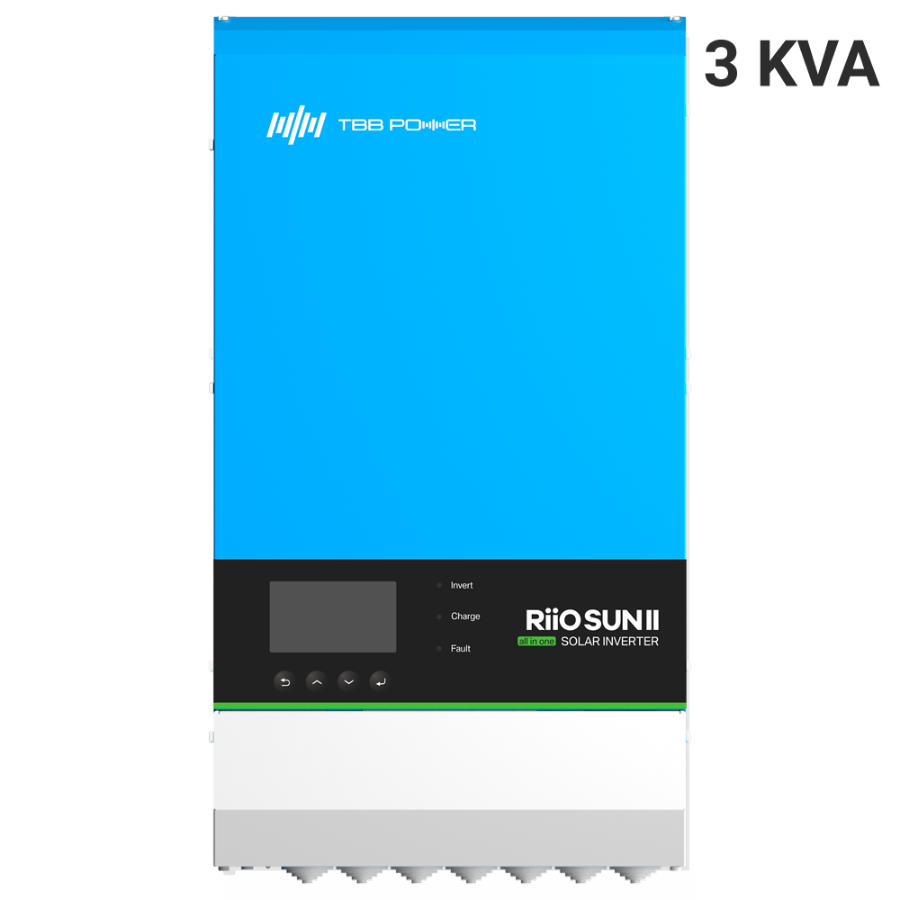

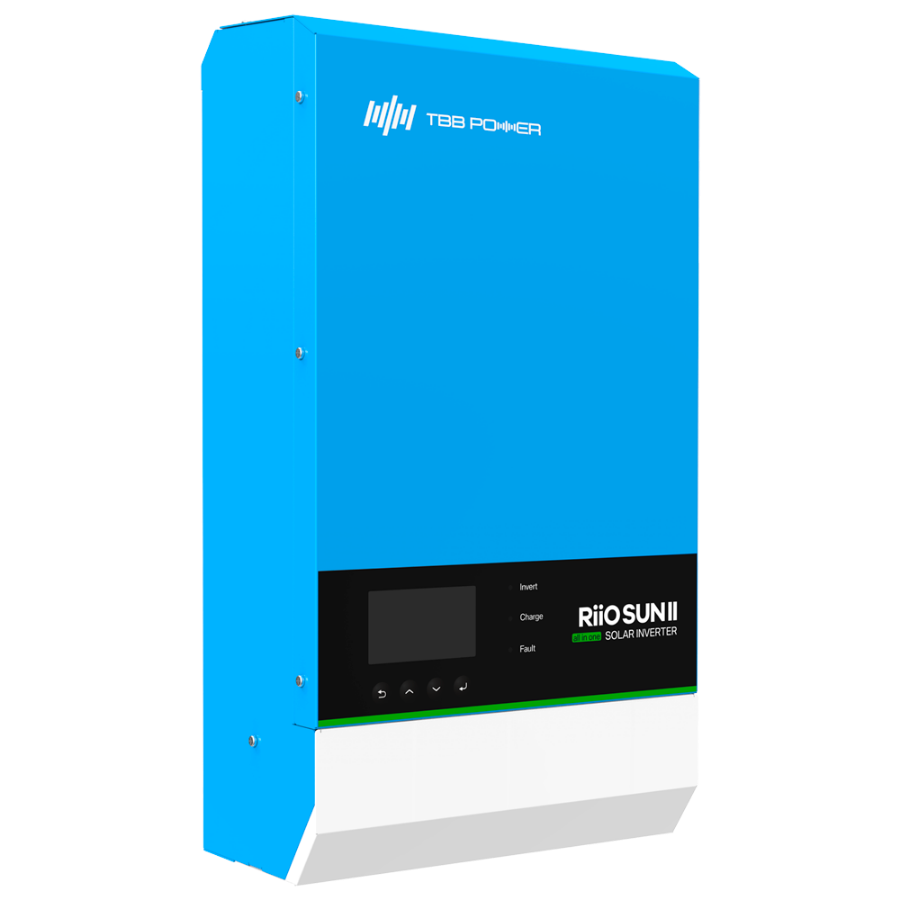

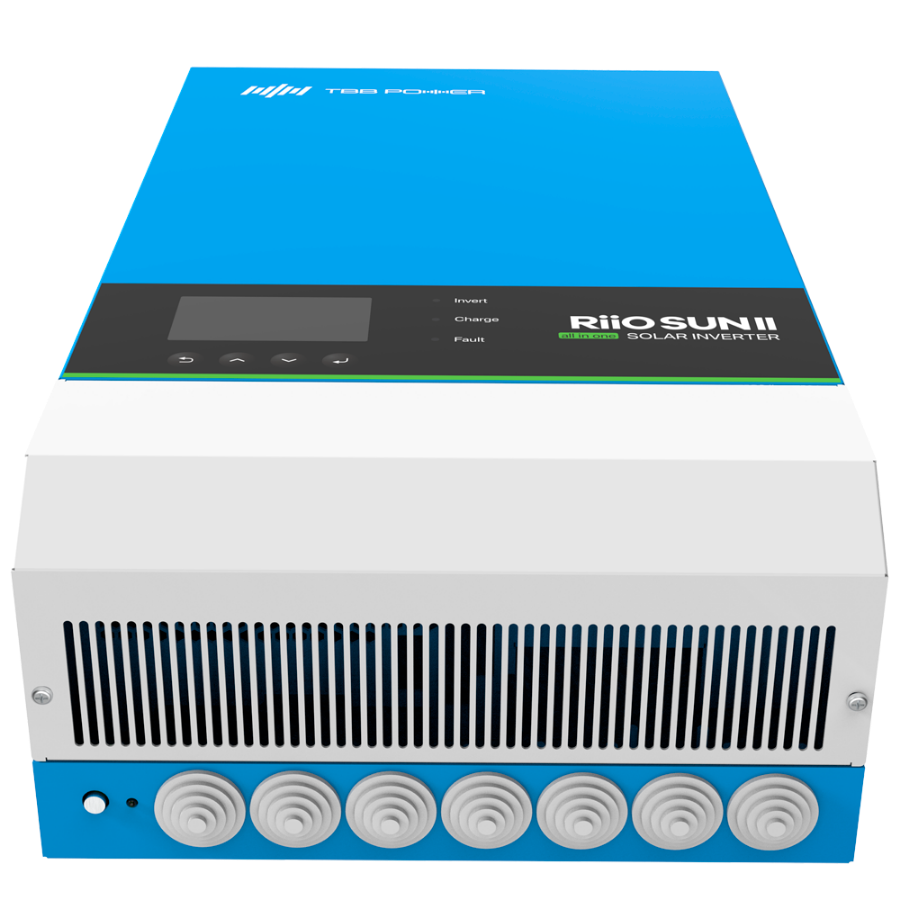

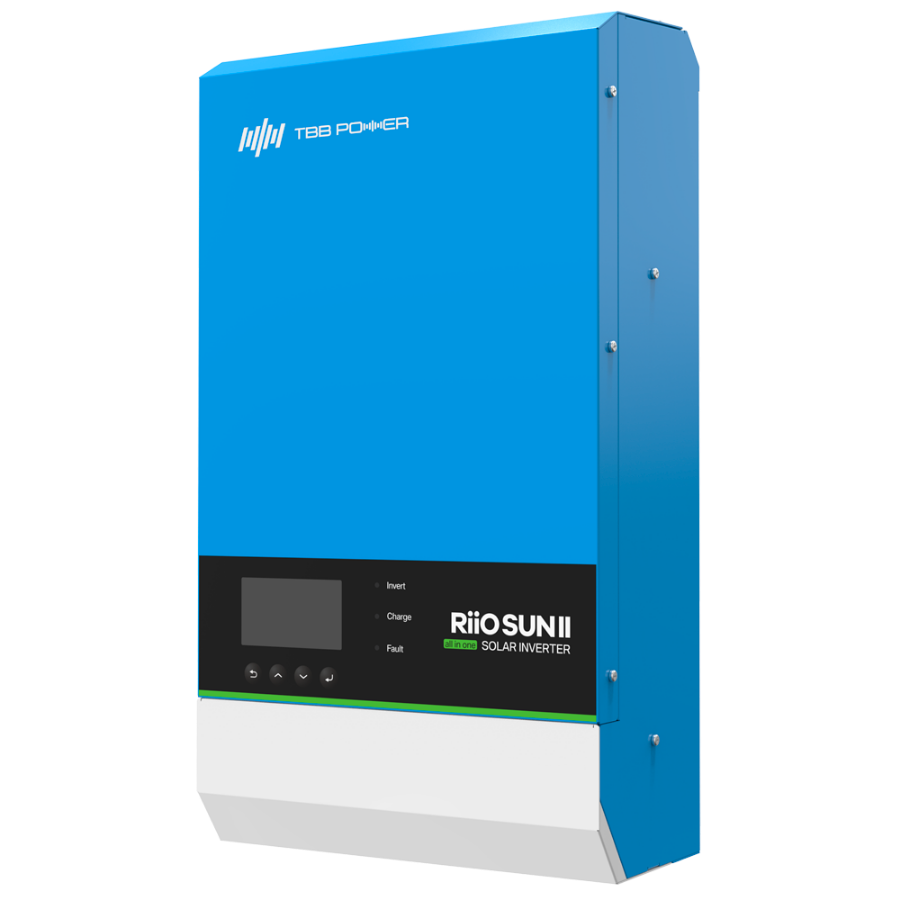

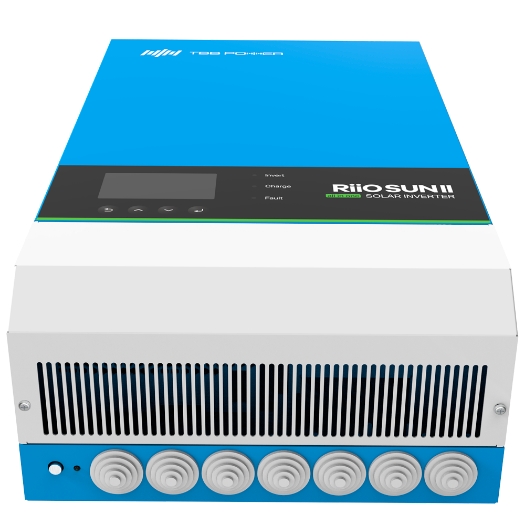

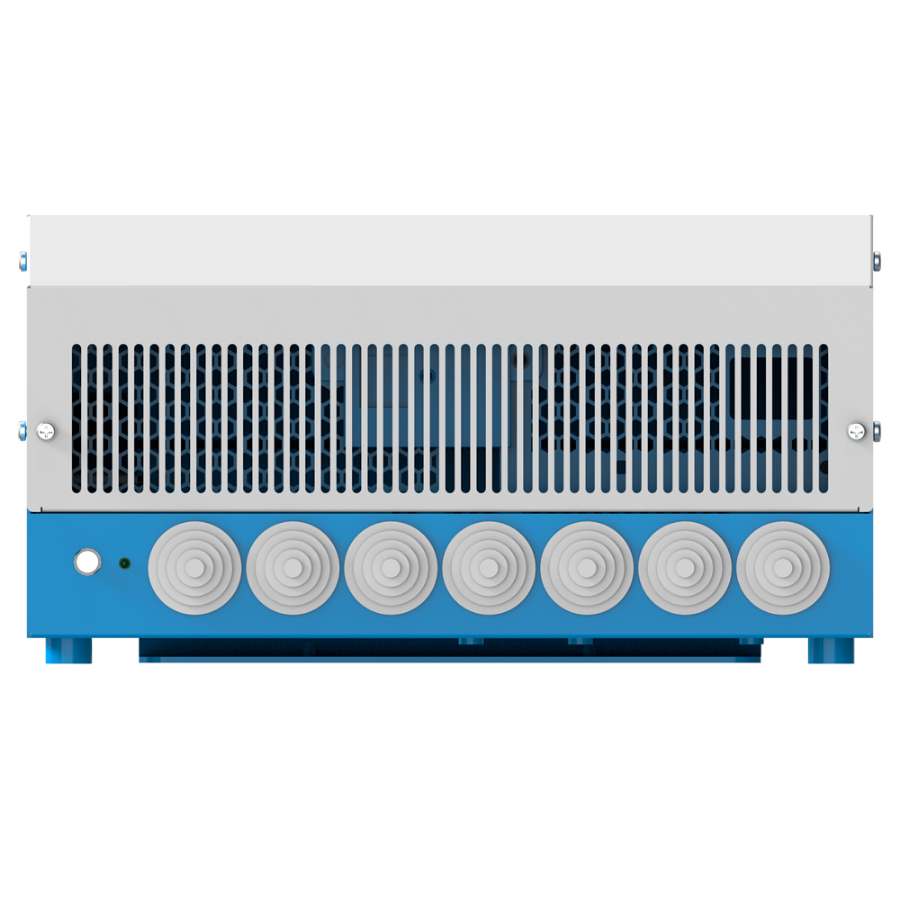

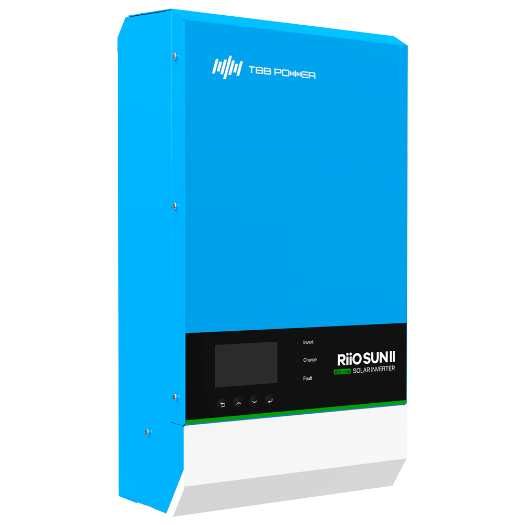

TBB's RioSun II series is a range of all-in-one solar inverters whose main feature is versatility. As it has a solar regulator, inverter and battery charger, it is valid in a multitude of installations, such as grid-connected (with and without batteries) or off-grid.
It can also be used as AC coupling to extend existing installations, such as Backup and can be placed in parallel or three-phase for higher power demands.

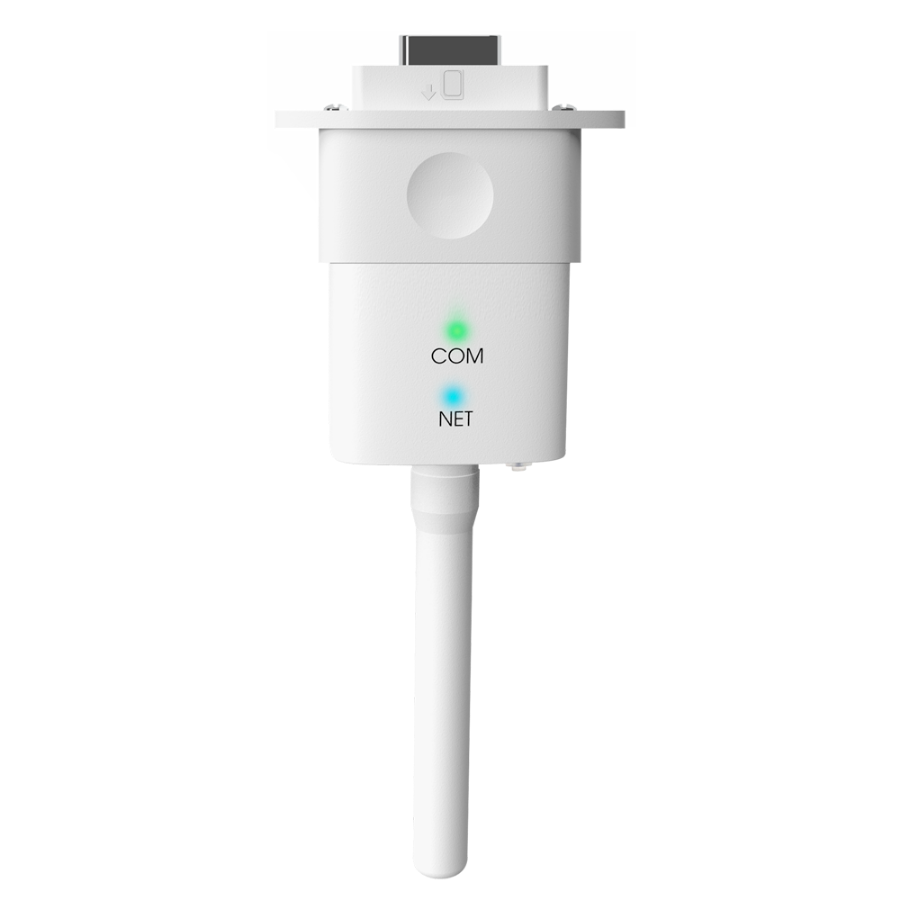

It has a built-in WiFi module for communication, monitoring and load management via App and portal, with the possibility of adding accessories according to the needs
