| Bandwidth | 10/100 Mbps |
| Communication port | RJ45 |
| Normative | IEEE 802.3-2008, IEEE 1588-2008 IEEE [%VAR%] |
| Bus frequency | Up to 144Mhz |
| Operating temperature range | -30oC - +75 oC (voltage at 12V, humidity at 60%)) |
| Storage temperature range | -40oC - +85 oC |
| Operating altitude | 5000m |
| Relative Humidity | 10 - 85% |
| Protection rating | IP20 |
| Dimensions | 108.6 x 84.92 x 40.3 (mm) |
| Weight | 200g |
| Normative | CE |
| Power supply | 12Vcc 500mA |
| Operating voltage range | 9 - 16 Vcc |
| Operating current range | 5 - 250 mA |

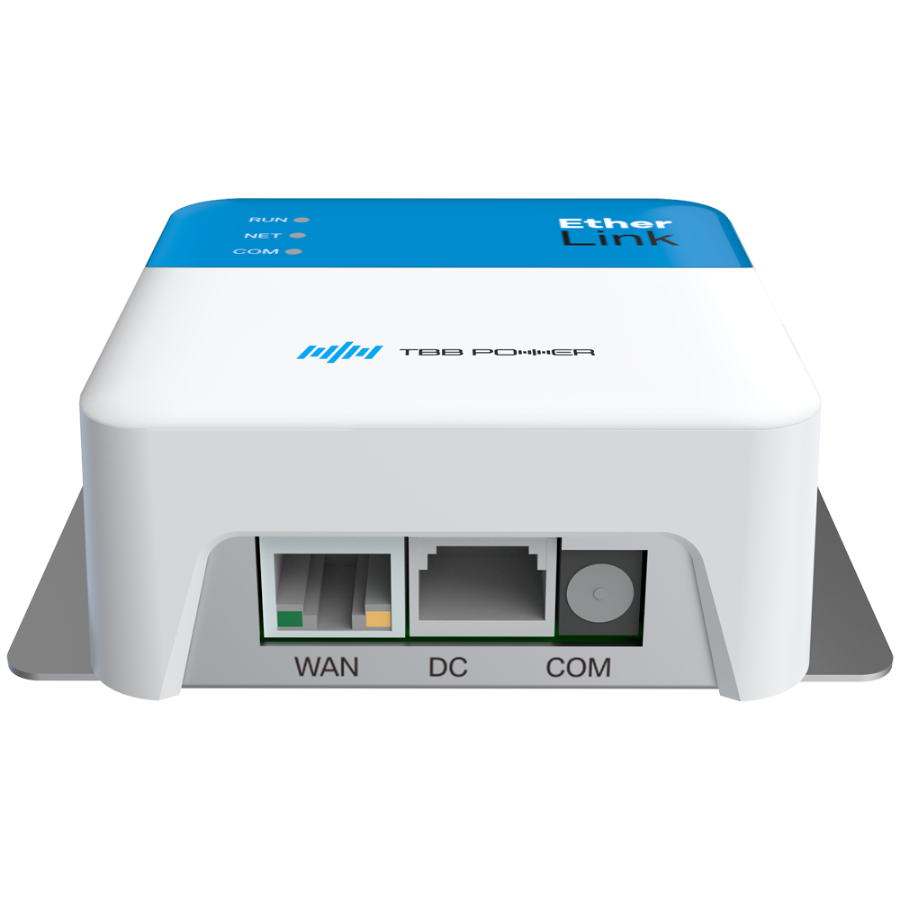

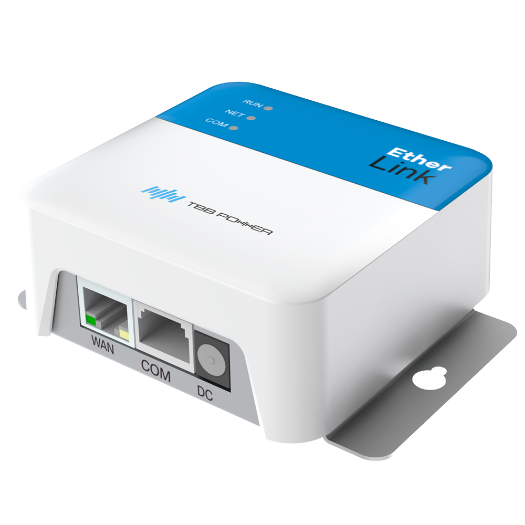

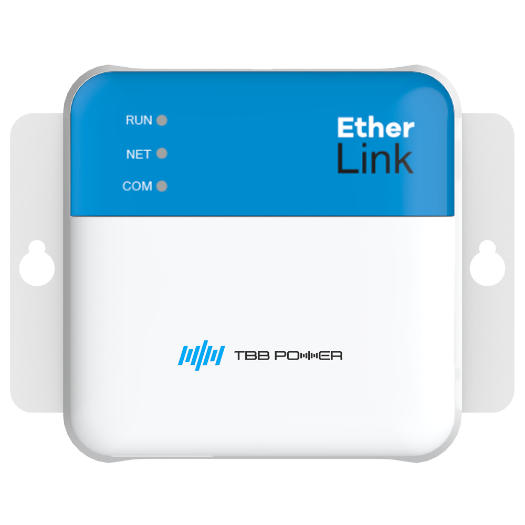

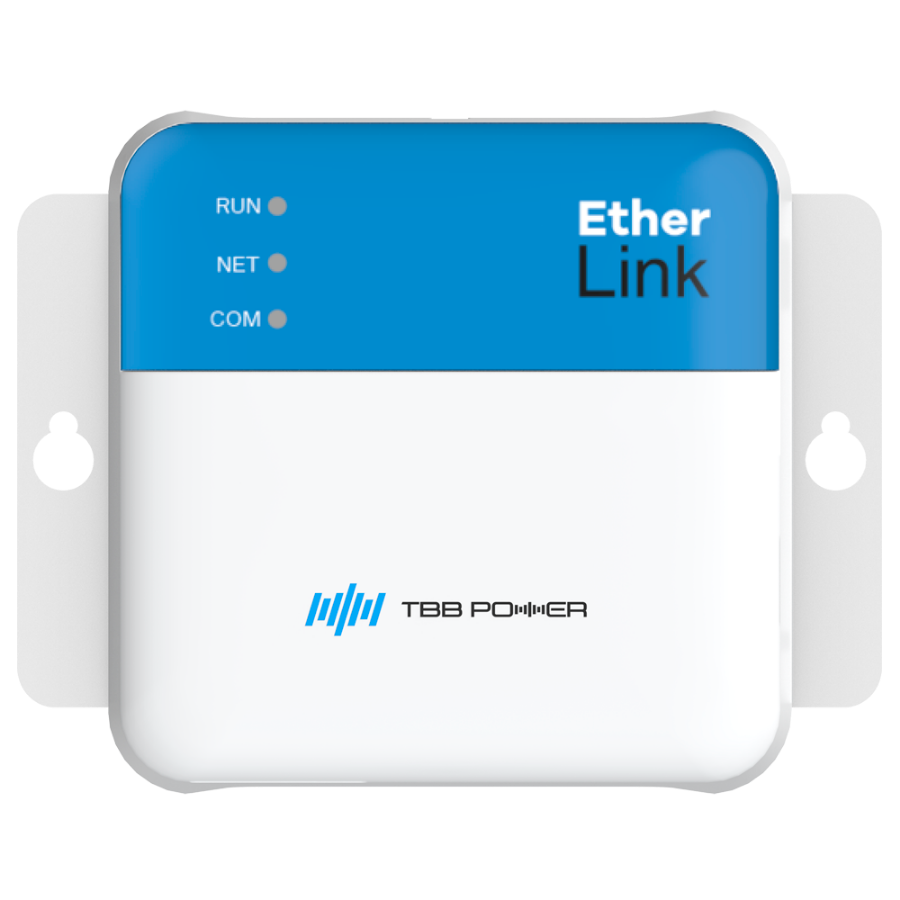

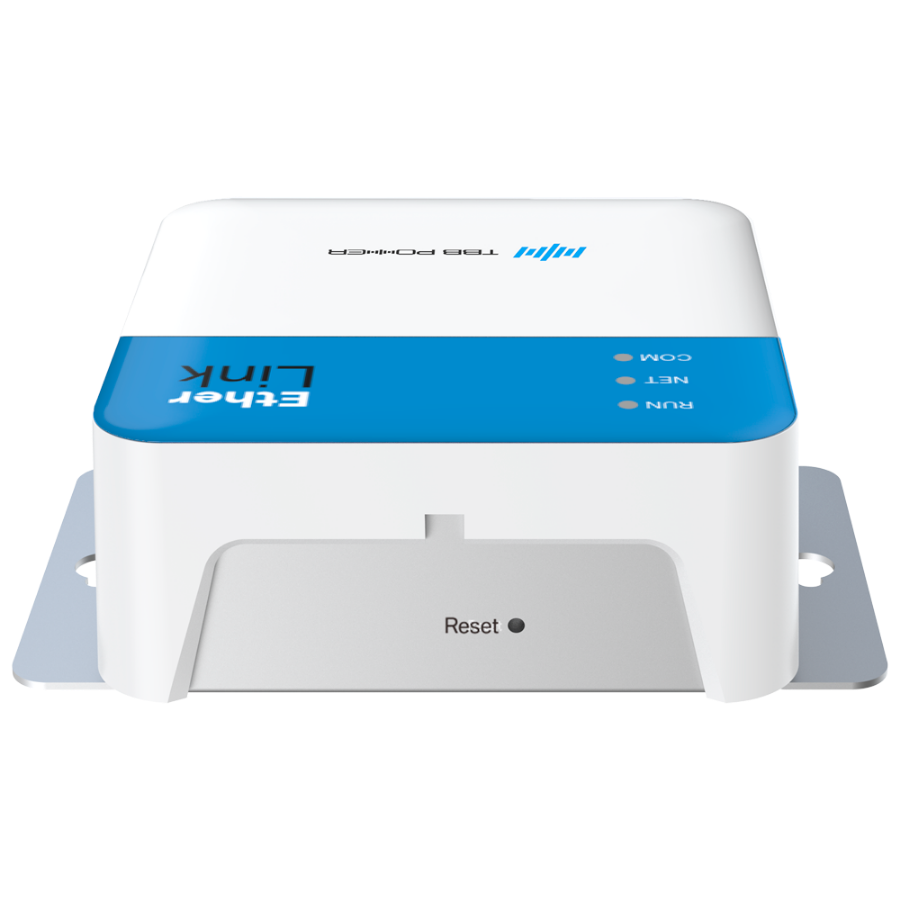

The TBB-ETHERLINKER connector is the ideal accessory when it is necessary to monitor and control Riio Sun II inverters via Ethernet, such as installations where WiFi coverage is insufficient, such as garages or places with poor coverage.
