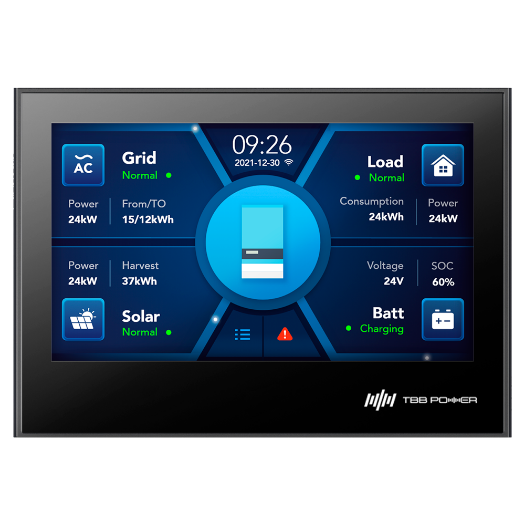

TBB-E4-MONITOR

LCD TBB display
Compatible with RioSun II inverters
Monitoring, programming and control
Parallel and three-phase systems
Communicates with batteries and generators

Brand: TBB

Šifra: TBB-E4-MONITOR

GTIN: 8435325493992

224,78 EUR

Dostupno

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Brand	TBB
Dimensions	115 x 80 x 38 mm
Net Weight	178 g
Operating temperature range	-20oC - +70 oC
Storage temperature range	-30oC - +75 oC
Operating Humidity	85% no condensation
Protection rating	IP21
Size	4.3"
Dimensions	95.04 mm x 53.86 mm
Resolution	480 x 272 pixels
Backlight	LED
Luminance	400 cd/m2
Viewing angle	80o
Accessibility	Capacitive touch supporting 5 touch points
Aspect ratio	16:9
Rated input voltage	12Vcc
Input voltage range	9 - 16 Vcc
Operating current	100mA
Peak current	250mA
Internal communication port	RS485
Energy meter communication port	RS485
Communication port Lithium battery	CAN
External communication	WiFi / RS485

Opis

TBB's E4 display is the ideal accessory for TBB's Rio Sun II inverter range, due to its wide versatility in terms of capacities, being a necessary accessory to feed power to the grid, parallel inverters, realize a three-phase system and make an AC coupling with another inverter.

In addition, it allows real-time monitoring and management of the load, making it possible to program different charging and discharging times for the batteries and generators connected to the system, allowing for unparalleled energy efficiency in the installation.

TBB
LCD display for monitoring and connection to App and TBB NOVA portal
Compatible with Rio SUN II inverters
Allows to program and control charging and discharging of batteries connected to Rio SUN II, as well as generators
Mandatory for parallel, three-phase or AC coupled inverters
Supports communication with external energy meters
Possibility of storing and exporting data for further use
