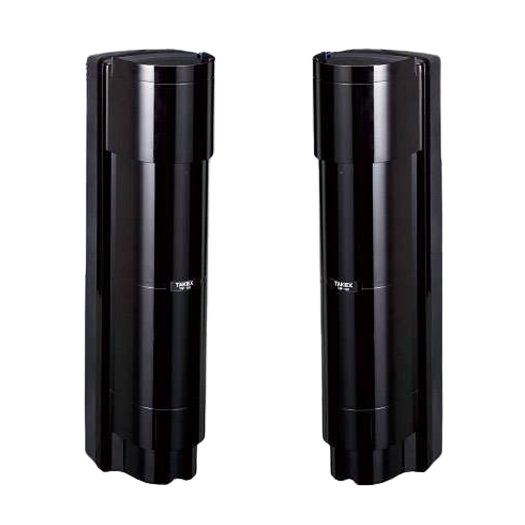

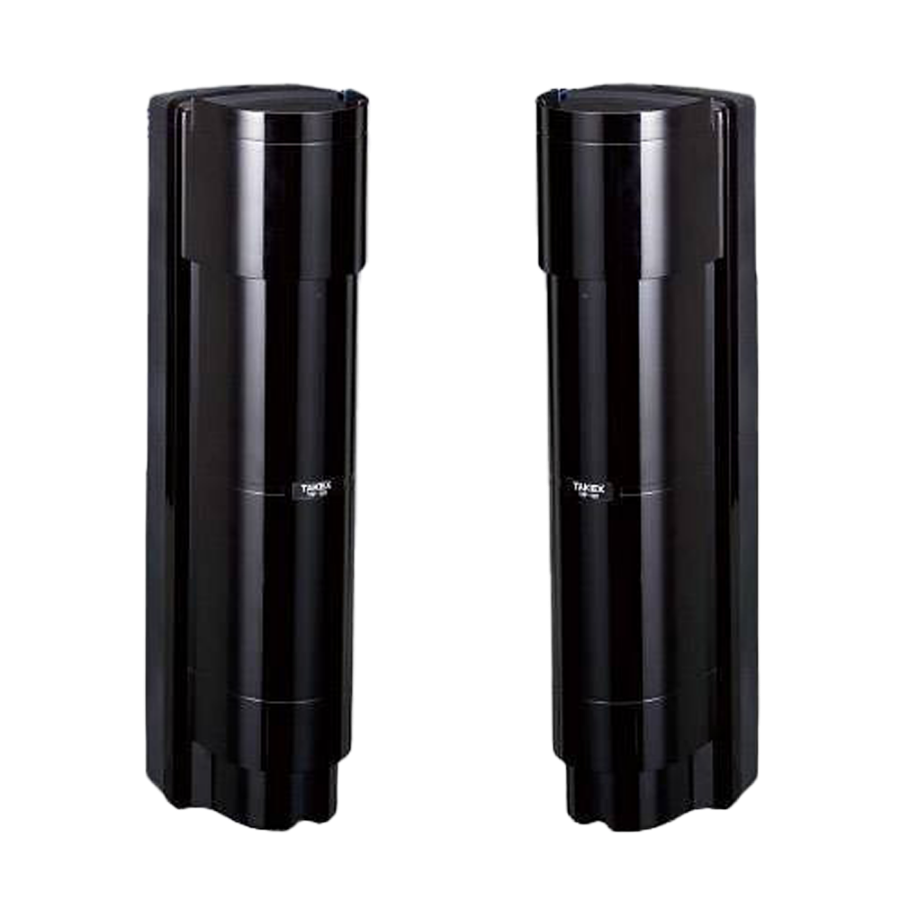

| Use | Infrared barrier detector |
| Detection range | 100 m exterior |
| Number of beams | 4 |
| Detection method | Interruption of the 4 beams at once or only 2 (up o down) |
| Interruption time | 50ms, 100ms, 250 ms, 500 ms (selectable via DIP Switch) |
| Frequency channels | 4 different channels over DIP Switch |
| Outputs | Alarm output NO/NC , tamper output NC, low battery output NC |
| Compatibility | Compatible with radio transmitters |
| Alignment angle | Horizontal 180°(±90°), Vertical 20°(±10°) |
| Operating temperature | -25oC ~ +60oC |
| Power | Recommended LS33600 Batteries |
| Power supply output for transmitter | 3.0 V DC |
| Dimensions | 447 (H) x 114(An) x 166 (D) mm |
| Dimensions for transmitter | 200 (H) x 67 (W) x 33(Fo) mm |
| Installation | Exterior or interior |
