| Range | 5Mpx ULTRA |
| Image sensor | 1/2.8" Sony© Starvis 5.14 Mpx |
| DSP | FH8556 |
| Resolution | Default:4Mpx@25FPS (HDTVI, HDCVI, AHD)Optional via menu: 5Mpx@20FPS(HDTVI, AHD) |

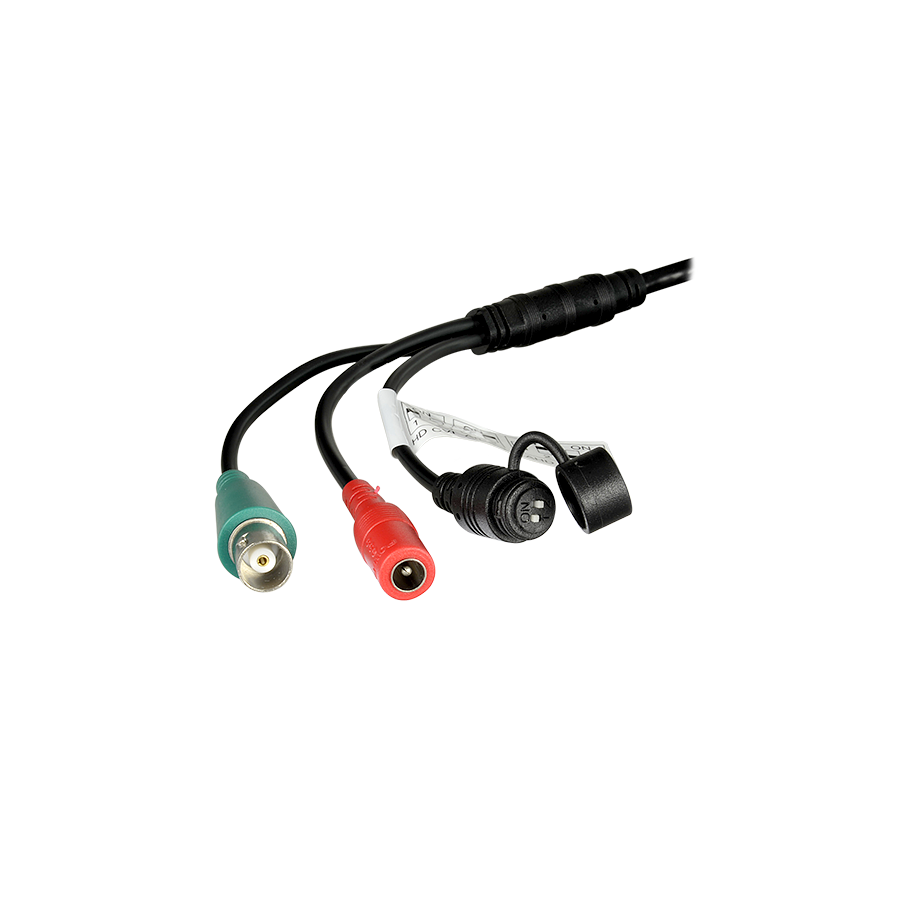

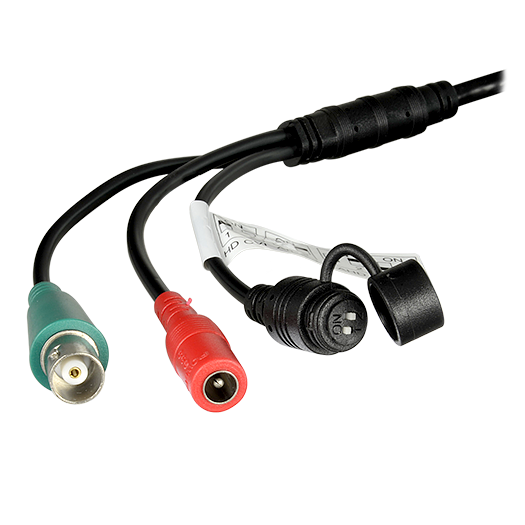

| Video output | 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS |

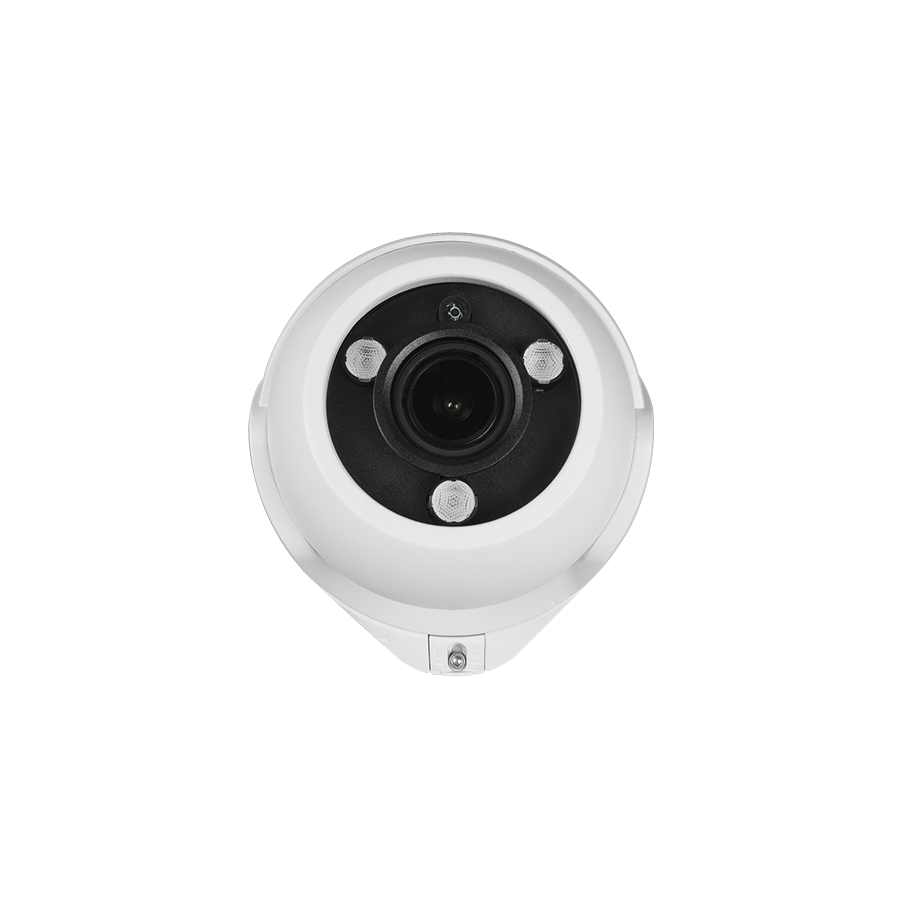

| Minimum illumination | 0 Lux / 3 IR LEDs Array (40 m) |
| Basic functions | OSD menu, Day/Night with IR-CUT (ICR) |
| Configurable OSD functions | WDR 120dB, BLC, 3D-NR, AE, ATW, AWB, AGC, Smart IR |
| Lens | 2.7~13.5 mm Motorised Autofocus Lens |
| Power | DC 12 V / 1000 mA max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10o C ~ +50o C |
| Dimensions | 280 (D) x 60 (W) x 80 (H) mm |

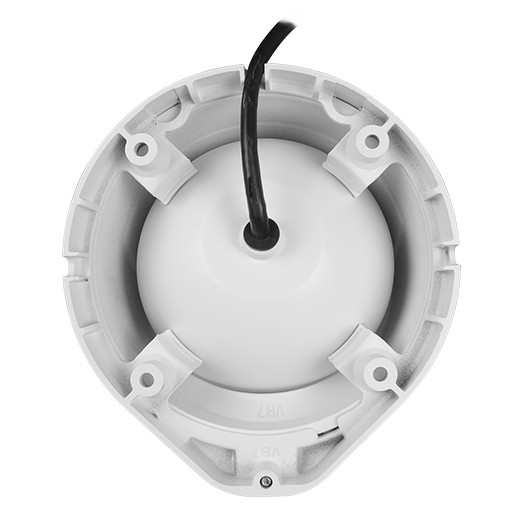

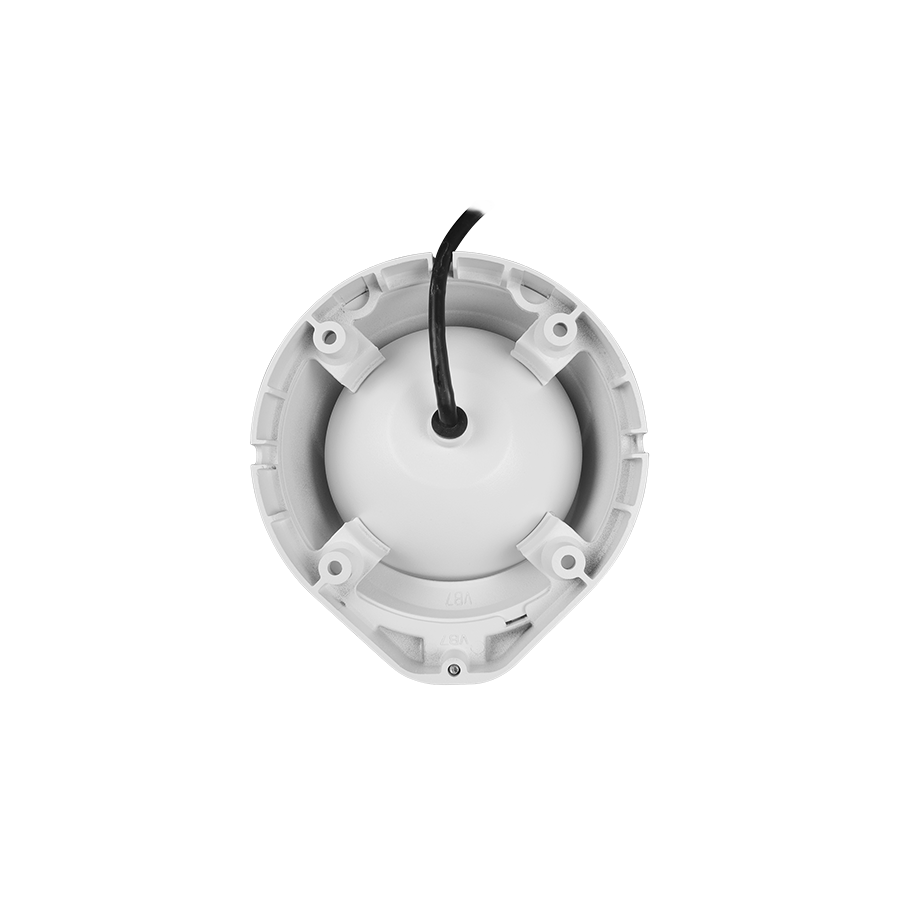

| Base diameter | 4 screws 70x70 mm |
| Weight | 500 g |
