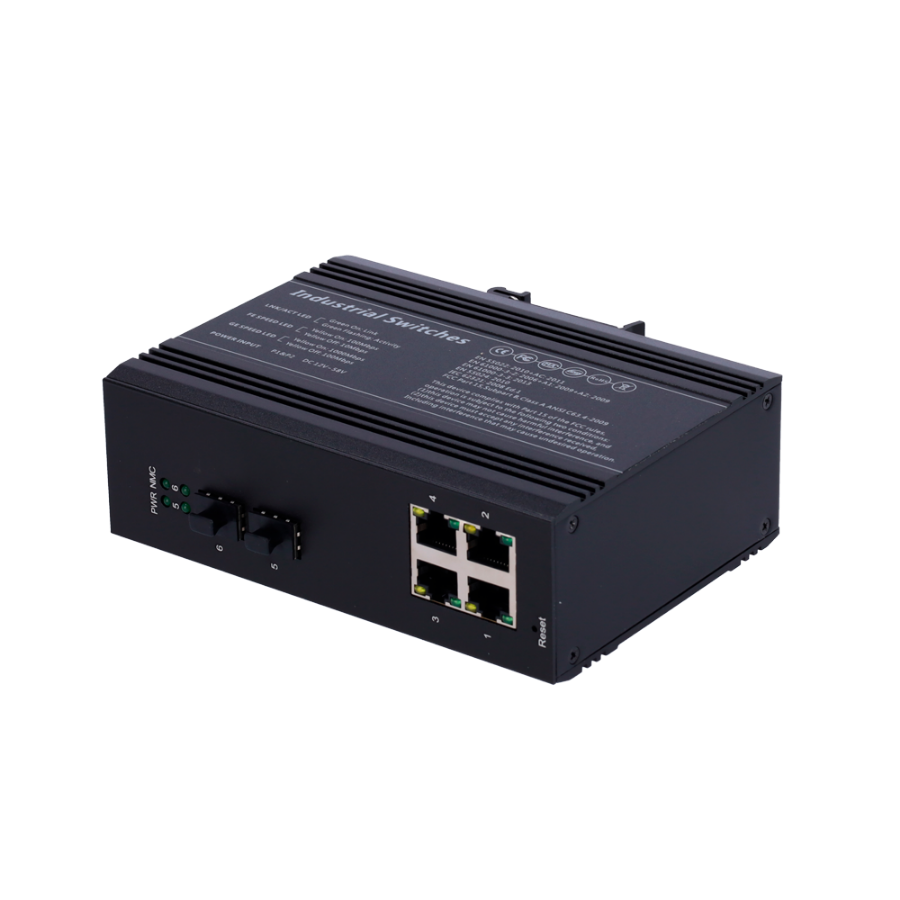

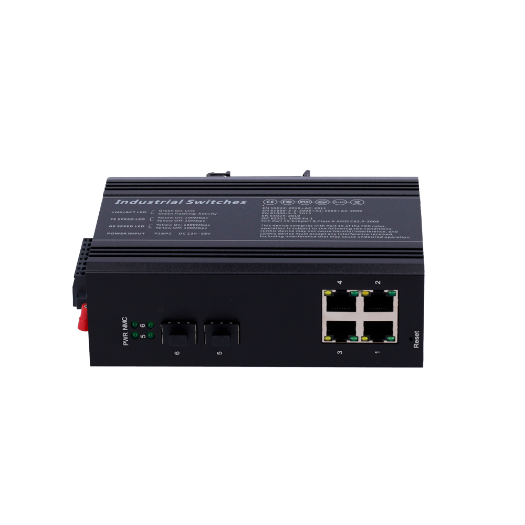

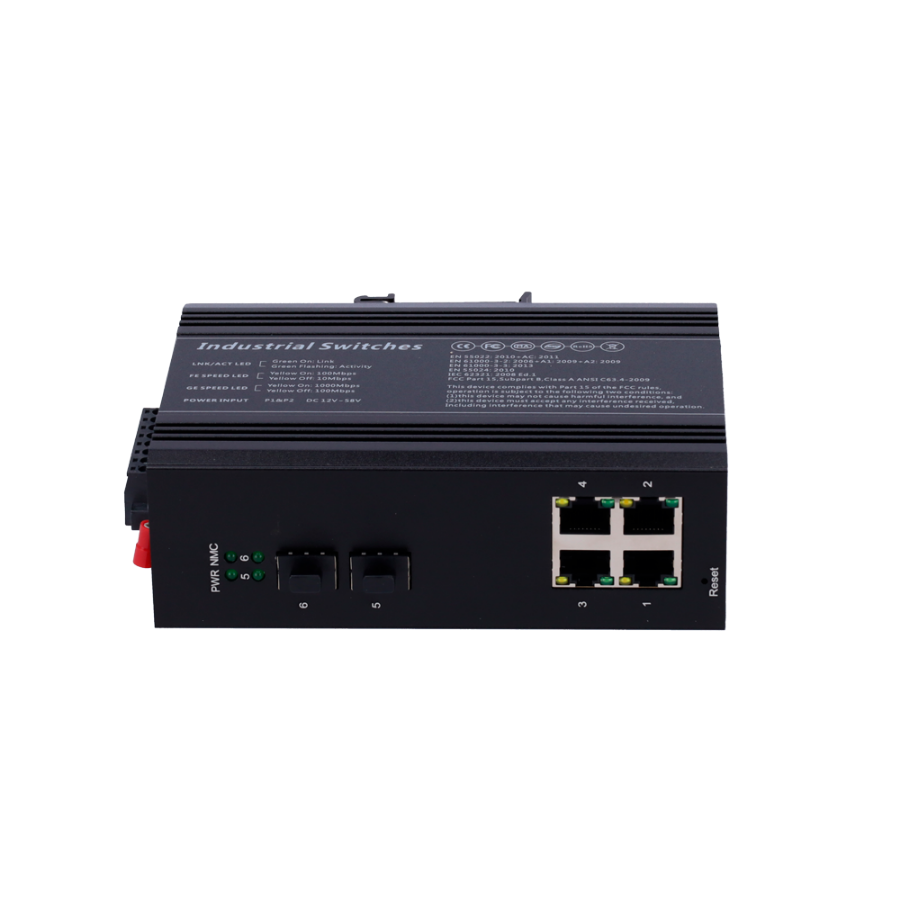

| Interface | 4 Ports RJ45 Gigabit + 2 SFP Gigabit Ports |
| PoE characteristics | Up to 90W ports 1 or 2 IEEE802.3bt Hi-PoEUp to 30W ports 3-4 IEEE802.3af/at PoE/PoE+Maximum 120W |
| Extended PoE | Up to 250mThe port must be forced to 10Mbps |
| Supported Topologies | Ring / Star / Bus / Tree |
| Physical Layer Protocols | MDX/MDIX/Flow Control |
| Network Protocols | VLAN/STP/RSTP/MSTP/SNMP/IGMP Snooping/802.1x/Port Isolation/QinQ/ERPS |
| Management Protocols | SNMP/CLI/Console/WebUI/SSH/Telnet/Rmon |
| Quality of service | Highlighting and priority mappingSupports SP and WRR algorithmsRate limitQoS-based policies |
| Link Aggregation | Up to 12 groups |
| Jumbo Frame | 10Kbyes |
| ACL | Supports 500 ACL of standard and extended type |
| Switching Capacity | 36Gbps |
| MAC Table | 16K |
| Packet forwarding rate | 26,78Mbps |
| Buffer | 12M |

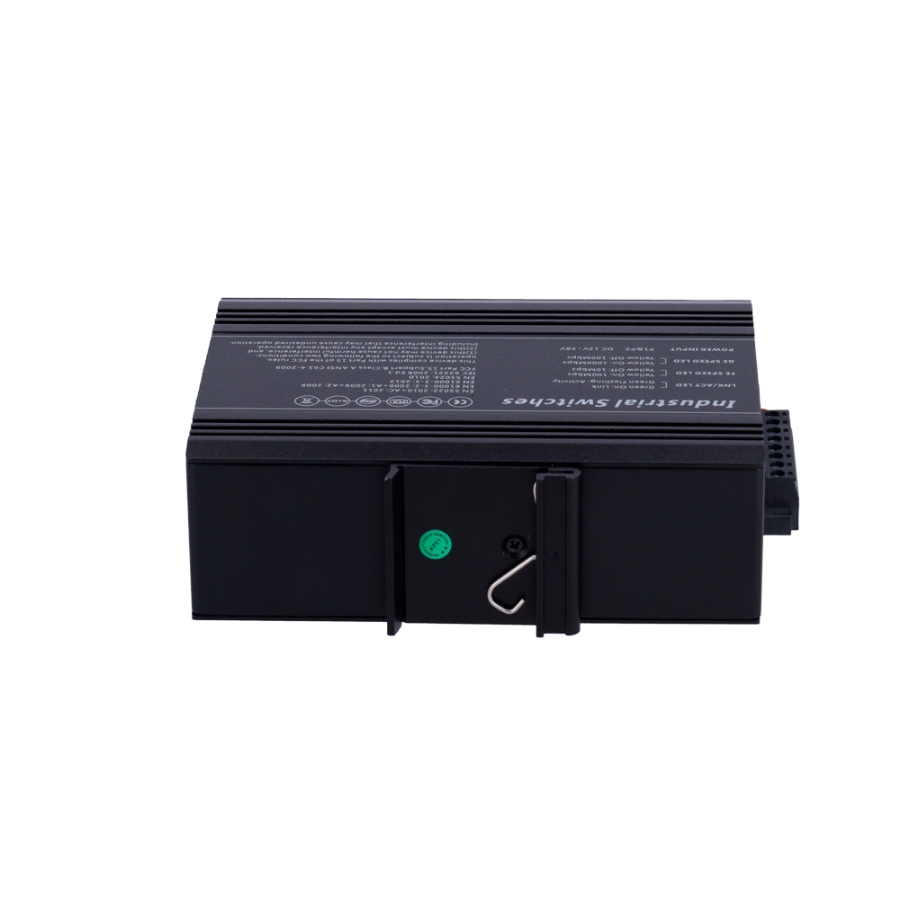

| Installation | DIN rail |

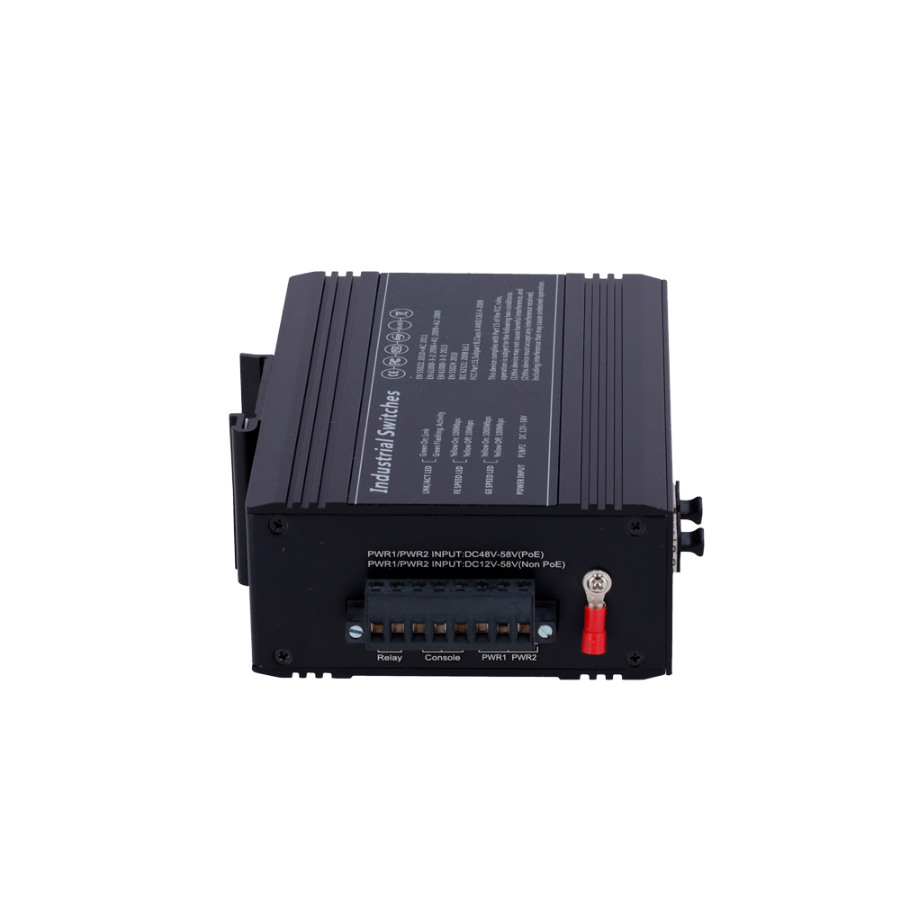

| Power | DC 48 V ~ 58 V |
| Dimensions | 48 (D) x 104 (H) x 143 (W) mm |
| Weight | 580 g |
| Operating temperature | -40o C ~ 75o C |
