| Cameras | x1 channel 4K for inside loadx1 channel 1080P for the outside of the load |
| Storage | x1 Slot for micro SD 256GB included |
| Wifi | Supported, external antenna |
| BLE | BT 5.1 |
| SIM card | Nano SIM |
| Solar Panel | External board for battery charging at 12V DC 10.4Ah/76wh |
| Certificates | FCC, PTCRB, IC, GCF |
| Accelerometer | 6 integrated axes |
| Dimensions | 19.89 x 19.15 x 4.20cm |
| Weight | 0.434g |
| Finished | Aluminium alloy |
| Protection | IP69K |
| Working temperature | -40?~+70? |
| Relative Humidity | 8%-95% |
| Video compression | H.264/H.265 |
| Recording mode | Power on/manual/agenda-driven/event-driven |
| Pre-alarm time | 0-60min |
| Alarm delay | 0-30min |
| Audio | Does not have |
| Wifi | 2.4G 802.11a/b/g/n/ac |
| 3G/4G | LTE FDD: B1/B3/B7/B8/B20/B28AWCDMA: B1/B8GSM: B3/B8 |
| Power | DC 9-36V |
| Solar panel power | 3W |
| Battery | 10.4Ah/76Wh |
| Consumption | 9W |
| Power consumption in energy saving mode | ?0.6W |
| GPS | Localization, speed detection, time synchronization |
| RS232 | x1 channel |
| IO | 2 inputs, 2 outputs |

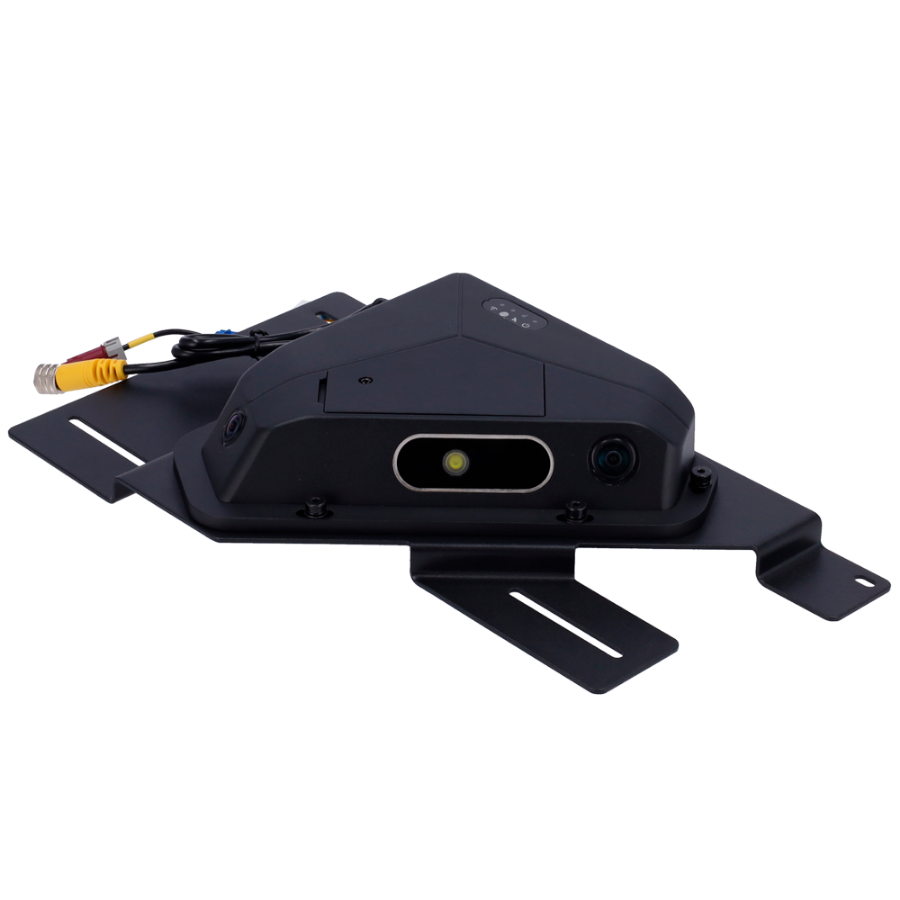

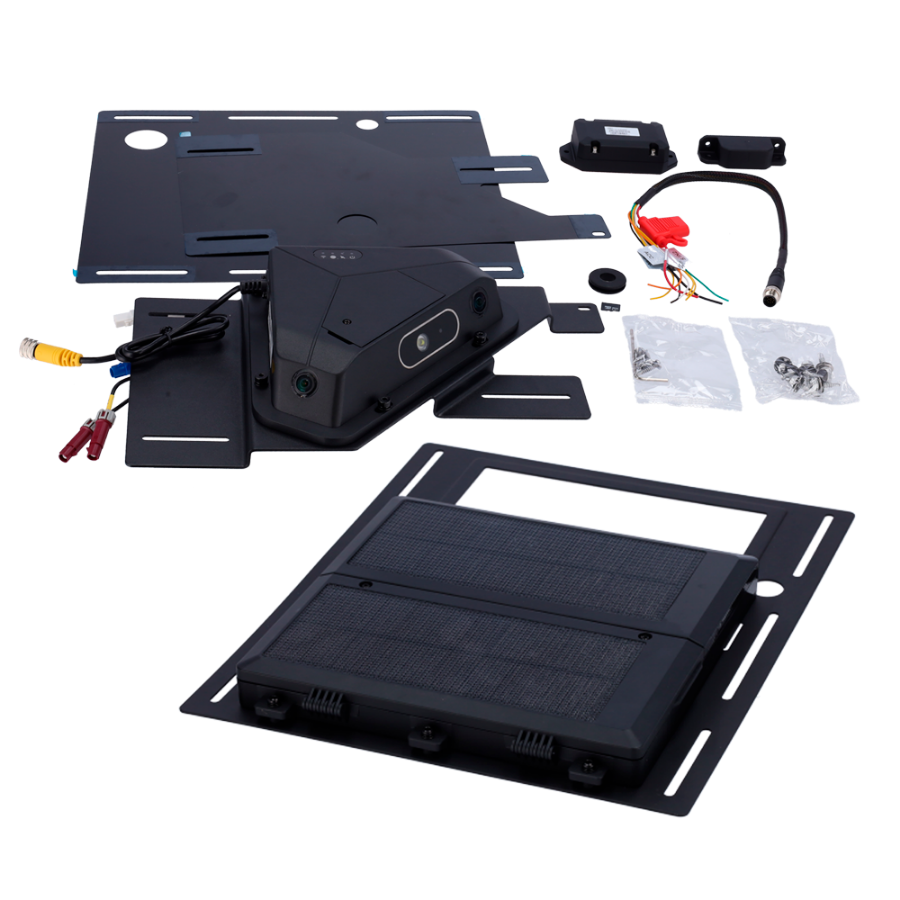

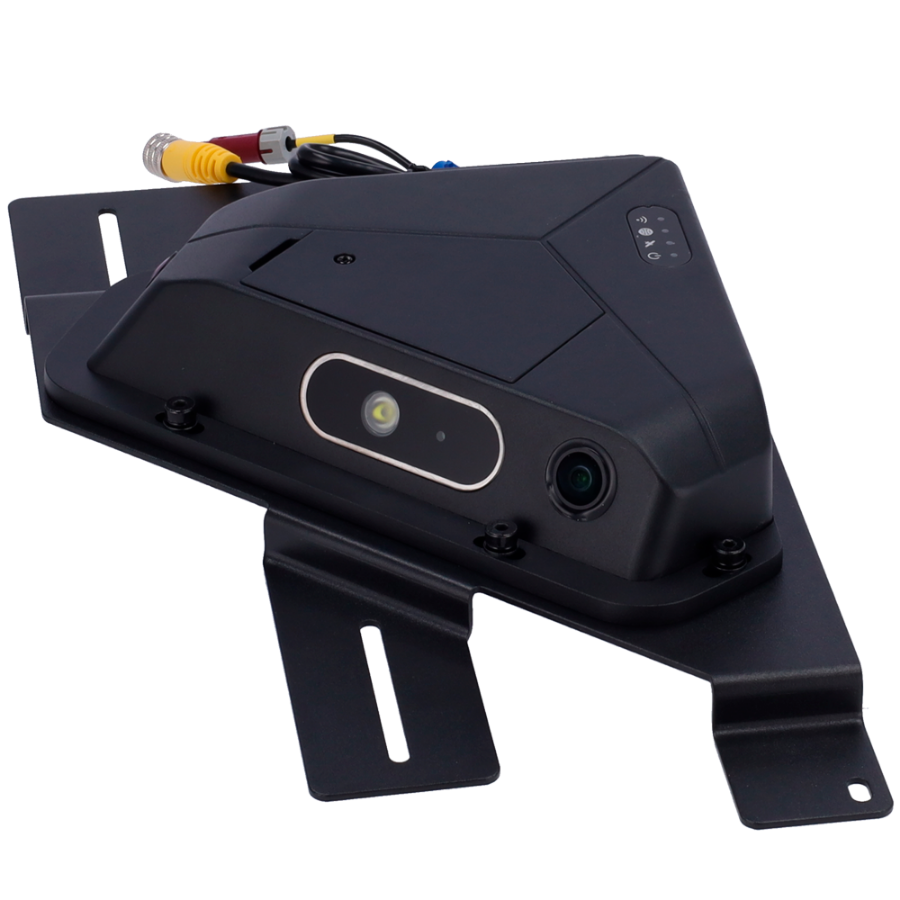

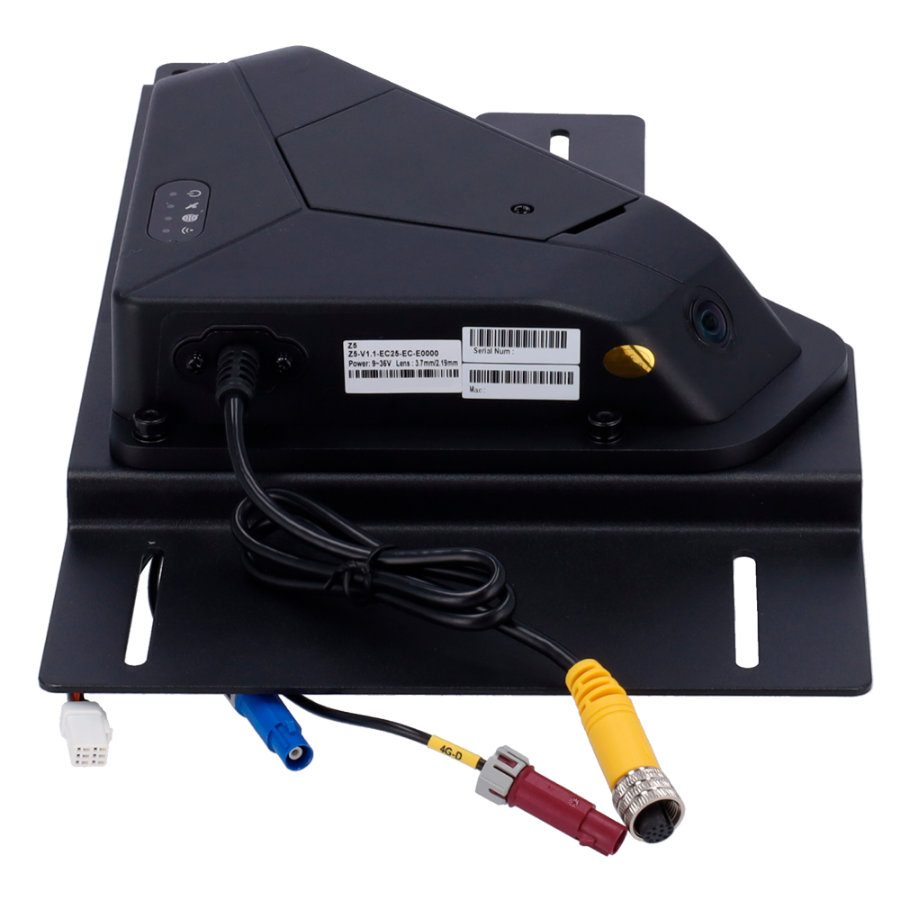

Z5 CARGO is a kit consisting of a device with two cameras for monitoring the loading of trucks and semi-trailers. Allows real-time volume analysis and monitors truck door opening with its camera and wireless magnetic door sensor. Monitoring is done through the FTCLOUD platform. Battery and solar charger for long operating life. (up to 90 days in saving mode)
