| Video | 2 CH: Dashcam+ DSM, Cockpit camera (Embedded) |
| Operating system | Embedded Linux |
| Languages | Chinese, English, Spanish, Portuguese, French, Russian, Japanese, Russian, Japanese |
| Encryption | AES256 |
| Data transmission | TLS1.3 |
| Sensor | Dashcam: 1/2.9" CMOSBooth: 1/2.9" CMOS |
| Resolution | Dashcam: 2 MpxBooth: 2Mpx |
| Audio | Noise-canceling microphone and speaker for two-way communication3W of loudspeaker power |
| Input resolution | Dashcam: 1080P @ 20FPSBooth: 1080P @ 20FPS |
| Recording resolution | Main stream: 1080P@20 FPS(Dashcam)+1080P@20 FPS(Cabin)Sub-stream: 2 × CIF@30 FPS |
| Audio Compression | ADPCM/G.711/G.726 |
| Lens | Dashcam: 4 mm (H: 89o, V: 46o)Booth: 2.2 mm (H: 151o, V: 84o) |
| Lighting | Dashcam - Colour: 0.05Lux/F1.2 with BLC Signal to noise ratio >48dBBooth - WDR with BLC Signal to noise ratio >45dB Integrated IR |
| Summary of Functions | Live viewing, video recording, video playback, network streaming and GPS positioning. ADAS and DSM functions. |
| ADAS | LDW (lane change without turn signal)HMW (closeness to the front vehicle)FCW (collision) |
| DSM | Camera obstructionTiredness (yawning)Cell phone useSmokingDistractionDriverless with vehicle in motionUnbelted |
| 4G Communication | 1x SIM Slot: SIM card slotLTE FDD: B1/B3/B7/B8/B20/B28ALTE TDD: B38/B40/B41WCDMA: B1/B8GSM: B3/B8 |
| Wi-Fi communication | 2.4 GHz (IEEE Std.802.11a/IEEE Std.802.11b/ IEEE Std.802.11g/IEEE Std.802.11n) |
| Bluetooth communication | Supported |
| Image enhancement | Brightness, Chroma, Contrast, Saturation, Sharpness, BLC and DWDR adjustment |
| Video compression | H.265 / H.264 |
| Positioning | GPS L1 1575.42MHzGALILEO E1B/C1GLONASS L1OF 1602MHzSBAS: WAAS, EGNOS, MSAS, GAGAN |
| Sensors | Accelerometer: 6 axes (collision detection, hard cornering, hard braking)Twilight sensor for day/night switching of cabin cameras1x RS2321x CAN |
| Alarms | 2 Inputs, 1 output |
| CAN Bus | Supported |
| USB | x1 mini USB connector |
| Button | Double-tap to switch between client and AP mode |
| Network Protocols | HTTP, TCP, ARP, UDP, UDP, FTP, DHCP, DNS, IPV4, NTP |

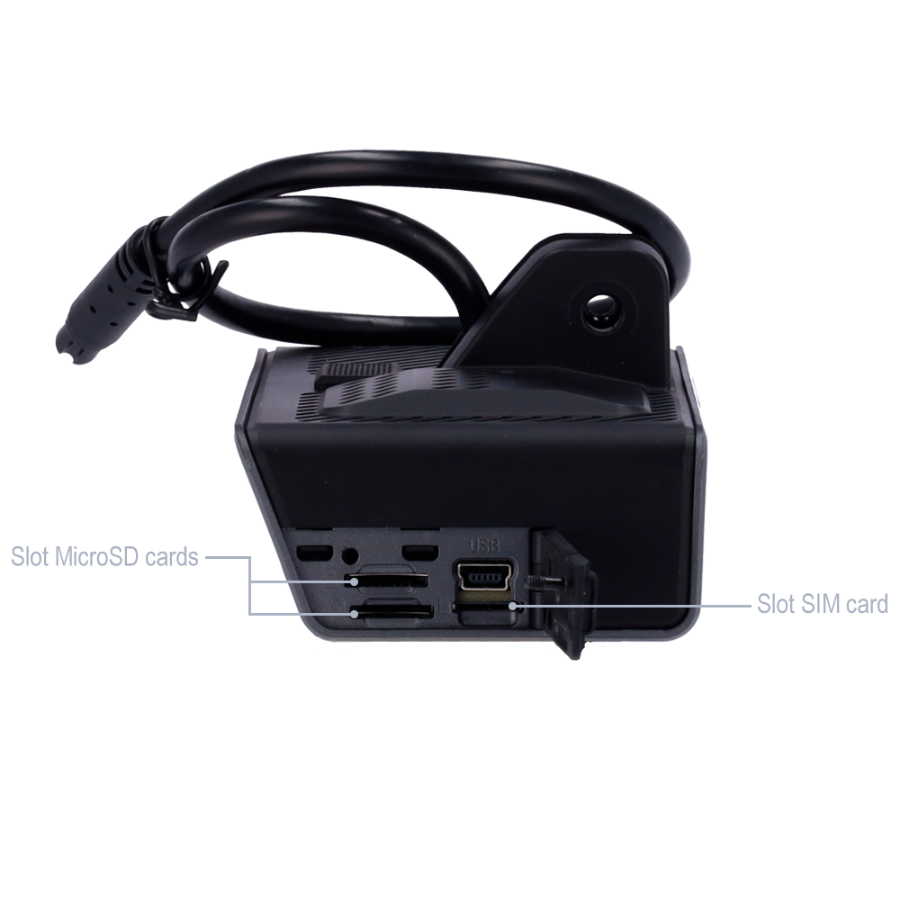

| Storage | 2x MicroSD card slots up to 512GB per slot, requires class 10 |
| Management software | CEIBA II or FTCLOUD centralized server |
| Working temperature | -40oC to 70oC |
| Storing temperature | -40?~+85? |
| Relative Humidity | 15% - 95% no condensation |
| Protection | IP30 |
| Power | DC 9-24V, Max. 11.5W |
| Certificates | Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon |
| Installation | On windshield |
| LED indicators | PowerAlarm indicatorGPS indicatorNetwork indicatorWifi indicatorRecording indicator |
| Dimensions | 116.5 × 67.8 × 110.42 |
| Weight | 313g |

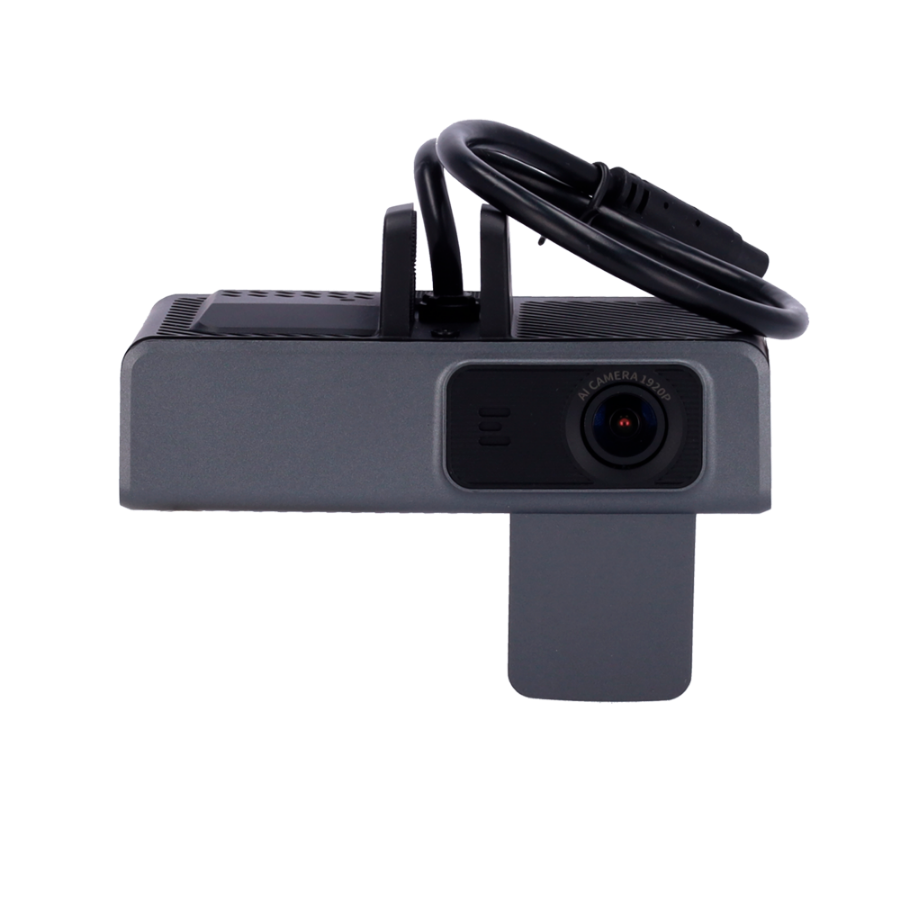

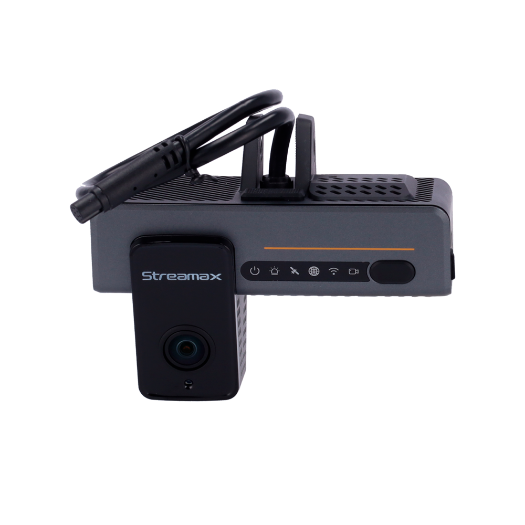

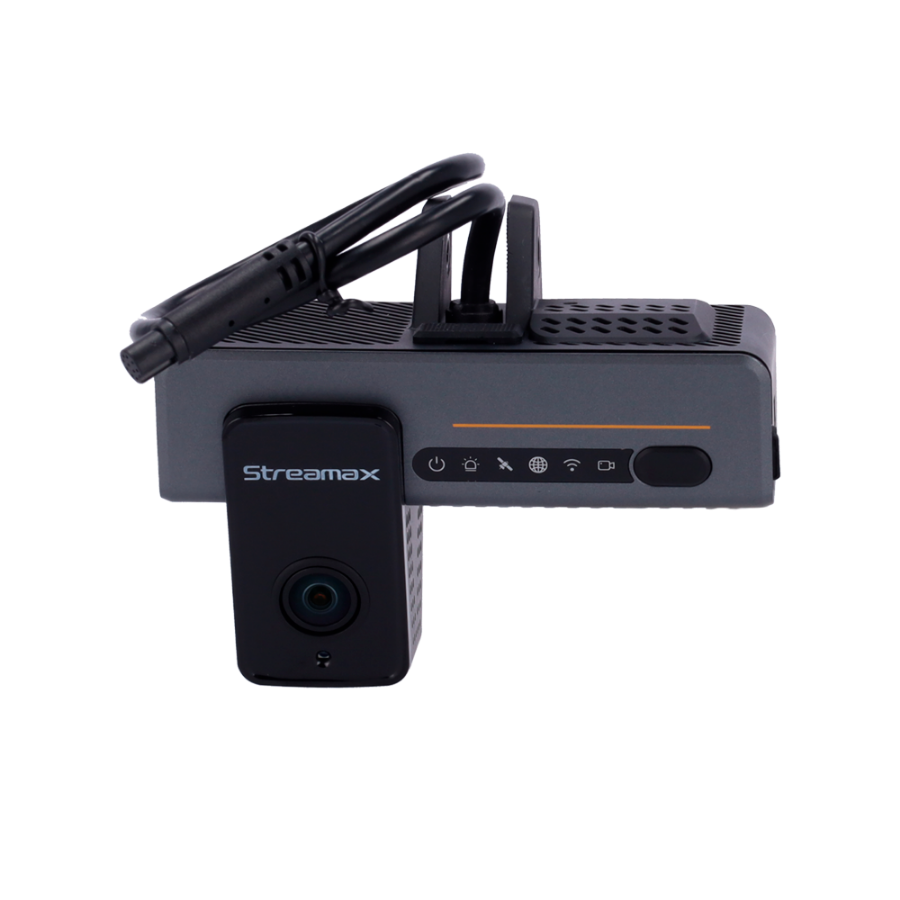

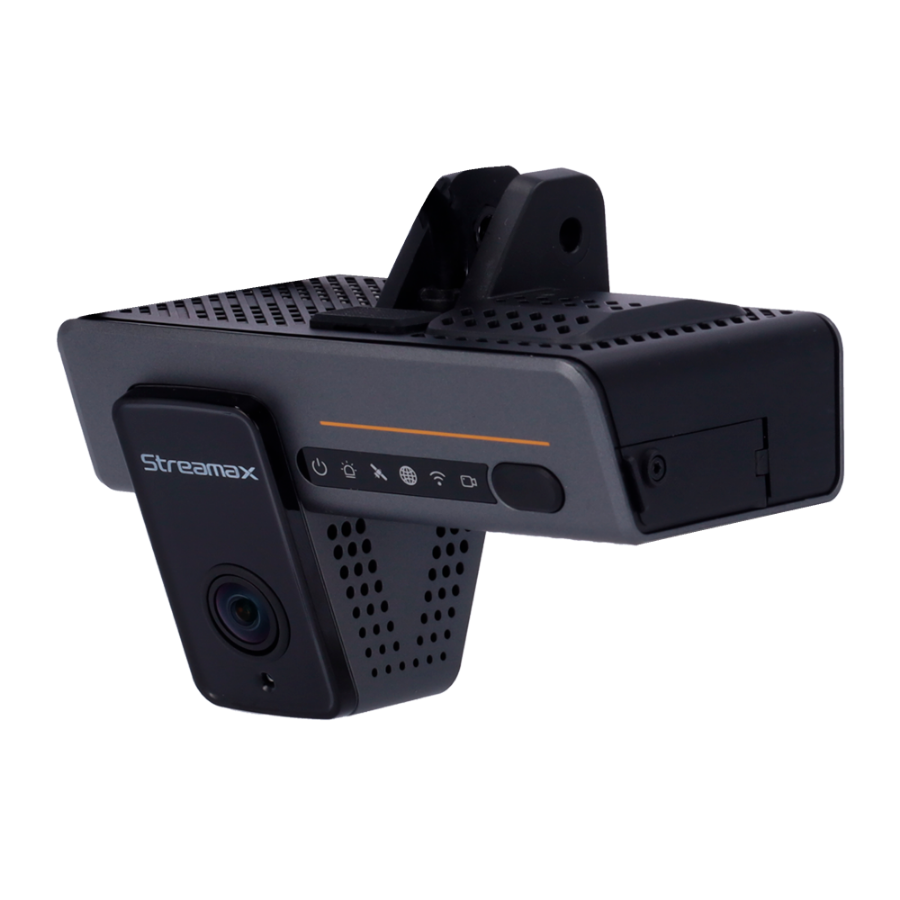

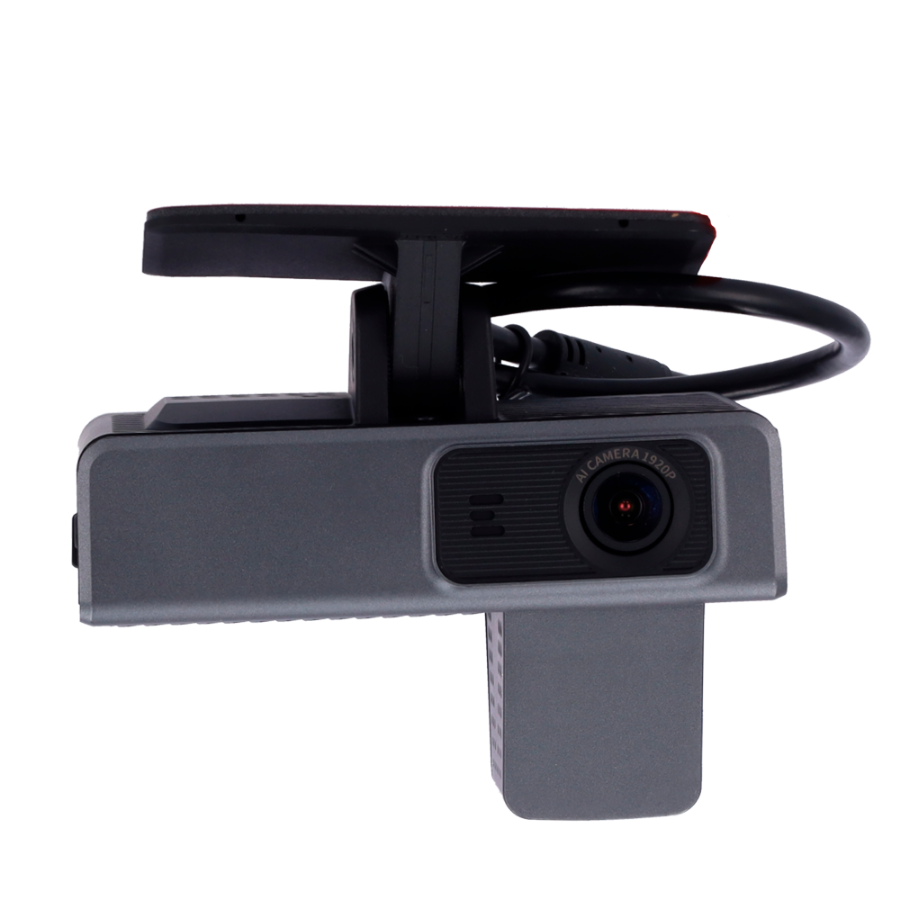

Dashcam with two video channels front and interior of the vehicle. ADAS and DSM compatible.
