| Video | 1 CH: ADAS Camera (Embedded) |
| Video inputs | 2CH additional (1 AHD + 1 IP)*A total of up to 3CH |
| Video output | 1 Video OUT |
| Sensor | ADAS: 1/2.7" CMOS |
| Resolution | ADAS: 5 Mpx |
| Audio | Microphone and Speaker |
| Input resolution | ADAS: 5MP @ 20FPS |
| Recording resolution | Main stream: 5MP@20 FPS(ADAS)+1080P@20 FPS(DSC)+1080P@20 FPS(AHD) + 1080P@20 FPS(IPC)Sub-stream: 4 × CIF@30 FPS |
| Audio Compression | APCM/G.711/G.726 |
| Lens | ADAS: 2.8 mm (H: 103o, V: 71o)DSC: 2.1 mm (H: 148o, V: 82o) |
| S/N | > 48dB |
| Camera type | ADAS:Lane departureCrosswalkCollision RiskFront vehicle safety distance |
| Summary of Functions | Live viewing, video recording, video playback, network streaming and GPS positioning |
| 4G Communication | LTE FDD: B1/B3/B7/B8/B20/B28ALTE TDD: B38/B40/B41WCDMA: B1/B8GSM: B3/B8 |
| Wi-Fi communication | 2.4 GHz |
| Bluetooth communication | Supported |
| Image enhancement | Brightness, Chroma, Contrast, Saturation, Sharpness, BLC and DWDR adjustment |
| Video compression | H.265 / H.264 |
| Positioning | GPS |
| Sensors | Accelerometer: 6 axes (collision detection, hard cornering, hard braking)SIM: SIM card slot1x RS2321x CAN |
| Alarms | 2 Inputs |
| CAN Bus | Supported |
| Network Protocols | HTTP, TCP, ARP, UDP, UDP, FTP, DHCP, DNS, IPV4, NTP |
| Storage | 2x microSD card slots up to 256GB per slot |
| Management software | CEIBA II Centralized Server |
| Temperature range | -40oC to 70oC |
| Power | DC 9-36V, Max. 11.5W |
| Certificates | Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon |

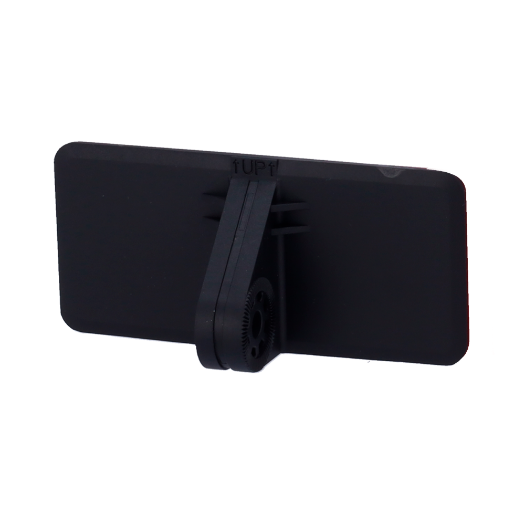

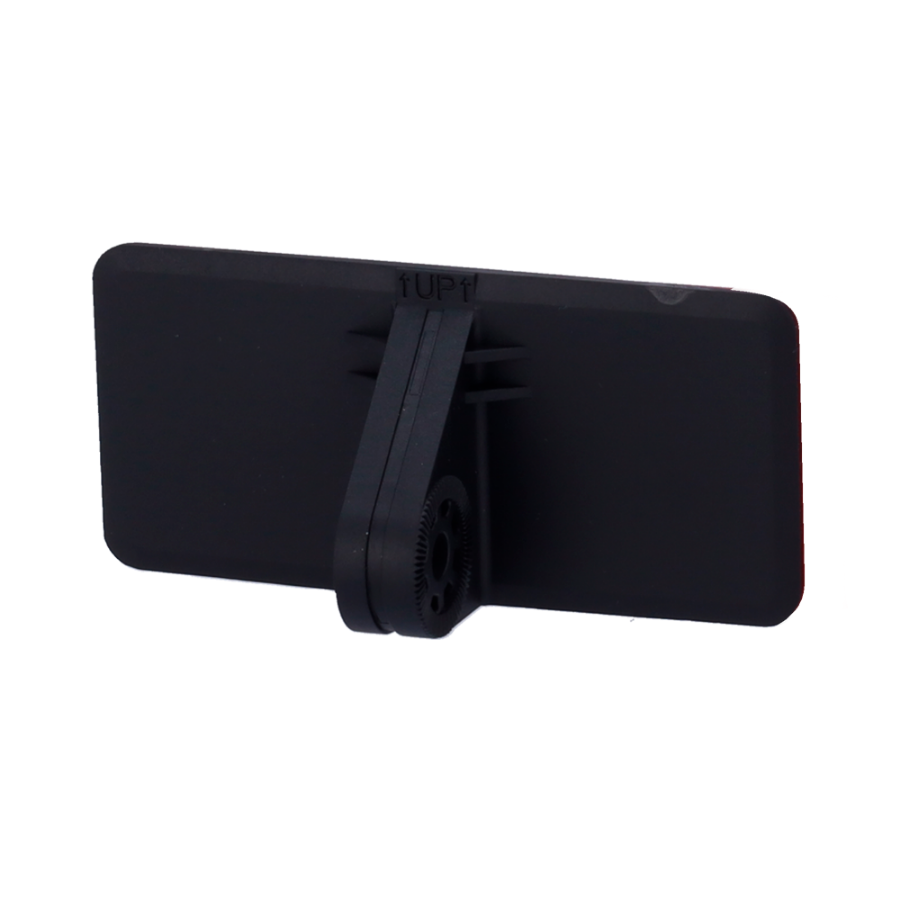

| Installation | On windshield |
