| Reference | SOC-E3N(BLK) |
| Operating voltage | 12 V - 30 V CC |
| Standby current (typical) | 35 µA |
| Maximum current alarm | 40 mA |
| Current out of sensitivity (flashing red LED) | 120 pA |
| Remote indicator unit | 20 mA (max) |
| Operating temperature range | -10 ? to + 50 ? |
| Storage temperature range | -30 ? to + 60 ? |
| Maximum Humidity | 95%RH - Non-condensing (at 40 ?) |
| Maximum Ingress protection rating | IP42 |
| Case Color/Material | Black / ABS |
| Weight (grams) | 95 (excluding base) |
| Diameter (mm) / Height (mm) | 100 / 45 |

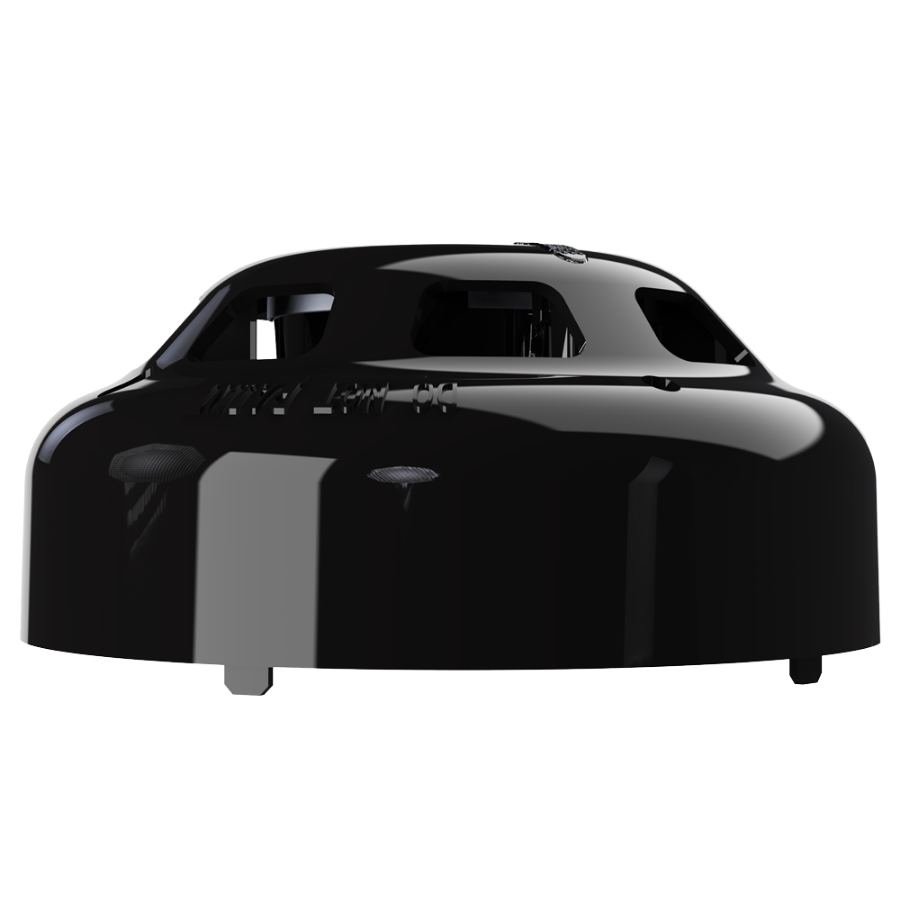

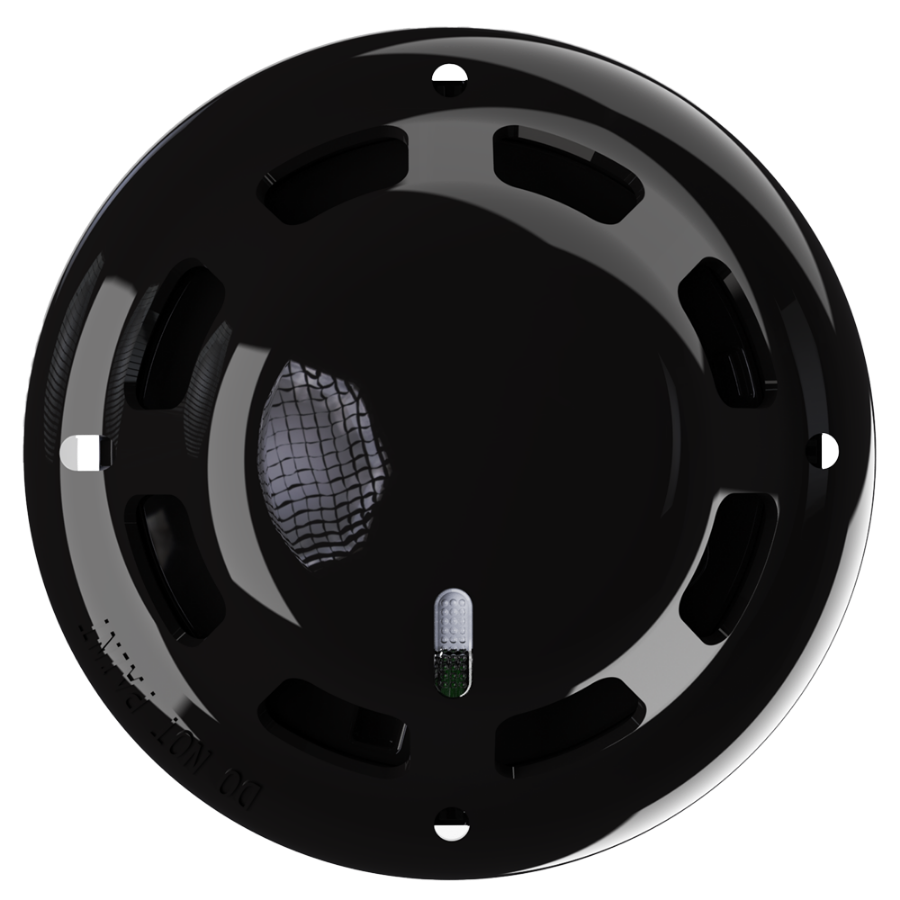

SOC-E3N is an optical smoke detector, fully compatible with most existing conventional systems, and incorporates Hochiki's unique high-performance photoelectric smoke chamber, eliminating the need for ionization detectors in most applications.
Incorporates Drift Compensation technology "ASWV" to ensure that the detector operates at its optimum sensitivity and thus reduce possible false alarms.
If the contamination limit is exceeded, the built-in red LED flashes once every three seconds to give a visual warning. The smoke chamber is easily removed or replaced for cleaning and utilizes a unique baffle design that allows smoke to enter the chamber while blocking ambient light.
