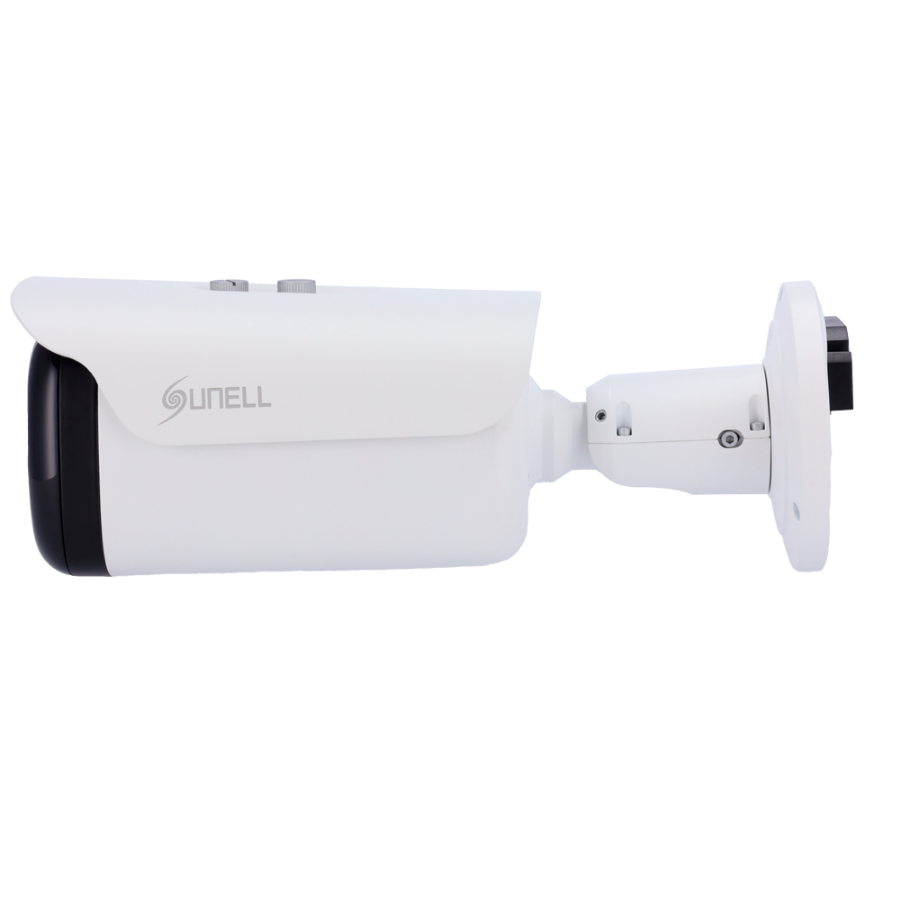

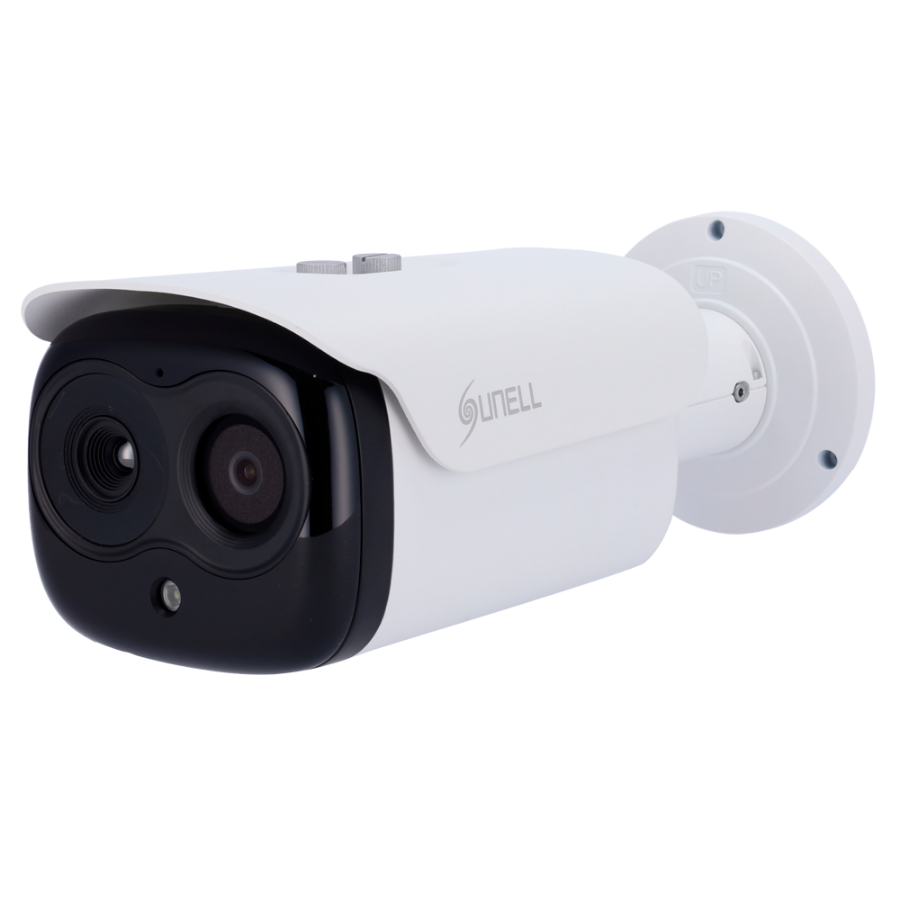

| Brand | Sunell |
| Range | TPC6457DLT |

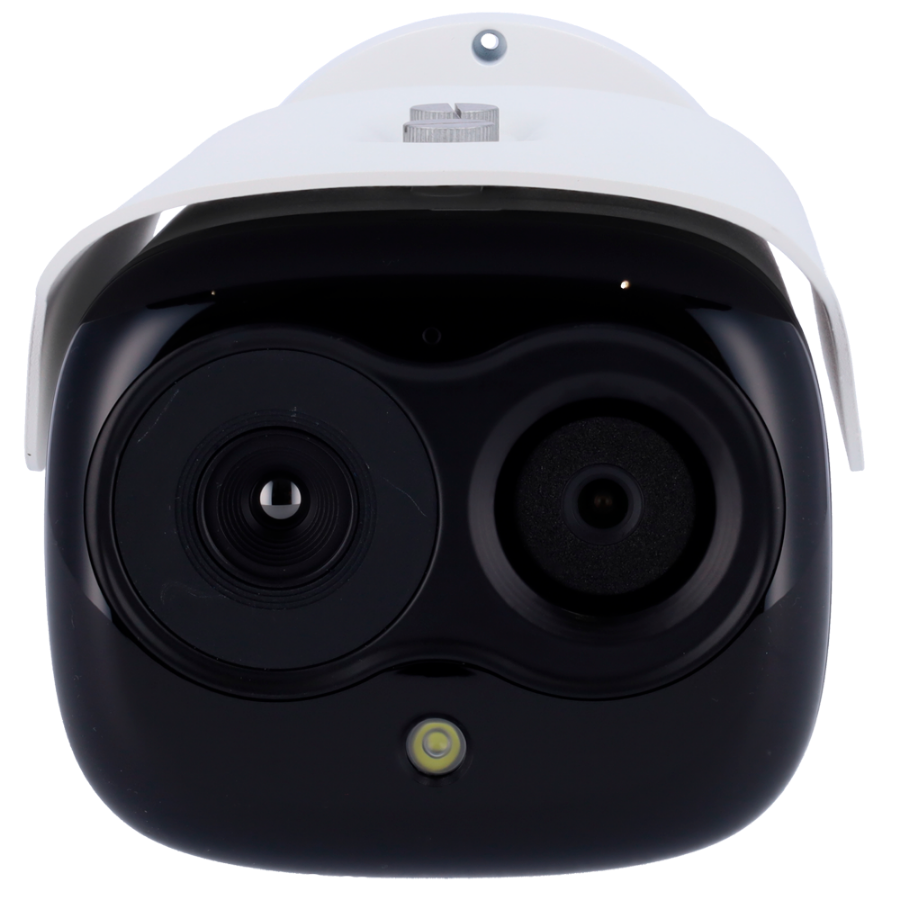

| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 640 x 512 |
| Pixel Pitch | 12µm |
| Thermal lens | 15mm |
| Thermal sensitivity | ?40mK |
| Thermal measurement range | -20~150oC / ±2oC or ±2% |
| Spectral range | LWIR 8~14µm |
| Thermal viewing angle | 32° (H) x 26° (V) |
| Visible sensor | 1/1.8" CMOS |
| Visible sensor resolution | 2688 x 1520 (4Mpx) |
| Visible lens | 6mm |
| Visible viewing angle | 55° (H) x 30° (V) |
| Infrared illuminator | 80m. maximum |
| White light illuminator | Strobe light |
| Bi-spectrum vision parameters | Fusion |
| Main Stream rate | Thermal: 1280×1024, 1280×1720, 640×512 @25/30fpsVisible: 2688×1520, 1920×1080, 1280×720 @25/30fps |
| Sub Stream Rate | Thermal: D1, CIF @25/30fpsVisible: D1, 640×360, CIF @25/30fps |
| Compression | H.265 / H.264 |
| DRI | Human: 624m (D), 156m (R), 78m (I)Vehicle: 1917m (D), 479m (R), 240m (I) |
| Smart Analysis Ranges | Human: 84mVehicle: 190mTemperature Measurement (object 1x1m)): 250mTemperature Measurement (object 0.2x0.2m)): 50mFire detection (object 1x1m): 625mFire detection (object 0.2x0.2m): 125m |
| VCA | Temperature measurement, human and vehicle classification |
| Intelligent analysis | Intrusion, line crossing, double line crossing, loitering, misdirection, area entry, area exit (all support accurate person/vehicle detection), people counting |
| Advanced intelligent analysis | Smoker detection, smoke and flame detection, fire detection |
| Temperature rules | Full window, point, line and region (up to 20 rules simultaneously) |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 Input / 1 Output |
| Built-in microphone | Supported |
| Built-in speaker | Supported, alarm sound transmission up to 150m (wooded environment) |

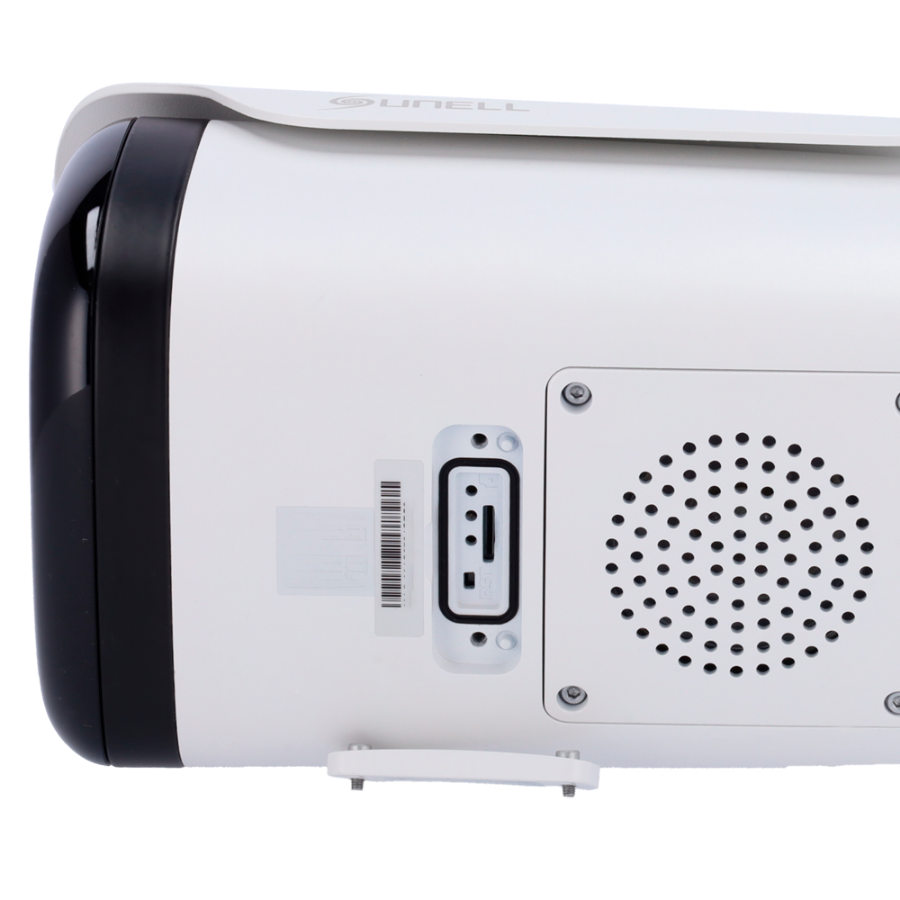

| Internal memory | SD card slot up to 256 GB |
| Network interface | Ethernet 10/100 BaseT |
| Communication | RS-485 |
| Remote access | Web Browser, PC VMS Software (SunView) |
| Interoperability | ONVIF, API, SDK |
| Power | DC 12V, 8W max.PoE IEEE802.3af |
| Temp. operation | -40oC~+60oC, <90% RH |
| Grado de protección | Impermeable IP66NEMA 4X |
| Certificaciones | CE-EMC (EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014, EN 61000-6-3:2007+A1:2011+AC:2012, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019))FCC (FCC 47 CFR 15, Subpart B, ANSI |
| Dimensiones | 327.4mm ×140.04mm × 120.72mm |
| Peso | 2.0Kg con lente 50mm |
