| Brand | Sunell |
| Thermal sensor | 640x512/12µm VOx |
| Main Stream rate | 1280x1024, 1280x720, 640x512 (25fps) |
| Extra Stream rate | 640x512, CIF (25fps) |
| Compression | H.265 / H.264 |
| Pixel Size | 12µm |
| Lens | 35 mm |
| Viewing angle | 12o x 10o |
| Focus | Free focus |
| Thermal sensitivity | ?40mK |
| Spectral range | 8~14µm |
| Pallets | Up to 17 modes (white hot, black hot, red hot, rainbow, etc.) |
| Intelligent functions | Temperature sensing, human and vehicle detection, ship detection |
| Range of Detectable Temperatures | -20oC to 150oC (from -4oF to 302oF)) |
| Temperature Accuracy | ±2oC / ±2% |
| Temperature measurement | Supports 3 rule types (Point, Area and Line) |
| VCA ranges | Fire recognition: 0mPerson recognition: 0mVehicle recognition: 0m |

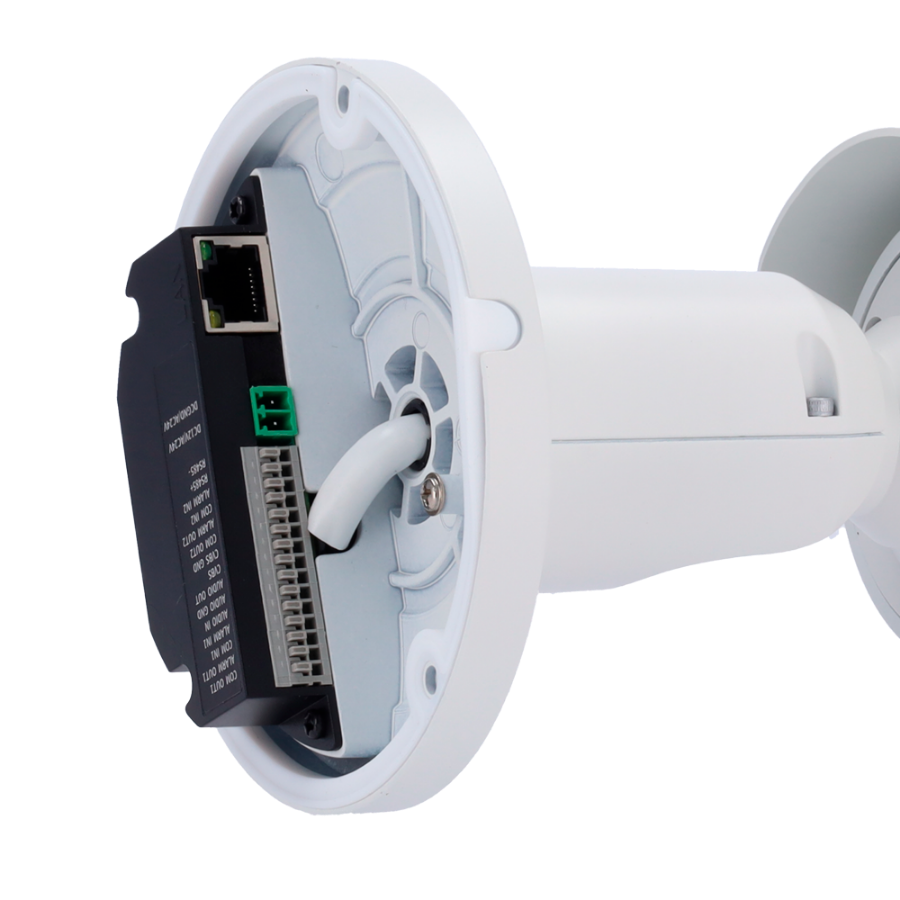

| Audio | 1 Input / 1 Output |
| Alarm | 2 inputs / 2 relay outputs |

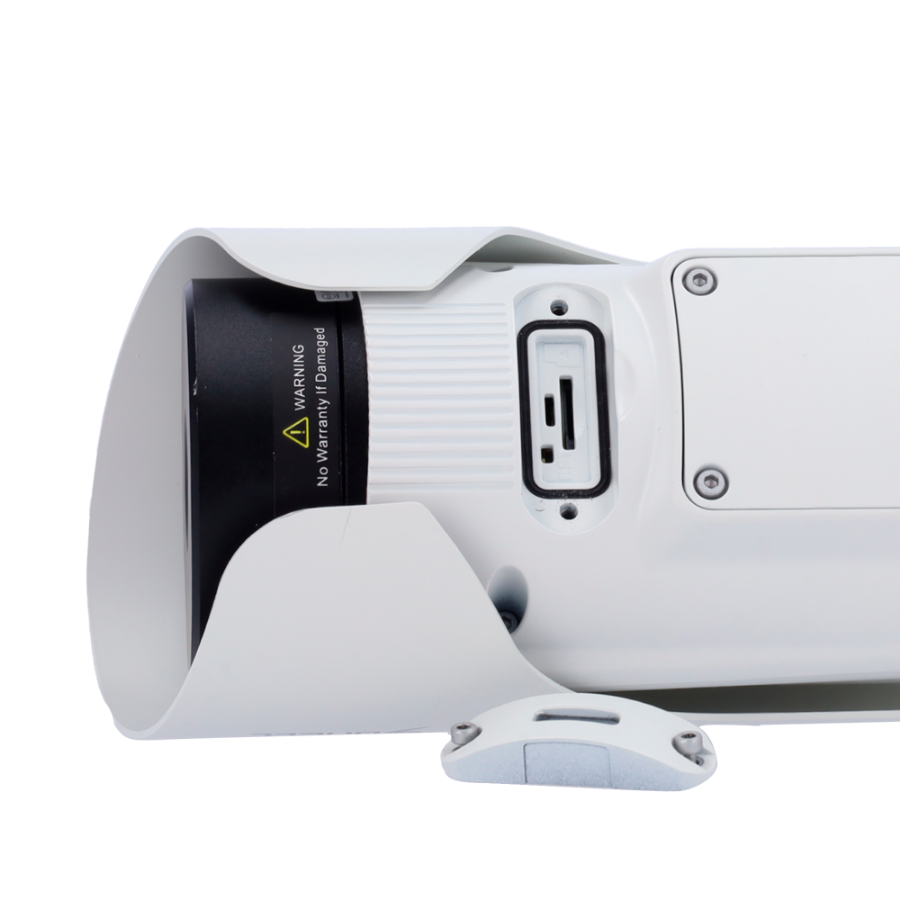

| Internal memory | Micro SD card up to 256GB (not included) |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF & Private Protocol |
| Power | 12VDC / 5W, PoE IEEE802.3af |
| Temp. operation | -40oC ~ +60oC |
| Degree of protection | IP66NEMA 4X |
| Material | Metallic |
| Dimensions | 387,6mm x 120,5mm (O) |
| Weight | 1850g |
| Certificates | NDAA / CE / FCC |
