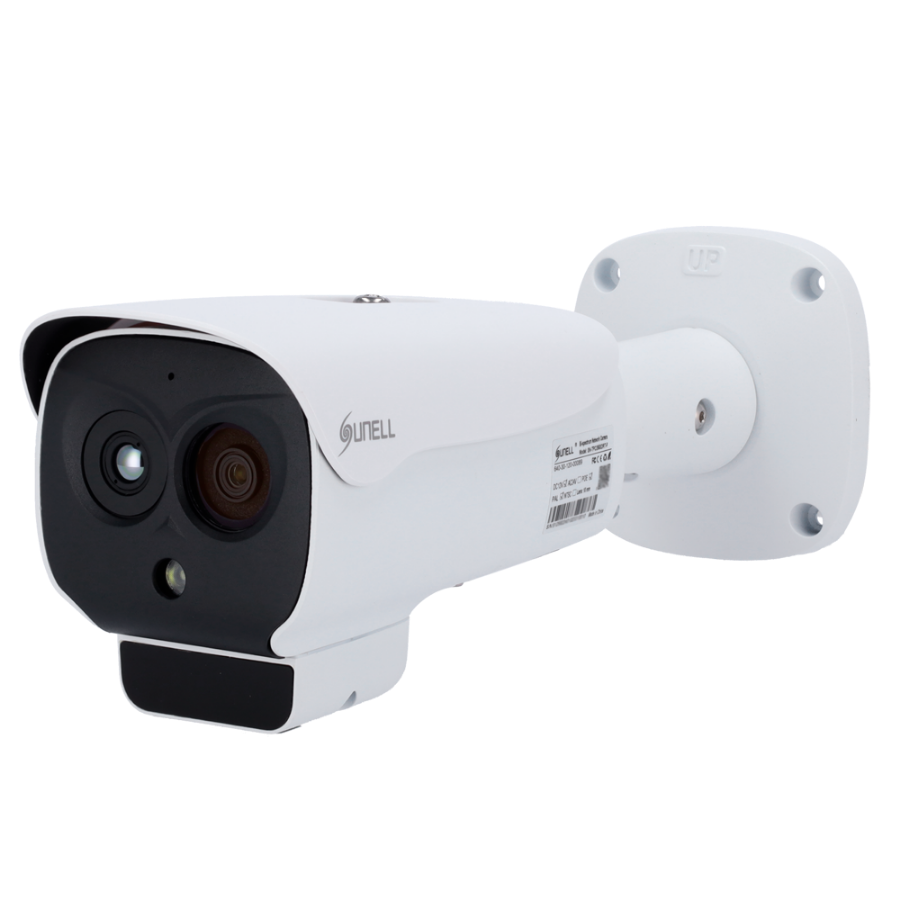

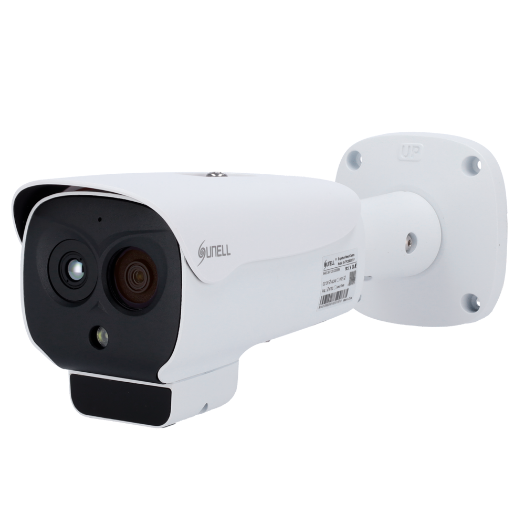

| Brand | Sunell |
| Thermal sensor | 256x192 Vanadium Oxide |
| Optical sensor | 1/2.7” Progressive Scan CMOS 4 Megapixel |
| Main Stream rate | 704×576 (1~25FPS) Thermal2880x1620, 2560x1440, 2304x1296, 1920×1080, 1280×720 (1~25FPS) Optical |
| Extra Stream rate | D1, CIF, 256x192 (1~25FPS) ThermalD1/VGA (1~25FPS) Optical |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 3,5mm (Term) / 4mm (Opt) |
| Range performance | Human: 146 m. (D) / 36 m. (R) / 18 m. (I)Vehicle: 447 m. (D) / 112 m. (R) / 56 m. (I) |
| VCA ranges | Human detection: 30 m.Vehicle detection: 90 m.Temperature measurement (0.2x0.2m): 11,7 m.Temperature measurement (1x1m): 58,3 m.Fire detection (0.2x0.2m.): 41,7 m.Smoking detection: 13 m. |
| Viewing angle | 48°×36° (Term) / 92°×46° (Opt) |
| Thermal sensitivity | ?50mK (0.06oC) |
| Thermal measurement range | -20 ~150oC / ±2oC |
| Spectral range | LWIR 8~14µm |
| Pitch detector | 12µm |
| VCA | Up to 9 VCA rules (single line crossing, double line crossing, intrusion, loitering, wrong direction, area entry and exit, intelligent motion detection, people counting) |
| IR range | Up to 35 m. |
| Sound/light alarm | Supports white light flash |
| Temperature rules | Up to 20 rules (points, areas and lines) |
| Audio In/Out | 1/1 |
| Alarm In/Out | 2/2 |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF |
| Power | 12VDC/24VDC, max.12W; PoE IEEE802.3af, max.12W |
| Temp. operation | -40oC ~ +60oC |
| Degree of protection | Weatherproof IP66 |
| Dimensions | ?303 × 95 × 107 mm. |
| Weight | 1.350 g. |
