| Brand | Sunell |
| Range | PRO |
| Inputs for IP cameras | LAN port up to 32 channels |
| Power over Ethernet | Switch of 16 PoE IEEE802.3af/at ports [%VAR%] (max. 140W) |
| IP compatible cameras | SUNELL (native protocol), ONVIF |
| Bidirectional audio | 1 RCA input / 1 RCA output |
| Video outputs | 1 x HDMI 4K, 1 x HDMI 1080p, 1 x VGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | HDMI 4K: 3840x2160, 1920x1080, 1280x1024, 1024x768HDMI 1080p: 1920x1080, 1280x1024, 1024x768VGA: 1920x1080, 1280x1024, 1024x768 |
| Total bandwidth | 320 Mbps downstream / 320 Mbps upstream |
| Stream Type | Video / Video + Audio |
| Main stream recording | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VAT no |
| Decoding capacity | 1ch@12Mpx, 4ch@4Mpx, 9ch@1080p, 32ch@D1 |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Motion Detection | Yes |
| Alarms | 6 inputs / 2 relay |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Remote access | Web Browser, SunView App Smartphone App, SunView PC Software |
| Remote connections | 8 |
| Internal memory | 4 HDD SATA 3.5" of up to 16 TB each (not included) |
| RAID support | RAID5, RAID6, RAID10 |

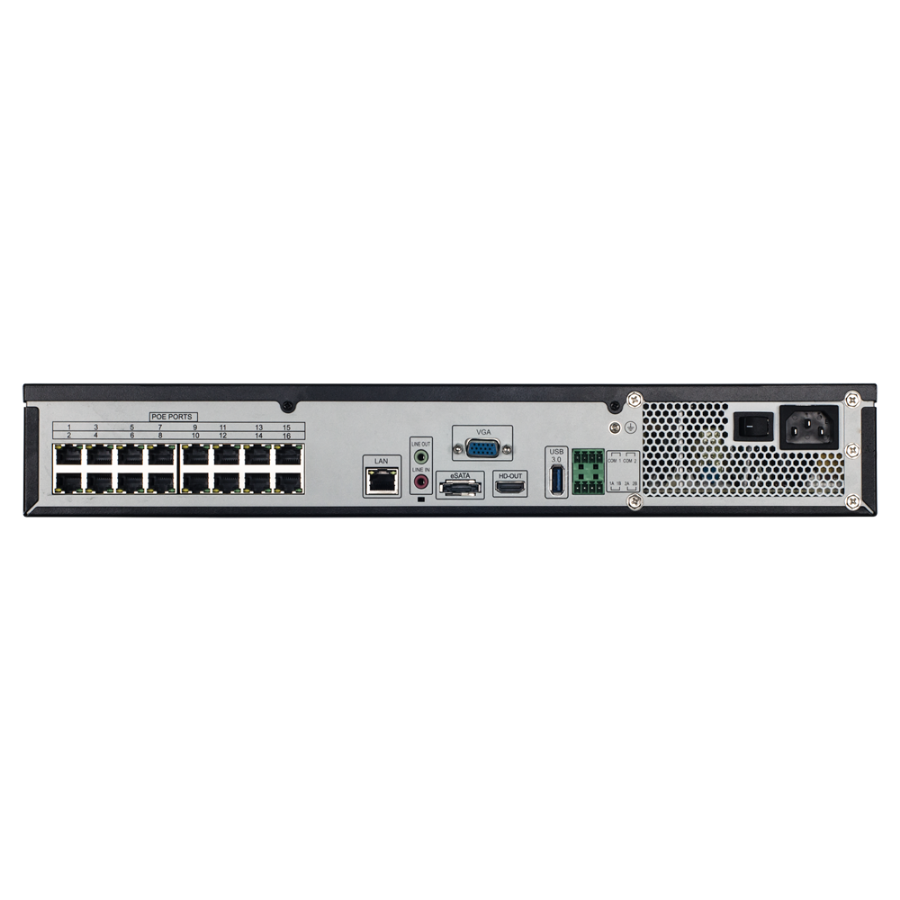

| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear side / 2 x RJ45 10/100/1000Mbps (Ethernet) / 1 x RS-485 / 1 x RS-232 / 1 x eSATA |
| Power | AC 100~240 V, ? 15 W (without HDD) |
| Operating temperature | -10oC ~ 50oC (10%-90% Humidity) |
| Dimensions / weight | 440mm x 368,3mm x 70mm / 4,8 Kg (without HDD) |
| Certifications | CE/FCC/NDAA |
Sunell PRO Series NVR
Artificial intelligence video analytics management
Integrated with advanced artificial intelligence technology and powerful data analytics capabilities.
Defined as the central management site for managing intelligent VCA, people counting and face detection, it supports alarms and statistics to provide quick information, helping to improve video surveillance efficiency.
Fisheye camera distortion correction mode
NVR with fisheye dewarping function perfectly straightens distorted images from fisheye cameras, providing clear panoramic views for effective monitoring and analysis in security settings.
N+1 Hot Spare
The NVR's N+1 "Hot Spare" feature ensures uninterrupted surveillance by automatically activating a backup unit if any active component fails, providing continuous protection without data loss.
High cost and performance protection of video data
The high stability, cost-effectiveness and data availability of Sunell NVRs make video data more secure thanks to their advanced features:
ANR
RAID 0/1/5/6/10
Disk management
Two-factor authentication
