| Brand | Sunell |
| Range | ECO |
| Inputs for IP cameras | LAN port up to 32 channels |
| Power over Ethernet | Switch of 16 PoE IEEE802.3af/at ports [%VAR%] (max. 128W) |
| IP compatible cameras | SUNELL (native protocol), ONVIF |
| Bidirectional audio | 1 RCA input / 1 RCA output |
| Video outputs | 1 x HDMI 4K, 1 x VGA |
| Video compression format | H.265 / H.264 |
| Display resolution | HDMI 4K: 3840x2160, 1920x1080, 1280x1024, 1024x768VGA: 1920x1080, 1280x1024, 1024x768 |
| Total bandwidth | 160Mbps input / 80Mbps output |
| Stream Type | Video / Video + Audio |
| Main stream recording | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VAT no |
| Decoding capacity | 1ch@12Mpx, 4ch@4Mpx, 9ch@1080p, 32ch@D1 |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Motion Detection | Yes |
| Alarms | 8 inputs / 2 relay |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Remote access | Web Browser, SunView App Smartphone App, SunView PC Software |
| Remote connections | 8 |
| Internal memory | 2 SATA HDD 3.5" up to 12TB each (not included) |
| Communication | 2 x USB 2.0 front side, 1 x USB 2.0 rear side / 1 x RJ45 10/100/1000Mbps [%VAR%] (Ethernet) |
| Power | AC 100~240 V, ? 15 W (without HDD) |
| Operating temperature | -10oC ~ 50oC (10%-90% Humidity) |
| Dimensions / weight | 372mm x 311,2mm x 46,4mm / 2,75 Kg (without HDD) |
| Certifications | CE/FCC/NDAA |

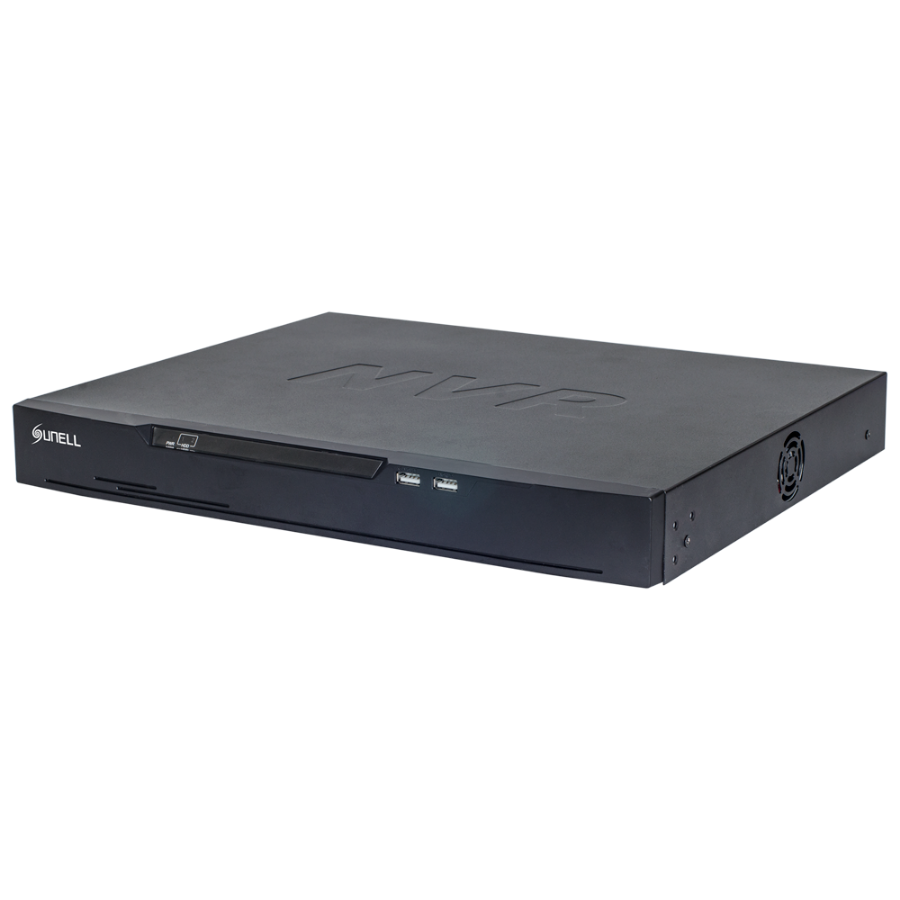

Sunell ECO Series NVR
The high stability, cost-effectiveness and data availability of Sunell NVRs make video data more secure thanks to their advanced features:
Intelligent intrusion detection using NVRs
Intelligent intrusion detection distinguishes people and vehicles from other moving objects to trigger accurate intrusion alarms at perimeters.
Intelligent search
Cameras that support Sunell's intelligent detection technology, which detects people's activity, can also connect to AI-enabled NVRs. Based on the camera metadata recorded on the NVRs hard disk, activate the Image search function and proceed to search for the corresponding playback video. This allows for faster sorting of large amounts of evidence to find precisely what is needed.
ANR (automatic network replenishment)
The ANR function can store video data on the camera storage card when the network between IPC and NVR is disconnected. After network recovery, the NVR automatically retrieves the video data stored in the camera.
