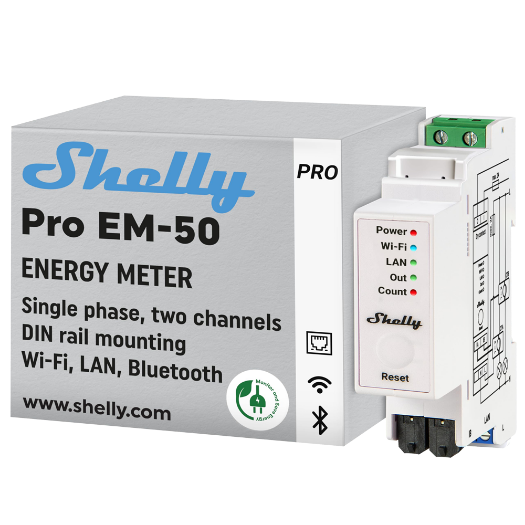

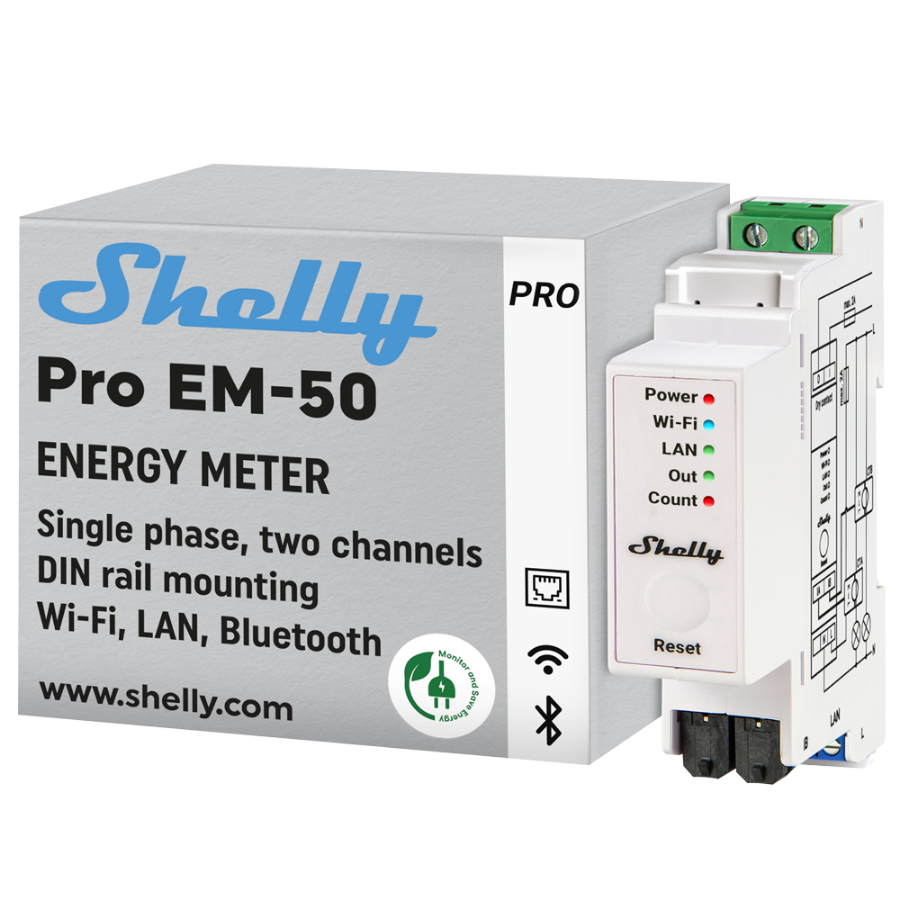

SH-PRO-EM-50 Shelly PRO EM 50 WiFi 2.4 GHz IEEE802.11 b/g/n Consumption meter

Brand: SHELLY

Šifra: SH-PRO-EM-50

GTIN: 3800235268148

168,90 EUR

Visoka dostupnost

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

CPU	ESP32-D0WDQ6
Flash	16 MB
Mounting	DIN rail
AC supply voltage	110 - 240 V, 50/60 Hz
DC supply voltage	N / A
Energy consumption	< 3W
Maximum AC switching voltage	240 volts
Maximum DC switching voltage	N / A
Maximum switching current	2A
Internal temperature sensor	Yes
Voltmeter (RMS)	100 - 260 V
Accuracy of voltmeters	±1%
Ammeters (RMS via CT)	0 - 50 A
Accuracy of ammeters	±1 % (5 - 50 A), ±2 % (0 - 5 A)
Power and energy meters	Active and apparent powerActive and apparent energyPower factor
No load threshold	30 VA per phase
Storage of measurement data	At least 60 data resolution days of 1 min
Data export	CSV for recorded PQ valuesExport in JSON format via RPC
Communication	WiFi 2.4 GHzBluetooth 4.2
Material	Plastic
Dimensions	94 x 19 x 69 mm
Weight	164 g
Webhooks (URL actions)	20 with 5 URL per hook
Script	Yes
MQTT	Yes
COAP	No

Shelly PRO EM
50
Two-channel single-phase energy meter
contactor control
Reports accumulated energy, as well as instantaneous voltage, current, active and apparent power per phase in real time
Power monitoring
Wireless Wifi
Home Automation
Monitor the consumption of the entire electricity installation
Monitoring electricity generated from solar panels
Mounting inside a switch box
Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS
Stores data in a non-volatile recallable memory for up to 60 days in 1 minute intervals
No HUB required
Compatible with Alexa and Google
IOS Android application
