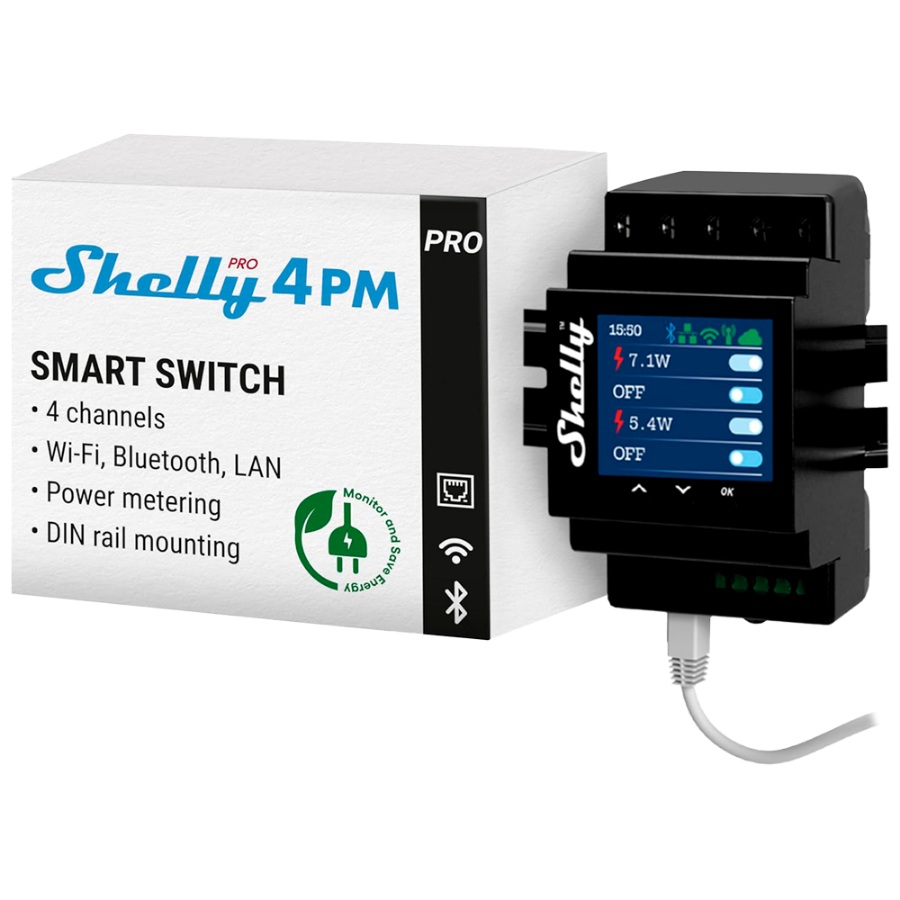

| CPU | ESP32 |
| Flash | 8 MB |
| Power supply | 110-240 V, 50/60 Hz |
| Maximum load | 16A per channel / 40A in total |
| Device power consumption | < 4W |
| Channels | 4 Channels |
| Neutral not required | No |
| Mounting | DIN rail |
| Screen | 1,8 inch color display with navigation keys |
| Roller blind mode | No |
| Maximum AC switching voltage | 240 volts |
| Maximum DC switching voltage | N/A |
| Maximum AC switching current | 16A |
| Maximum DC switching current | N/A |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Temperature Sensor | Yes |
| Communication | WiFi 2.4 GHzBluetooth 4.2LAN |
| Working temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% of relative humidity |
| Material | Plastic |
| Range | Up to 30 m indoors and 50 m outdoors |
| HTTP/HTTPS Webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Intelligent on/off | Yes |
| Local and remote control | Yes |
| Intelligent scenes | Sunrise / Sunset |
| Weekly programming | Yes |
| UL Listed Option | No |
| MQTT | Yes |
| COAP | No |
| Script | mjs |
| Dimensions | 94 x 19 x 69 mm |
| Weight | 75 g |
