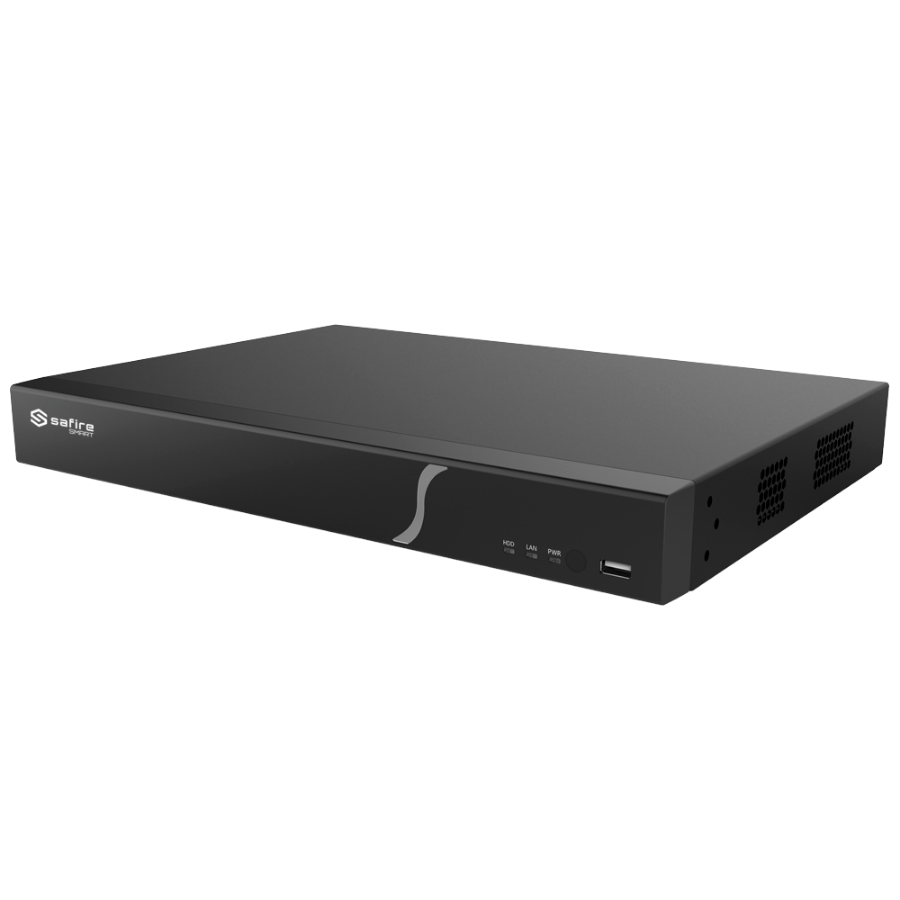

| Brand | Safire |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 8 Channels from BNC (substitution) + 8 (extra) IP channels (up to 8 Mpx) |
| Video outputs | 1 HDMI 4K, 1 VGA, 1 BNC |
| Audio inputs | 8 RCA channels |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Video / audio compression | H.265 / H.264 |
| Display resolution | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768BNC × 1 : CVBS |
| BNC input resolution | TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps |
| Main Stream coding | 4K@6fps /7fps (PAL/NTSC) (only supported by the 1) channel)4K Lite@12fps/15fps (PAL/NTSC)5MP@12fps (PAL / NTSC)5MP Lite@20fps (PAL / NTSC)4MP/3MP@12fps / 15fps (PAL / NTSC)4MPLite/1080P/720P/WD1/D1@25 |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Bit rate | 32 Kbps ~ 5 Mbps |
| Bandwidth | 16 Mbps (Incoming) / 40 Mbps (Outgoing) |
| Alarms | 8 inputs / 2 relay |
| Smart Features | 8CH Intelligent motion detection1CH with detection of human and vehicle crossing line or intrusion in area |
| Recording method | Manual, scheduled, smart events |
| Backup | USB / Network |
| Internal memory | 2 HDD SATA 3.5" of up to 10TB (not included) |
| Communication | 1 x USB 3.0, 1 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) / 1 x e-SATA / RS485 |
| Remote access | Web Browser, Safire Smartphone App and Safire Smart VMS software |
| Power | DC 12 V / 4 A (Consumption without HDD < 15 W) |
| Dimensions / weight | 45 (H) x 380 (W) x 268 (D) mm / 1.2 Kg |
