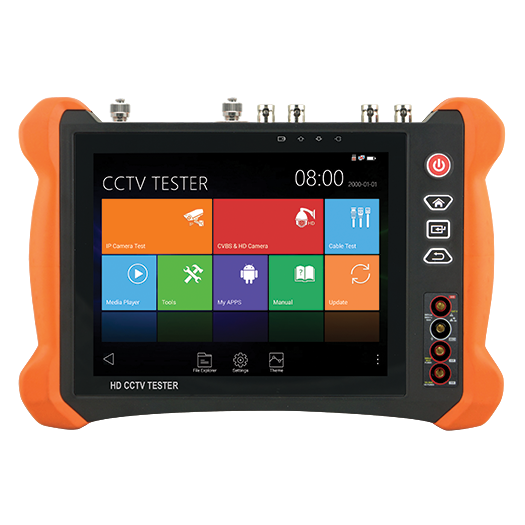

| Brand | Safire |
| Screen | TFT-LCD 8” resolution 2048x1536 |
| Formats | HDTVI / HDCVI (8 MP, 12.5 / 15 FPS), AHD (8Mpx, 15 FPS), Analog CVBS, IP (8 MP) |
| Video settings | Brightness, contrast and saturation |

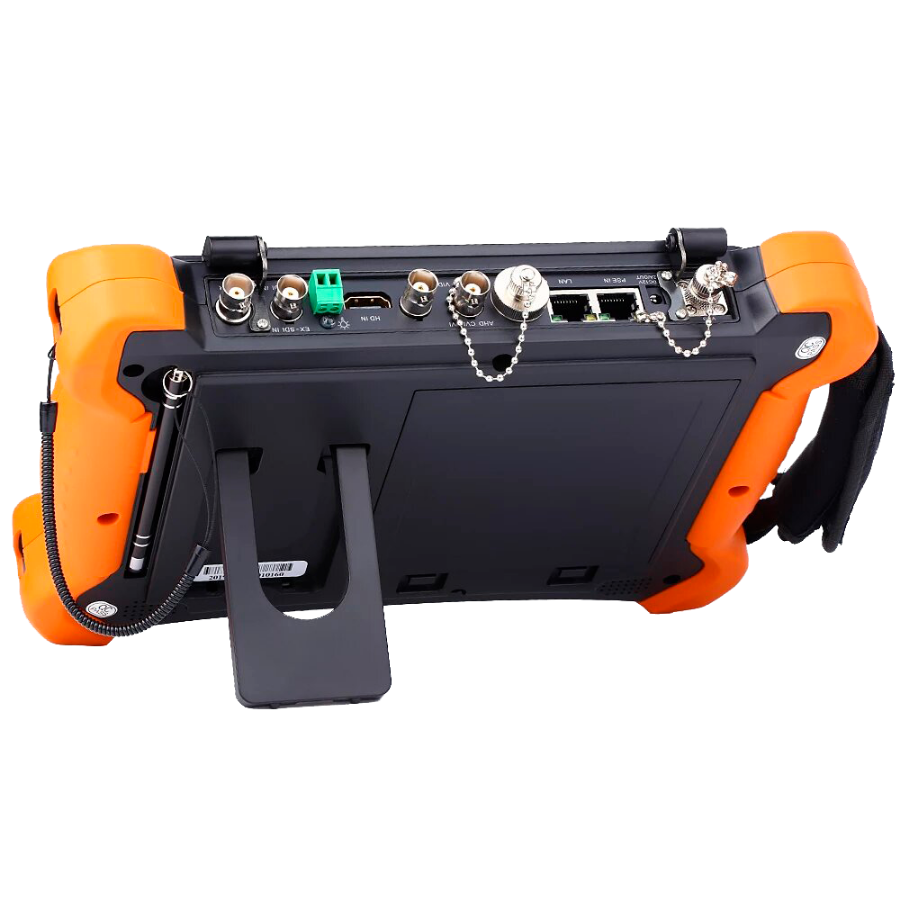

| Inputs | 1 x BNC (TVI/CVI/AHD/CVBS), 1 x RS485, 1x <RJ45 (UTC/SCAN), 1 x RJ45 TDR, 1 x RJ45 PSE 1 x HDMI (4K 60fps), <1 x Audio, 1 x VLS, 1 x OPM |

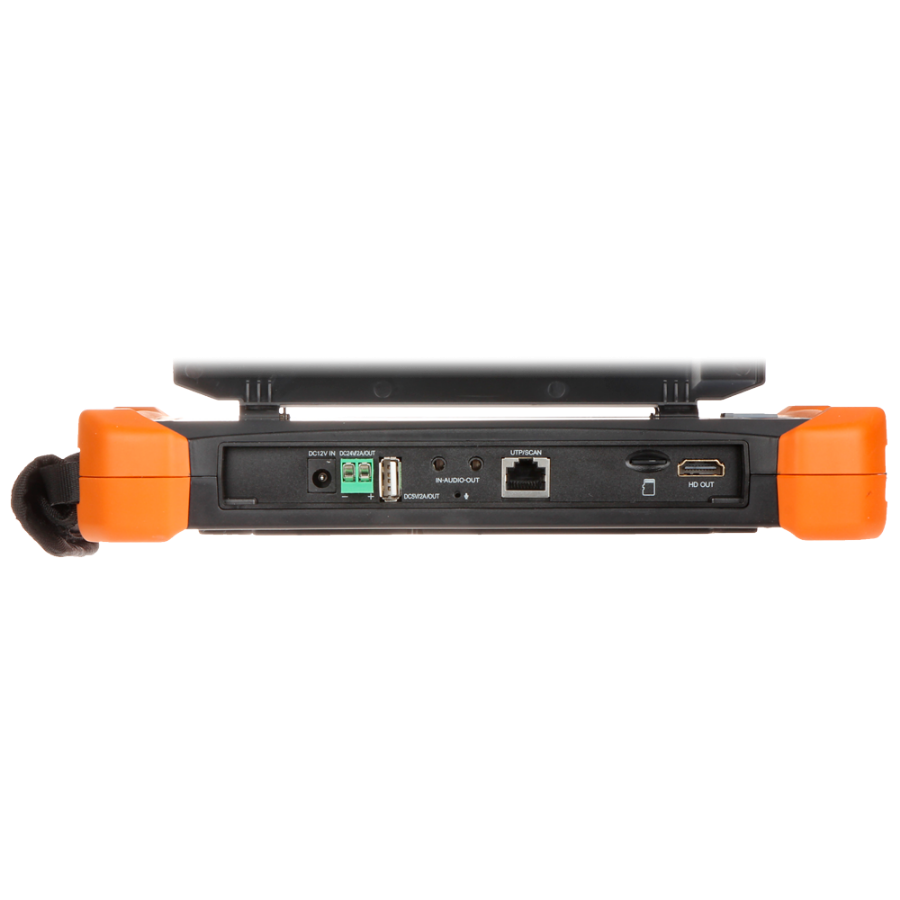

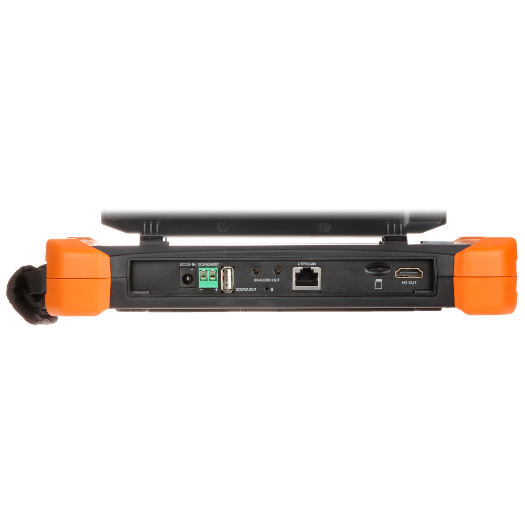

| Outputs | 1 x BNC (Loop with BNC in), 1 x HDMI (1080p), 1 x Audio, 1 x USB 5V/2A, 1 x 12VDC / 2A, 1 x PoE |
| Analog video test | Colour bar generator |
| TDR Test | Yes |
| PoE Voltage Meter | Yes |
| Digital Multimeter | Voltage, Current, Resistance, Conductivity and Capacity |
| PTZ | RS485 |
| Communication | WiFi, RJ45 10/100/1000M |

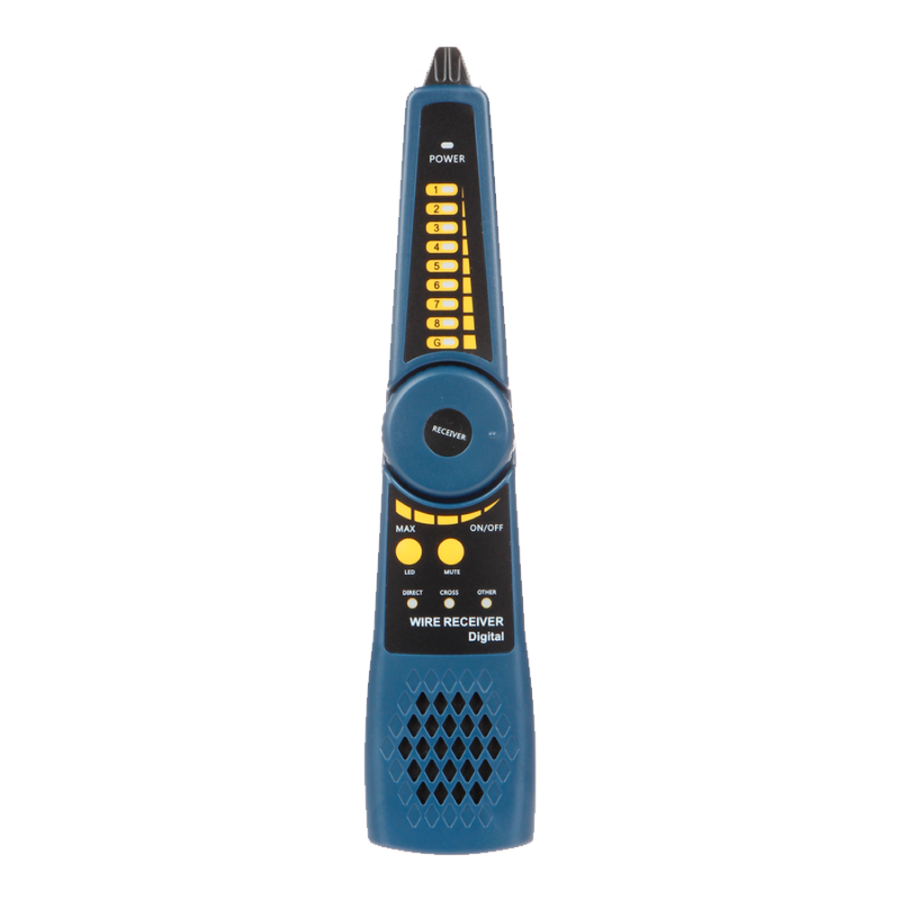

| Cable Tester | Independent accessory |
| Power | Lithium Battery 7.4 V 7000 mAh |
| Charger | DC 12V 2A |
| Temp. operation | -10o C ~ +50o C |
| Dimensions / weight | 264 mm x 182 mm x 43 mm / 1 Kg |
