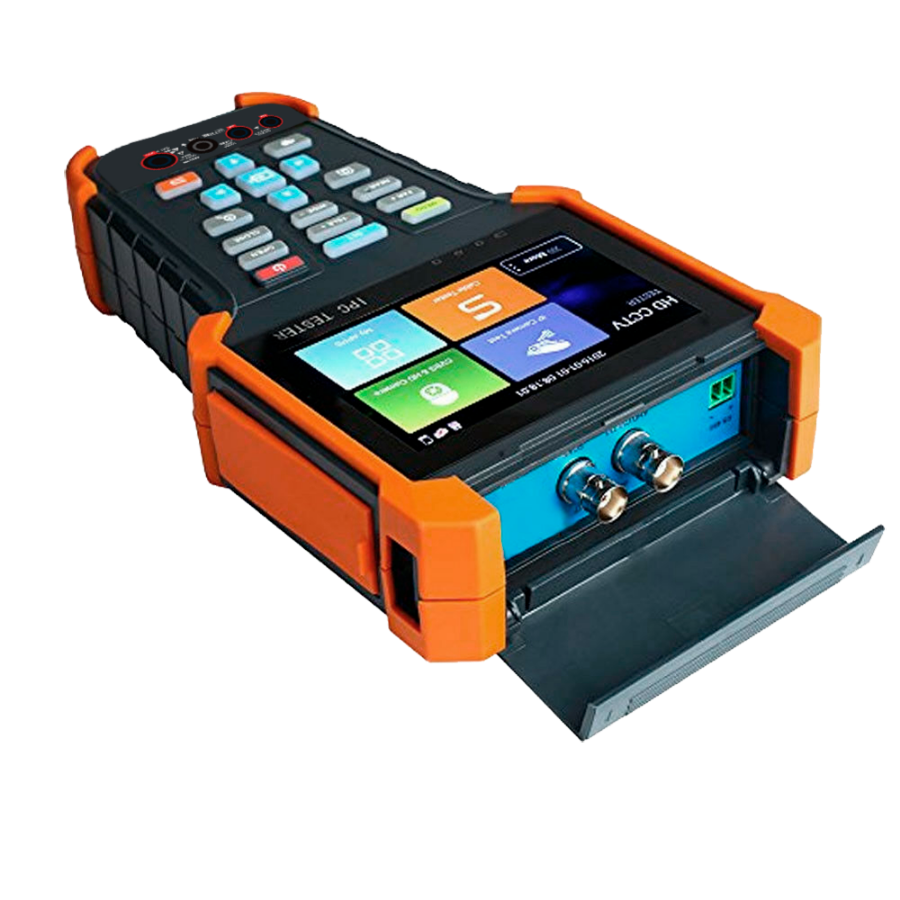

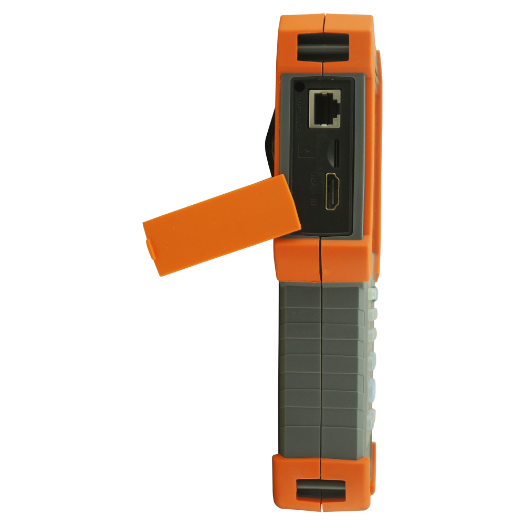

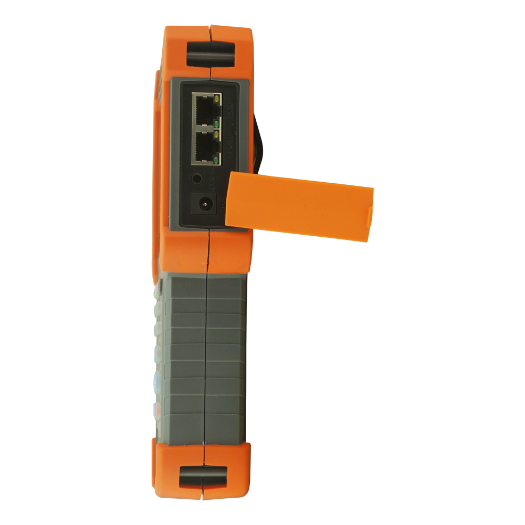

SF-TESTER4-5N1-4K Multifunctional CCTV Tester Supports HDTVI, HDCVI, AHD, CVBS and IP cameras

Brand: SAFIRE

Šifra: SF-TESTER4-5N1-4K

GTIN: 8435325437132

725,00 EUR

Visoka dostupnost

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Brand	Safire
Screen	IPS 4” resolution 800x480
Formats	HDTVI / HDCVI (4K) / AHD (5Mpx) / Analog CVBS (2Mpx) / IP (4K)
Video settings	Brightness, contrast and saturation
Inputs	BNC (TVI/CVI/AHD/CVBS), RS485, 2x RJ45 (UTC/SCAN), HDMI, Audio
Outputs	1xAudio, 1x12VDC / 2A, 1xPoE
Analog video test	Colour bar generator
TDR Test	YES (Only for cable RJ45)
Digital Multimeter	Voltage, Current, Resistance, Diode (Conductivity) and Capacity
PTZ	RS485
Communication	WiFi, RJ45 10/100/1000M
Cable Tester	Independent accessory
Power	Lithium Battery 7.4 V 4000 mAh
Charger	DC 12V 3A
Temp. operation	-10o C ~ +50o C
Dimensions / weight	240 mm x 123 mm x 38 mm / 600 g

Safire
Multi-functional CCTV tester for HDTVI, HDCVI, AHD, analogue CVBS and IP cameras
LCD 4" touch screen
Resolution 800x400
Decodes the camera image up to 8 MP (HDTVI / HDCVI), 5 MP (AHD), 2 MP (CVBS) and 4K IP
Built-in WiFi
Audio inputs/outputs
PTZ analyser and controller. Supports multiple protocols
UTP Cable Tester
Digital multimeter
Rechargeable Lithium Battery 7.4V 4Ah
DC power supply outputs 12 V and PoE power supply
Multi-language menu

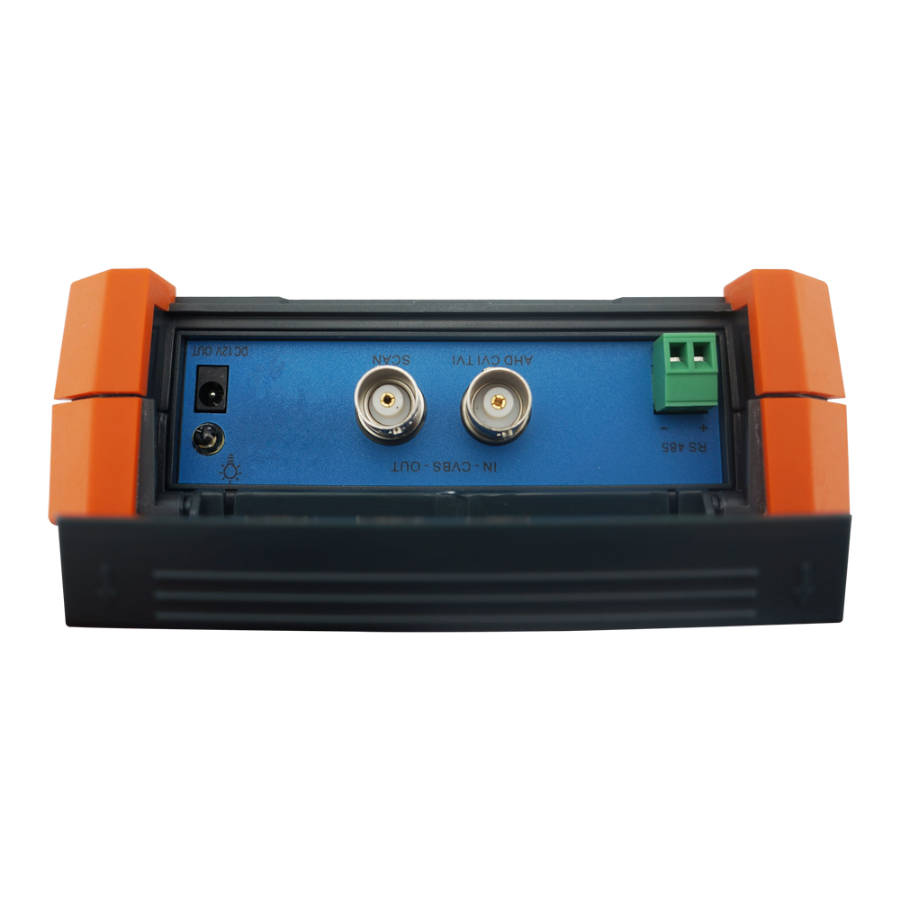

BNC Video Input/Output (Loop)
1 HDMI input
