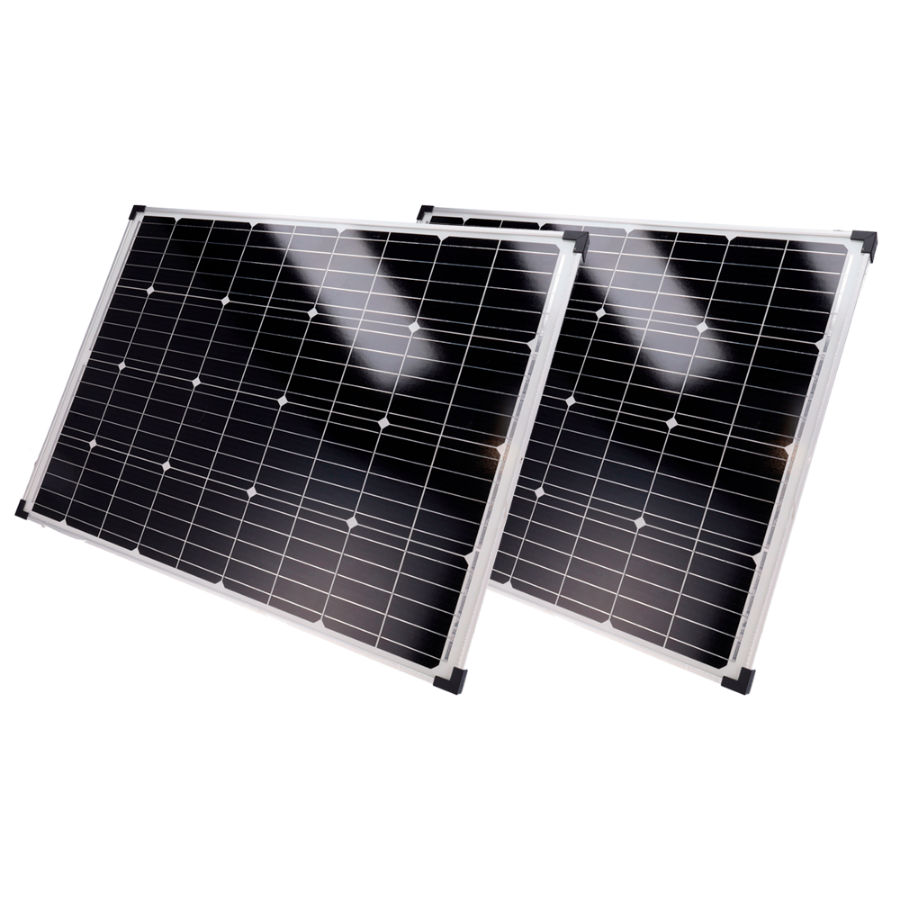

| Power | 2x 200W |
| Power tolerance (W) | ±3% |
| Cells | 166 monocrystalline |
| Short circuit current | 16.66A |
| Open circuit voltage | 22.2V |
| Efficiency | 21.8% |
| Glass thickness | 3.2mm |
| Maximum load capacity | 60 m/s (5Kg/sg.m) |
| Maximum hail load | 23m/s, 7.53g |
| Temperature range | -40oC ~ 85oC |
| Module dimensions | 1223 (W) x 879 (H) x 38(Fo) mm / panel |
| Weight | 25,8Kg / panel + 20,5Kg / Bracket |
| Degree of protection | IP67 |
| Maximum diameter of pole/pole (not included) | 180mm |
| Material | Lithium LiFePo4 |
| Capacity | 2560Wh (200Ah) |
| Regulator | Integrated MPPT with 12/24V output |
| Cycles | >2000 |
| Solar input voltage | 18V |
| Load voltage | 10-14.6V |
| Output voltage | 12/24VDC |
| Maximum charge current | 20A |
| Output current | 12V 5A, 24V 5A |
| Operating temperature | Charge: 0 °C to 60 °C (32 °F to 140 °F)Discharge: -30 °C to 60 °C (-22 °F to 140 °F) |
| Maximum output power | 80W (12V), 48W (24V)Total 80W |
| Maximum input power | 500W |
| Dimensions | 781 (W) x 177 (H) x 133 (D) mm |
| Weight | 22.3Kg |
| Communication | RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption |

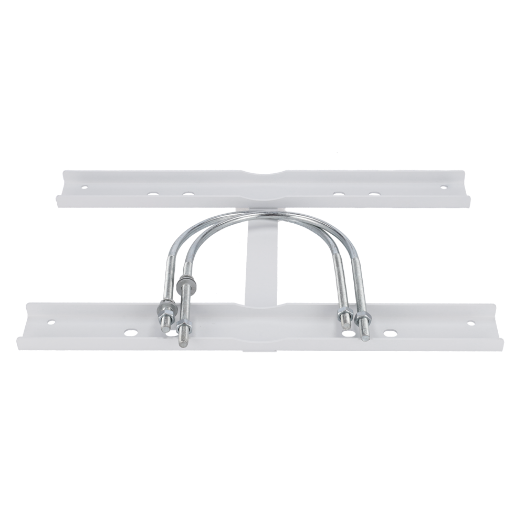

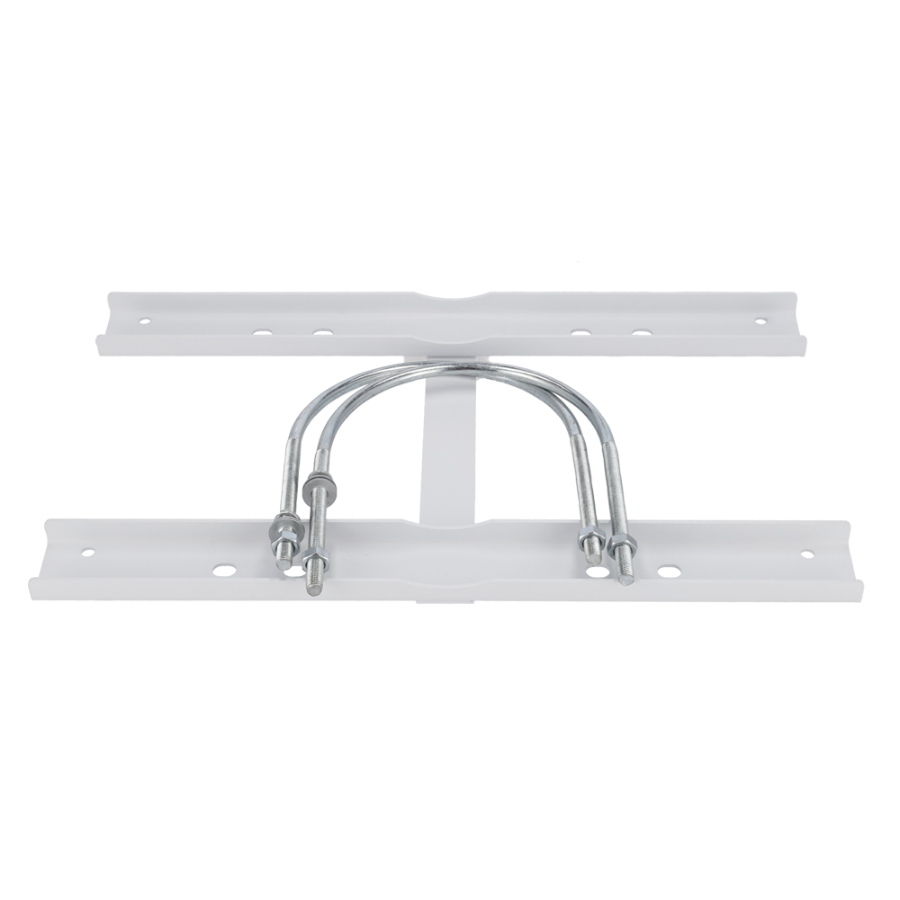

| Bracket | Anchoring to a mast or vertical infrastructure |
SAFIRE's autonomous power supply systems are the best solution for CCTV in off-grid environments, such as construction site surveillance, photovoltaic parks or any type of installation.

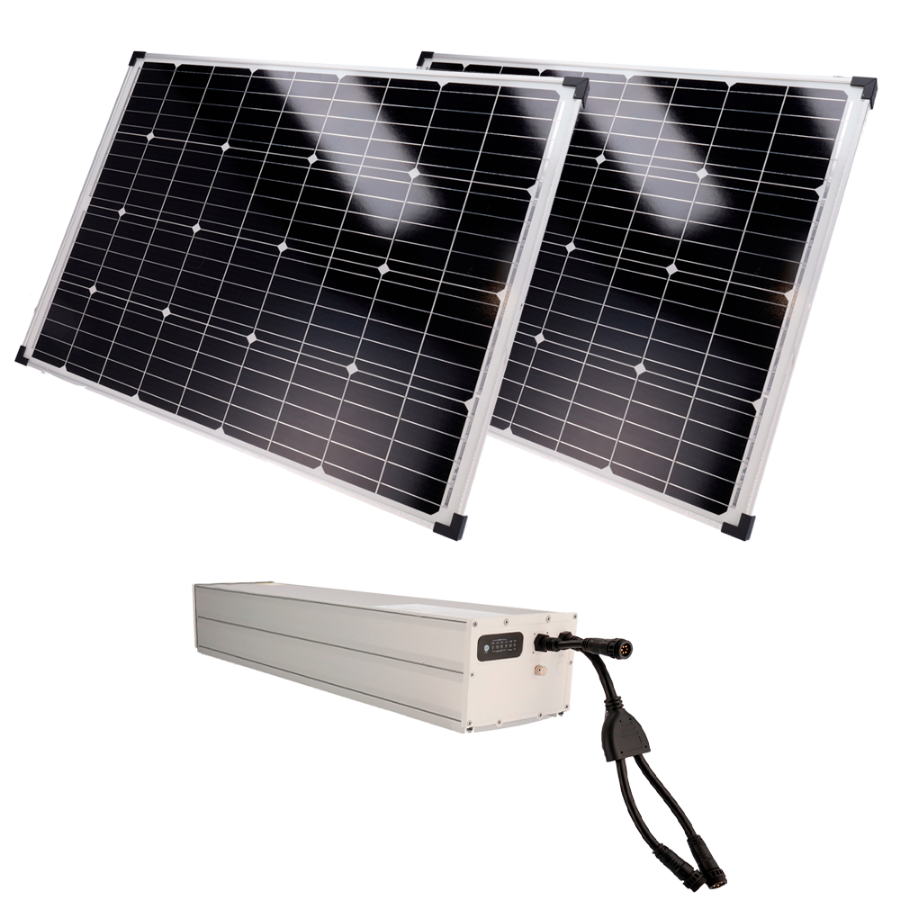

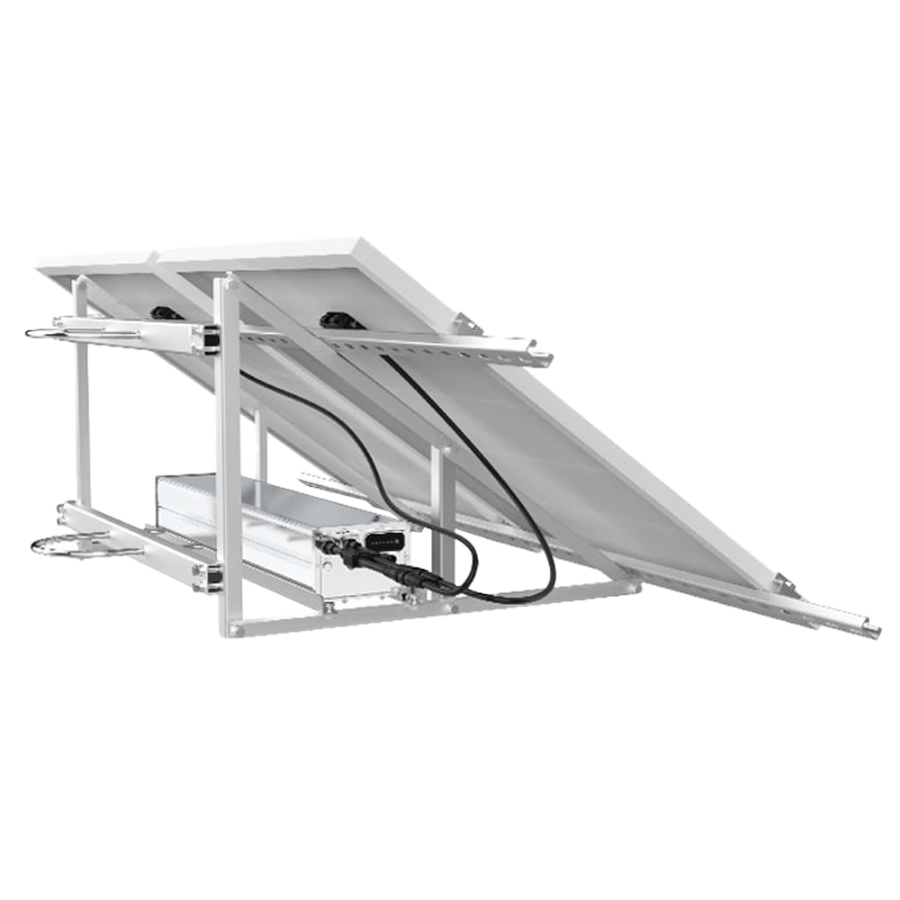

These all-in-one kits consist of solar panel, lithium battery with integrated MPPT regulator (to optimize the power of the solar panel) and bracket for installation on a mast. This makes installation simple and construction time short. Communication with third parties via RS485 protocol is also possible.
They are available in a wide range of capacities (from 256Wh to 2560Wh) to serve different energy needs, depending on the equipment located and the location of the installation. The SF-SOLARKIT-BATT-2560WH-24V kit also features dual output 12/24VDC for equipment that requires it.
