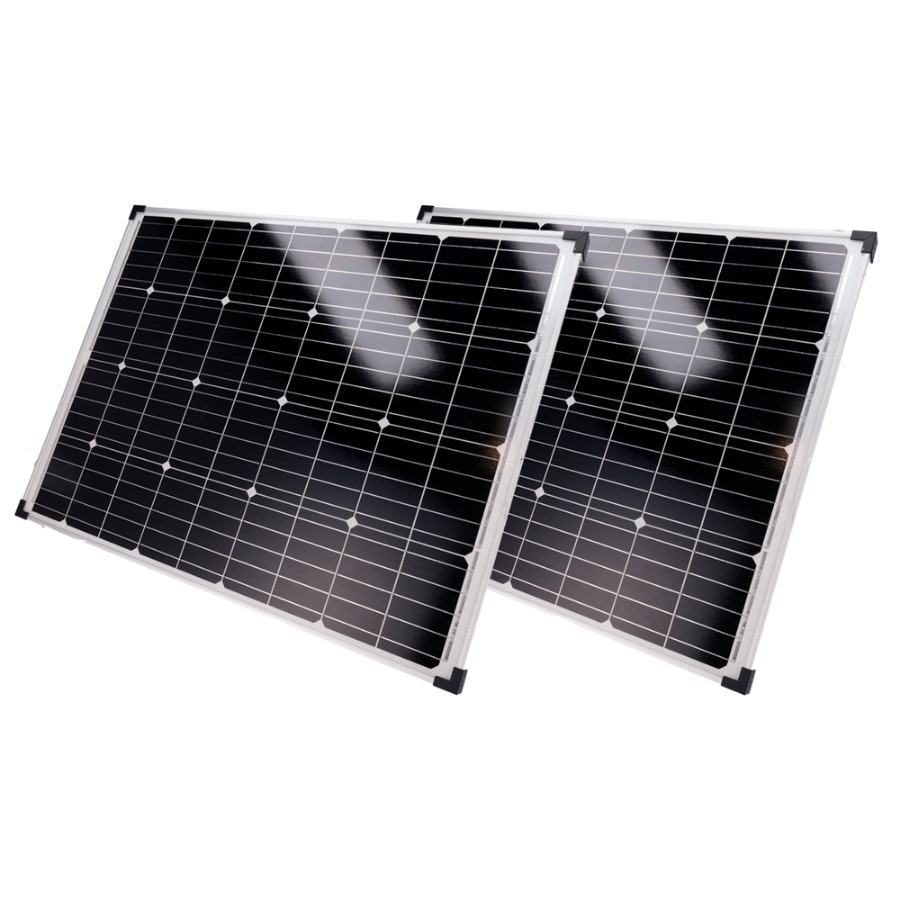

| Power | 2x 150W |
| Power tolerance (W) | ±3% |
| Cells | 182 monocrystalline |
| Short circuit current | 16.66A |
| Open circuit voltage | 22.2V |
| Efficiency | 21.8% |
| Glass thickness | 3.2mm |
| Maximum load capacity | 60 m/s (5Kg/sg.m) |
| Maximum hail load | 23m/s, 7.53g |
| Temperature range | -40oC ~ 85oC |
| Module dimensions | 1040 (W) x 621 (H) x 30 (D) mm / panel |
| Degree of protection | IP67 |
| Weight | 19,5Kg / panel + 20,5Kg / bracket |
| Maximum diameter of pole/pole (not included) | 180mm |
| Material | Lithium LiFePo4 |
| Capacity | 1920Wh (150Ah) |
| Regulator | Integrated MPPT with 12/24VDC output |
| Cycles | >2000 |
| Solar input voltage | 18V |
| Load voltage | 10-14.6V |
| Output voltage | 12/24 VDC |
| Maximum charge current | 20A |
| Output current | 12V 5A, 24V 5A |
| Operating temperature | Charge: 0 °C to 60 °C (32 °F to 140 °F)Discharge: -20 °C to 60 °C (-4 °F to 140 °F) |
| Maximum output power | 80W (12V), 48W (24V)Total 80W |
| Maximum input power | 500W |
| Dimensions | 781 (W) x 177 (H) x 133 (D) mm |
| Weight | 18.25Kg |
| Communication | RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption |

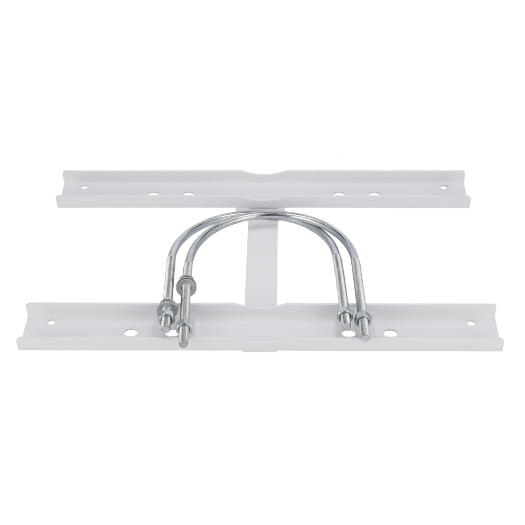

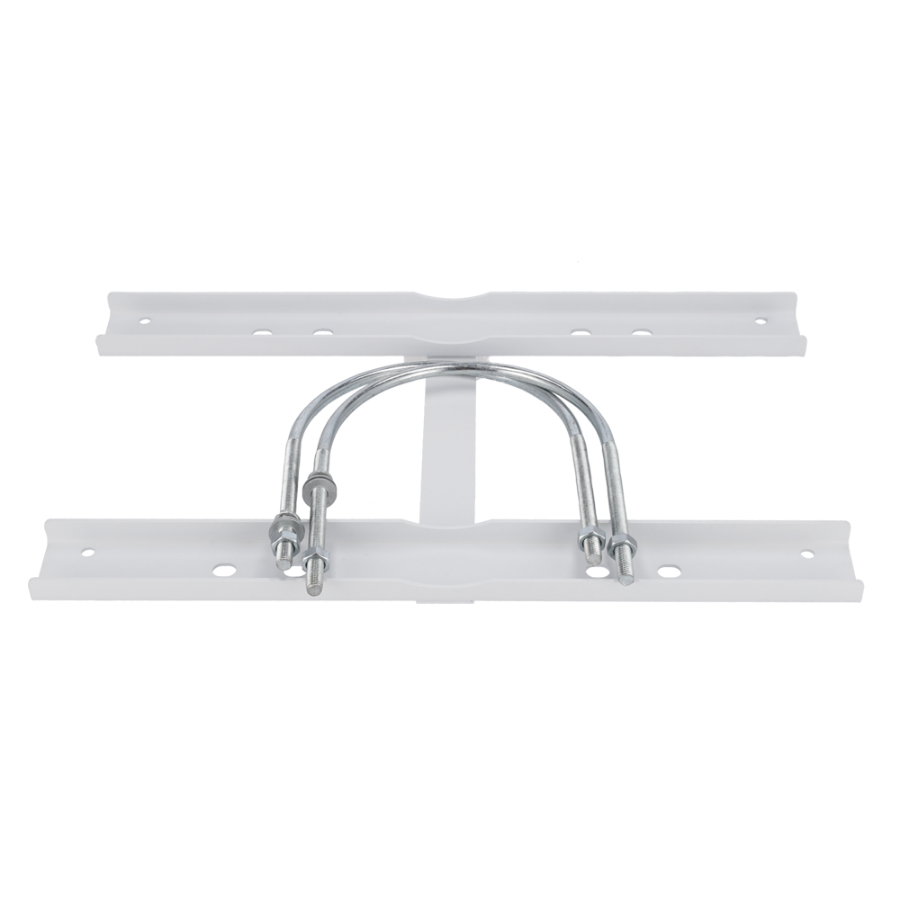

| Bracket | Vertical infrastructure |
SAFIRE's autonomous power supply systems are the best solution for CCTV in off-grid environments, such as construction site surveillance, photovoltaic parks or any type of installation.

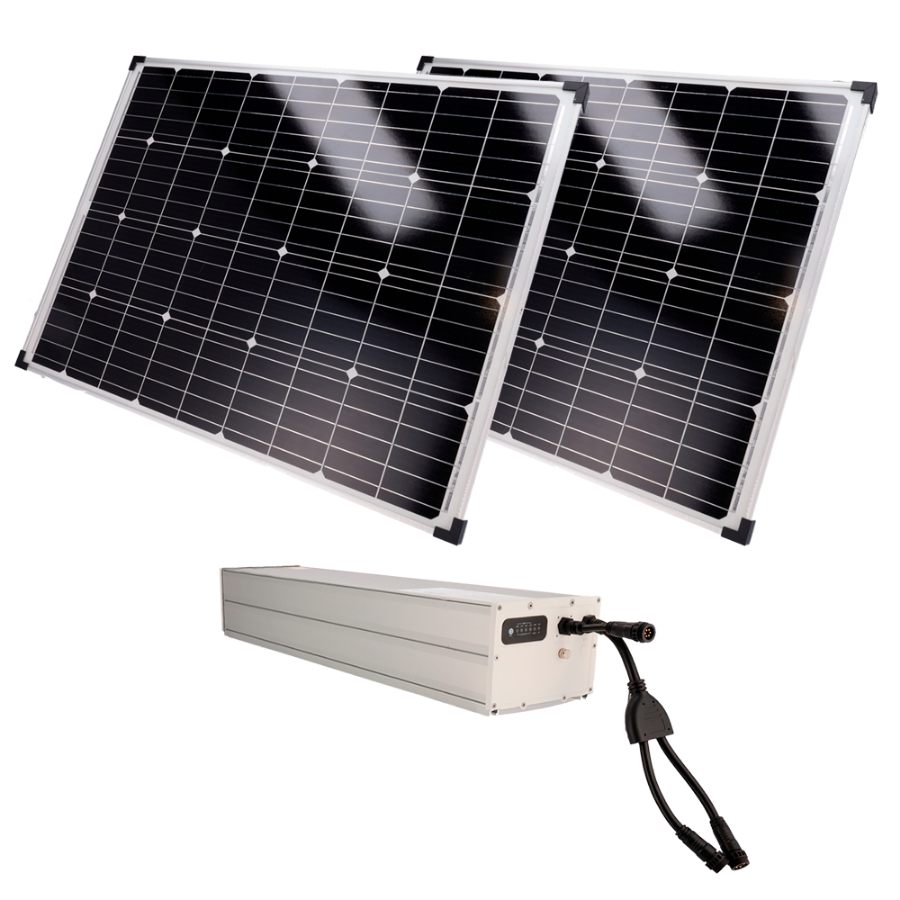

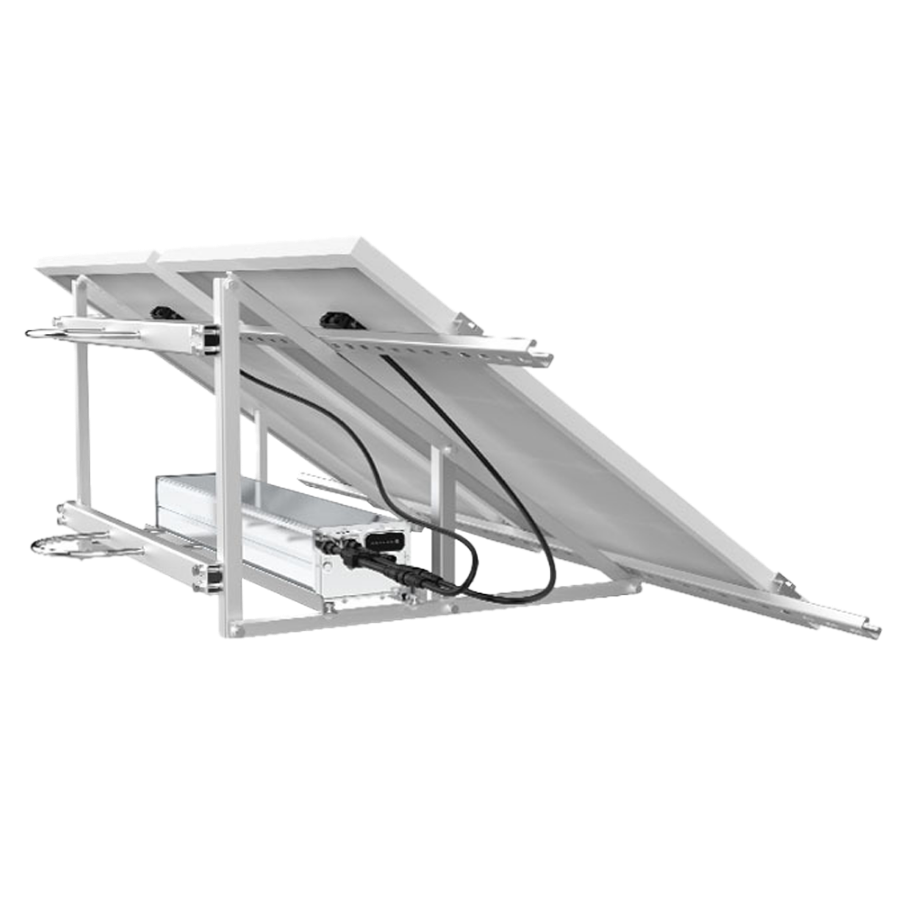

These all-in-one kits consist of solar panel and lithium battery with integrated MPPT regulator (to optimize the power of the solar panel). This makes installation simple and construction time short. Communication with third parties via RS485 protocol is also possible.
They are available in a wide range of capacities (from 256Wh to 2560Wh) to serve different energy needs, depending on the equipment located and the location of the installation. The SF-SOLARKIT-BATT-1920WH-24V kit also features dual output 12/24VDC for equipment that requires it.
