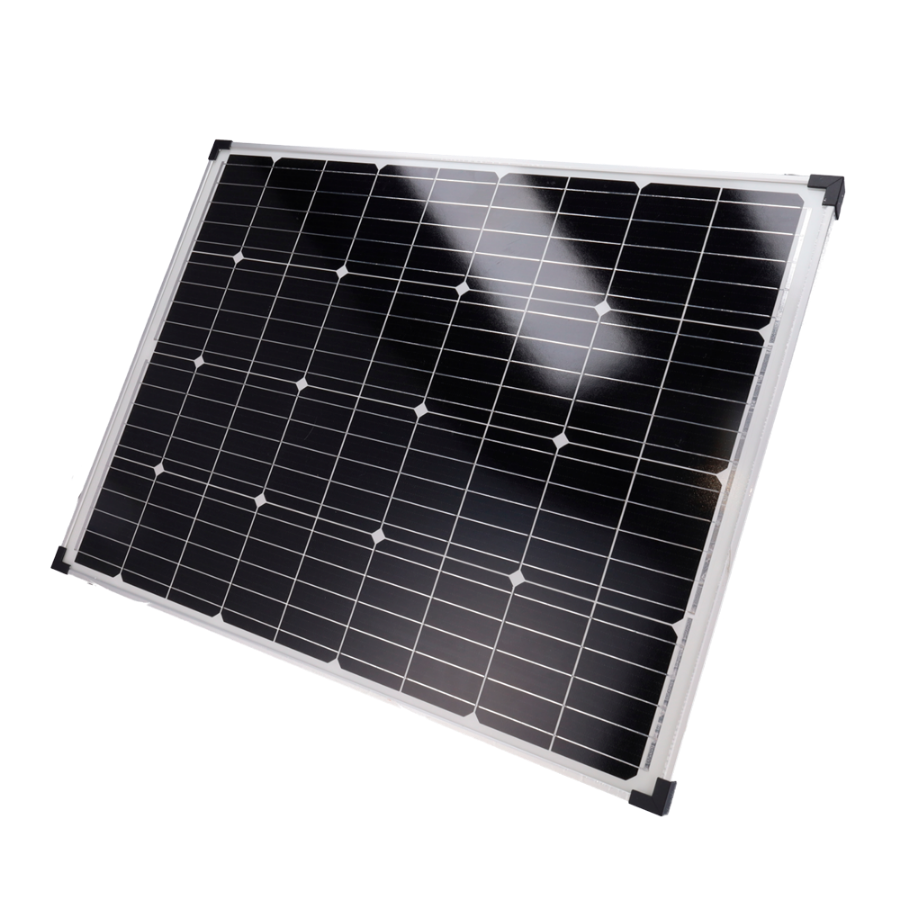

| Power | 80W |
| Power tolerance (W) | ±3% |
| Cells | 156 monocrystalline |
| Short circuit current | 3.66A |
| Open circuit voltage | 21.24V |
| Efficiency | 21.6% |
| Glass thickness | 3.2mm |
| Maximum load capacity | 60 m/s (5Kg/sg.m) |
| Maximum hail load | 23m/s, 7.53g |
| Temperature range | -20oC ~ 85oC |
| Module dimensions | 680 (W) x 510 (H) x 30 (D) mm |
| Weight | 15Kg (With battery) |
| Degree of protection | IP67 |
| Maximum diameter of pole/pole (not included) | 105mm |

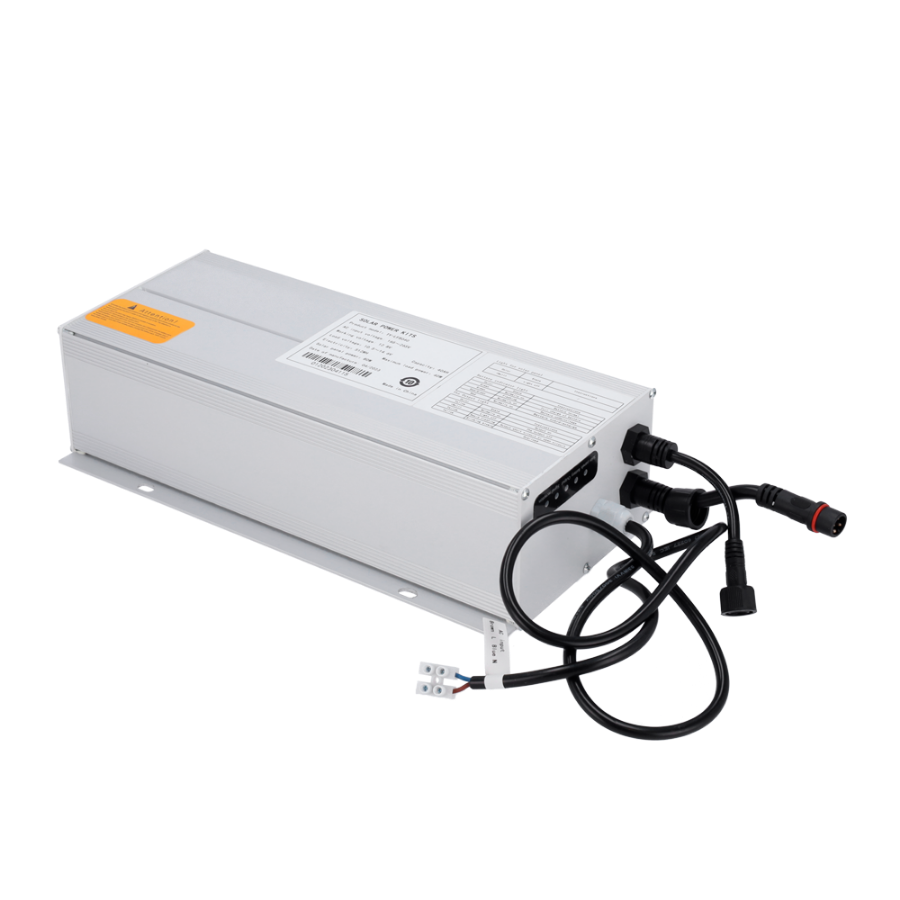

| Material | Lithium LiFePo4 |
| Capacity | 512Wh (40Ah) |
| Regulator | Integrated MPPT |
| Converter | AC & DC |
| Cycles | >2000 |
| Solar input voltage | 18V |
| Load voltage | 10-14.6V |
| Maximum charge current | 10A |
| Output voltage | 12V Integrated DC Regulator (with standard jack connector compatible with CCTV cameras) |
| AC input voltage | 220V |
| Operating temperature | Charge: 0 °C to 65 °C (32 °F to 140 °F)Discharge: 0 °C to 65 °C (32 °F to 140 °F) |
| Maximum output power | 40W |
| Maximum input power | 100W |
| Battery size | 205 (W) x 68 (H) x 112 (D) mm |
| Communication | RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption |

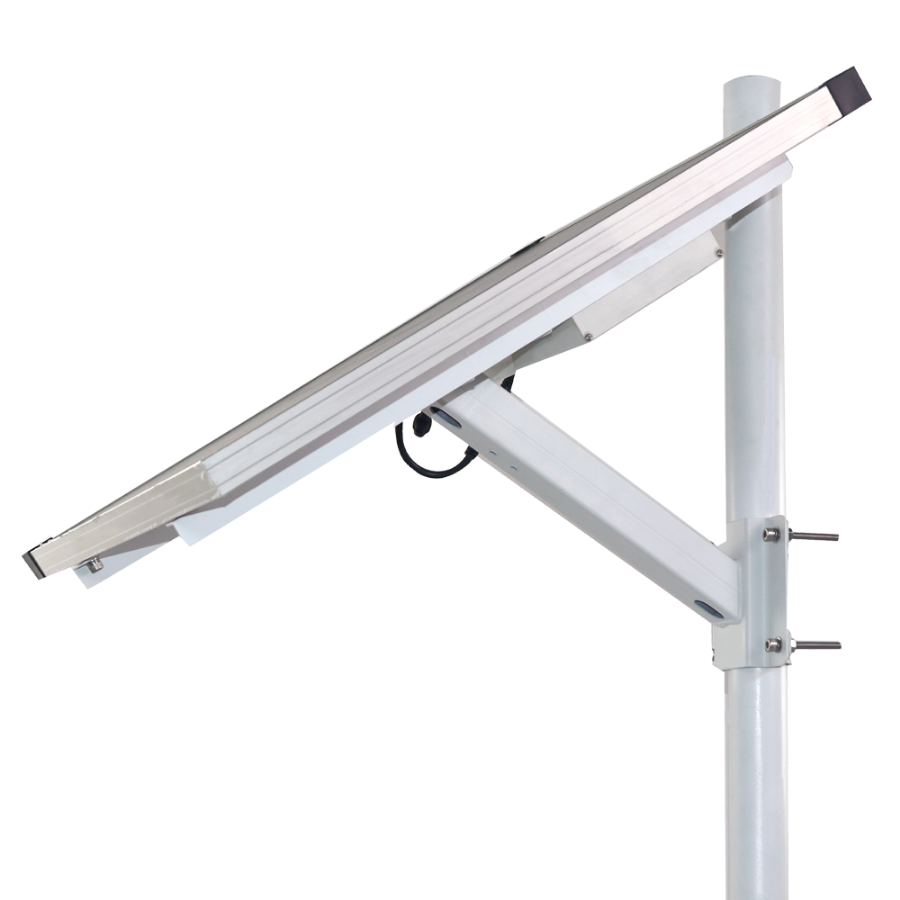

| Bracket | Support for mast or vertical infrastructure mountingConnection with streetlight |
SAFIRE's autonomous power supply systems are the best solution for CCTV in environments with or without access to the power grid, such as construction site surveillance, photovoltaic parks or any type of installation.

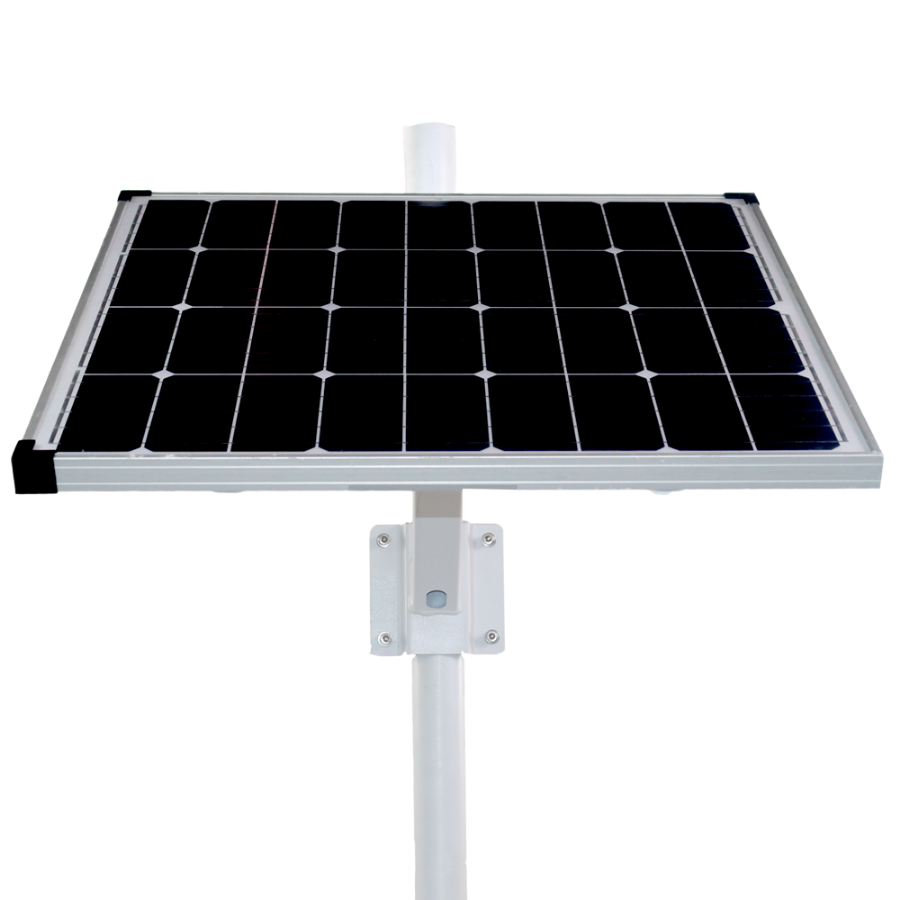

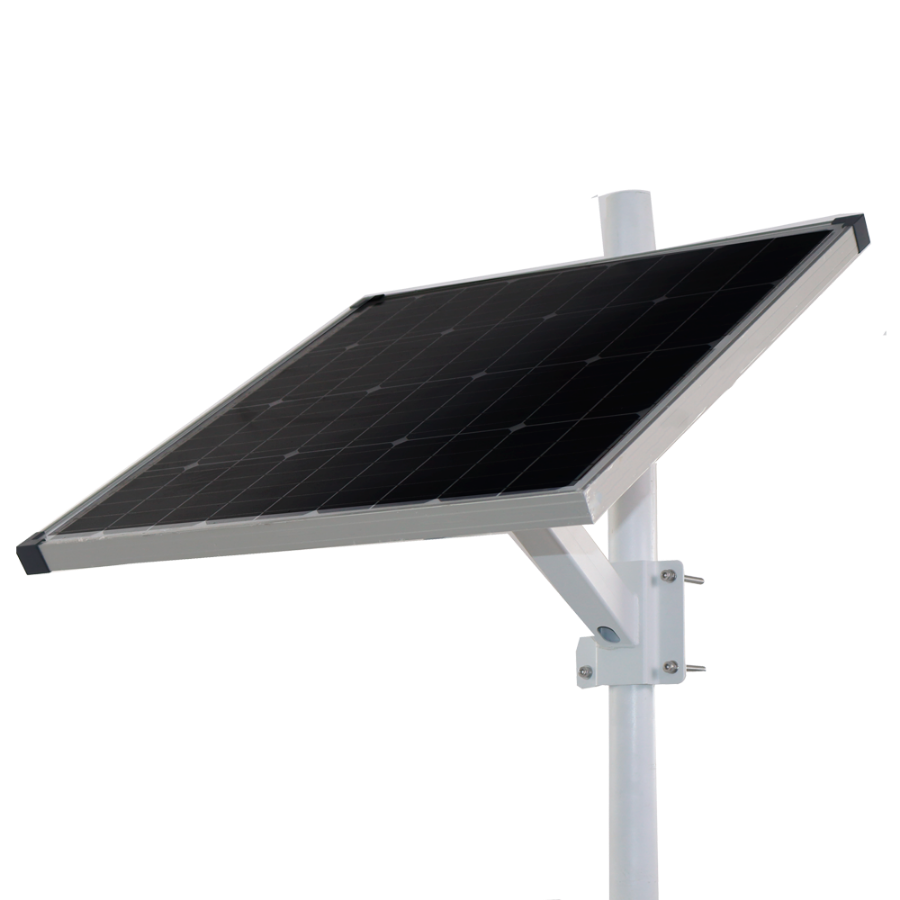

These all-in-one kits consist of solar panel, lithium battery with integrated MPPT regulator (to optimize the power of the solar panel) and bracket for installation on a mast. This makes installation simple and construction time short. Communication with third parties via RS485 protocol is also possible. The SF-SOLARKIT-AC-BATT-512WH kit has a streetlight connection and AC/DC converter, so that it can also be powered from the mains via streetlights.
They are available in a wide range of capacities (from 256Wh to 512Wh) to serve different energy needs, depending on the equipment located and the location of the installation.
