| Brand | Safire Smart |
| Range | B2 |
| Inputs for IP cameras | 32 CH IP |
| IP compatible cameras | Safire Smart (native protocol), ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Main stream recording | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
| Decoding capacity | 1CH 12Mpx @ 20FPS4CH 1080P @ 30FPS |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711(U/A) |
| Total bandwidth | 320 Mbps downstream / 256 Mbps upstream |

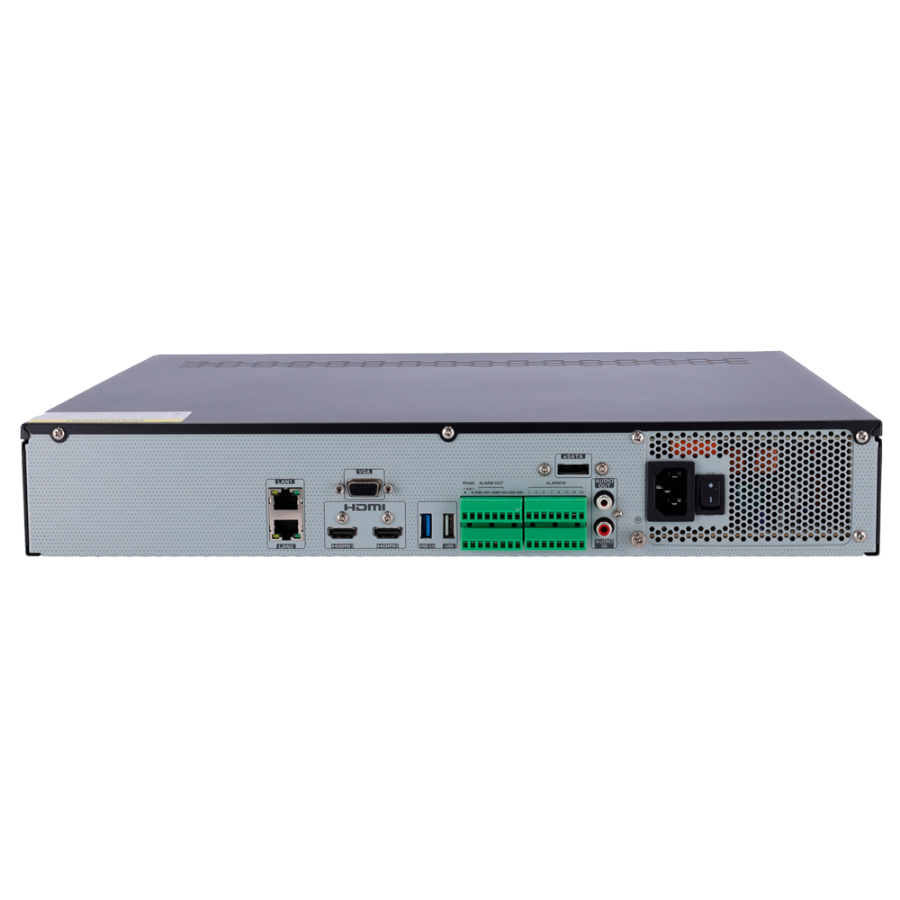

| Video outputs | 1 HDMI 4K / 1 HDMI 1080p / 1 VGA |
| Display resolution | HDMI 1: 3840x2160@30FPS, 1920x1080, 1280x1024, 1024x768HDMI 2: 1920x1080, 1280x1024, 1024x768VGA: 1920x1080, 1280x1024, 1024x768*VGA and HDMI 1 are simultaneous*HDMI 1 and HDMI 2 separate |
| Yesmultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Multi-Screen | Main Output:1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 (Live View)AUX output:1 / 4 / 6 / 8 / 9 (Live view)Max. 32+9CH local (Live view) |
| Recording method | Manual, programmed, motion detection, smart events, alarm input, POS |
| POS Function | Si |
| Perimeter Protection | Need to use Safire Smart cameras with artificial intelligenceArtificial Intelligence based on the classification of humans, vehicles and two-wheeled vehicles on:- Area intrusion- Line crossover- Regio |
| Facial Detection | Facial recognition up to 6CHComputation of up to 18 images / second32 Libraries and up to 10000 face images |
| Video metadata | Human and vehicle feature extractionFor humans: Can extract up to 13 features (glasses, color of clothes, etc.)For vehicles: can extract up to 5características (color, type, etc.) |
| License plate recognition | Yes (Safire Smart license plate camera required) |
| Dewarping | Supports Fisheye camera dewarping |
| Alarms | 16 Inputs / 4 Outputs |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 4 x HDD 3.5" SATA3.0 up to 10 TB each (not included) |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, Safire Smartphone App and PC Software Safire Smart VMS |
| Power | ATX 300W(PoE) |
| Operating temperature | -10oC ~ 50oC, Humidity 10~90% |
| Dimensions / weight | 70 (H) x 440 (W) x 390 (D) mm / 4.44 Kg |
