| Brand | Safire Smart |
| Range | B2 |
| Inputs for IP cameras | 8CH IP |

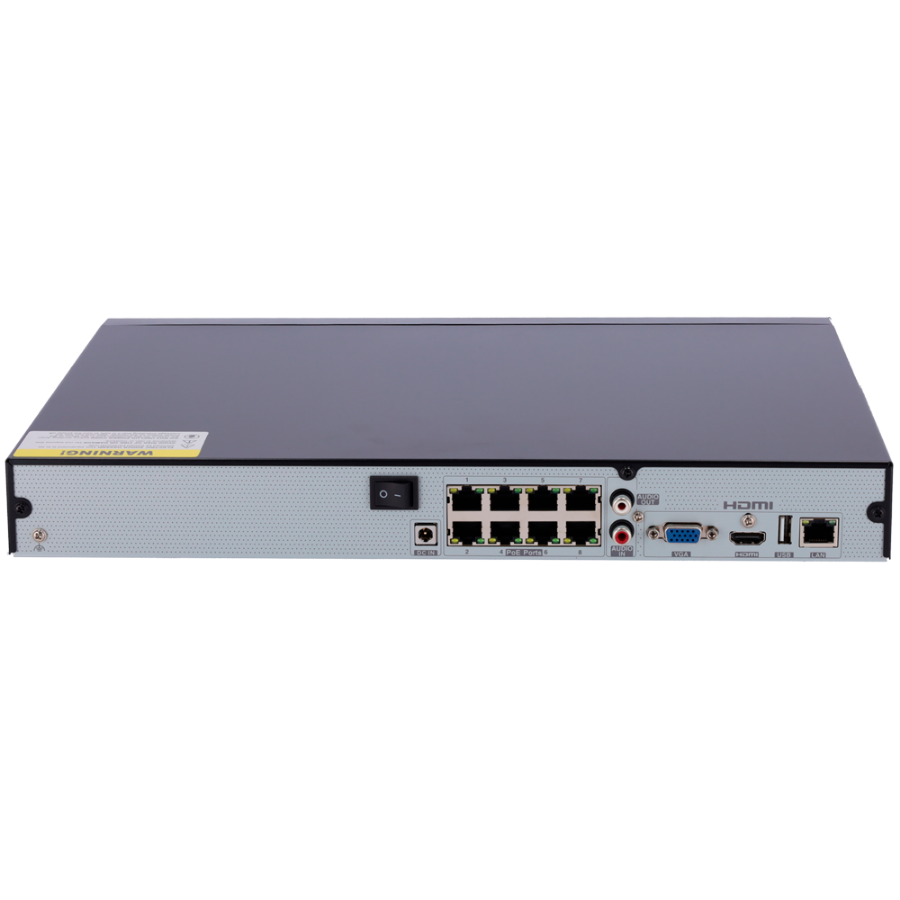

| PoE ports | 8 RJ45 10/100MPower ?80W, PoE IEEE802.3af/at |
| IP compatible cameras | Safire Smart (native protocol), ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Main stream recording | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
| Decoding capacity | 1CH 12Mpx @ 20FPS4CH 1080P @ 30FPS |
| Video compression format | H.265S / H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711(U/A) |
| Total bandwidth | 80 Mbps downstream / 80 Mbps upstream |
| Video outputs | 1 HDMI 4K / 1 VGA |
| Display resolution | HDMI 1: 3840x2160@30FPS, 1920x1080, 1280x1024, 1024x768VGA: 1920x1080, 1280x1024, 1024x768 |
| Yesmultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Multi-Screen | 1 / 4 / 6 / 8 / 9 (Live view) |
| Recording method | Manual, programmed, motion detection, smart events, alarm input, POS |
| POS Function | Si |
| Perimeter Protection | Up to 2CH by the recorder itselfOn all channels using Safire Smart cameras 4I1 or 8I2.Artificial Intelligence based on the classification of humans, vehicles and two-wheeled vehicles on:- Area intrusi |
| Facial Detection | Up to 2CH by the recorder itselfFace detection with Safire Smart cameras 4I1 or 8I2 up to 8CH (All channels)Face detection statistics chart by day, week, month, year. |
| Video metadata | Up to 2CH by the recorder itselfFor classification and attribute extraction it is necessary to use Safire Smart 4I1 or 8I2, cameras in order to obtain:For humans: Can extract up to 13 features (glasse |
| License plate recognition | Yes (Safire Smart license plate camera required) |
| Dewarping | Supports Fisheye camera dewarping |
| Alarms | Does not have |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 2x 3.5" HDD SATA3.0 up to 10 TB (not included) |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 1 x RJ45 10/100/1000M [%VAR%] [%VAR%] (Ethernet) |
| Remote access | Web Browser, Safire Smartphone App and PC Software Safire Smart VMS |
| Power | DC48 V, 2.5A ? 10W (Without hard disk) |
| Operating temperature | -10oC ~50oC, Humidity 10~90% |
| Dimensions / weight | 45 (H) x 380 (W) x 268 (D) mm / 1.18 Kg |
