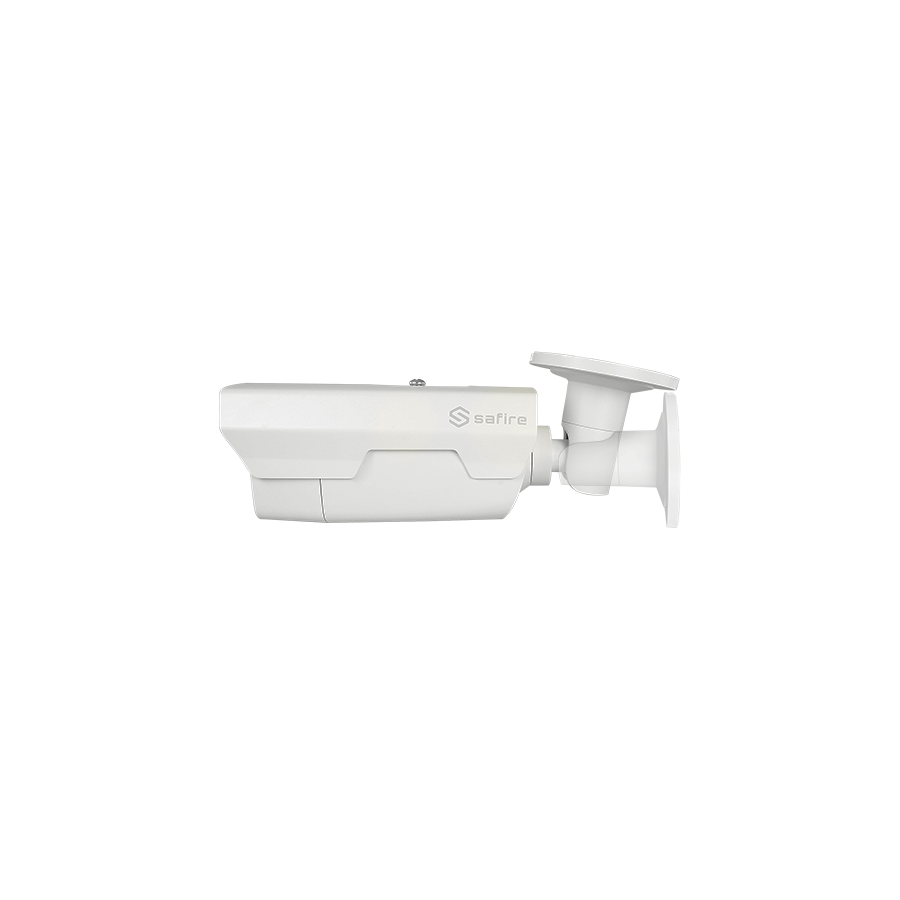

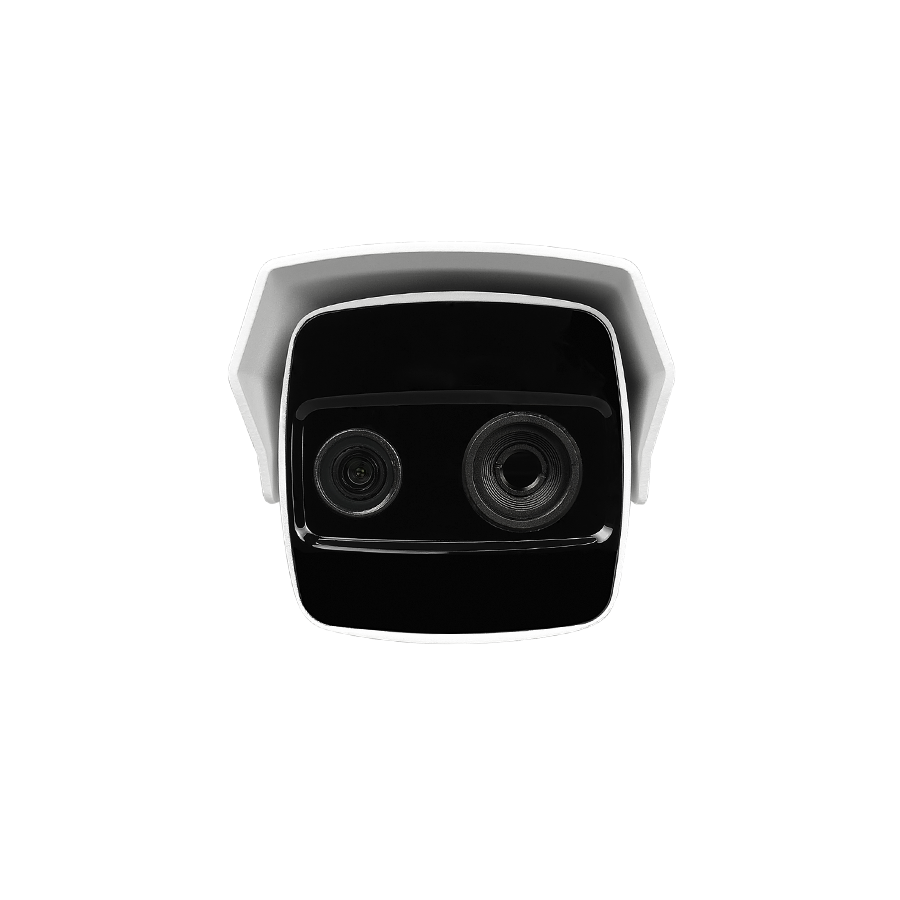

| Brand | Safire |
| Thermal sensor | 160x120 Vanadium oxide |
| Optical sensor | 1/2.8” Progressive Scan CMOS 2 Megapixel |
| Main Stream rate | 320x240(50fps) Therm / 1920x1080 (25fps) Opt |
| Extra Stream rate | 320x240 (50fps) Therm / 704x576 (25fps) Opt |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG |

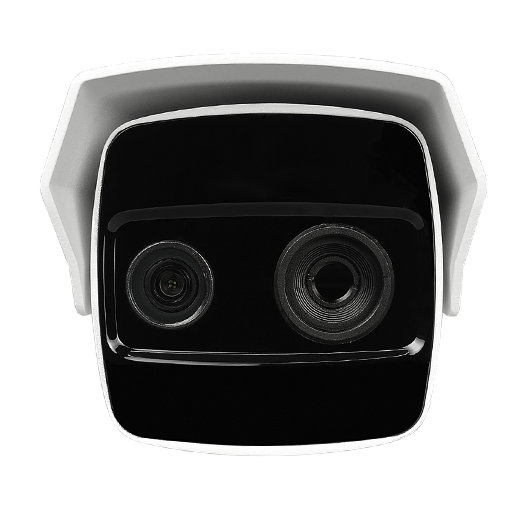

| Lens | 10 mm (Therm) / 8 mm (Opt) |
| Range performance | Human: 200 (Detection) / 50 (Recognition) / 25 (Identification) m Vehicle: 613 (Detection) / 153 (Recognition) / 77 (Identification) m |
| VCA ranges | Human: 100 mVehicle: 280 mTo measurement (2x2m): 160 mTo measurement (1x1m): 80 mFire detection (2x2m): 400 mFire detection (1x1m): 200 m |
| Viewing angle | 23.3°×17.6° (Term) / 40.0°×22.4° (Opt) |
| Thermal sensitivity | < 50mK (0.05 o C) |
| Thermal measurement range | -20 ~150 o C / ± 8 o C |
| Spectral range | 8~14µm |
| Pitch detector | 25µm |
| VCA | Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area) |
| Temperature rules | Up to 21 rules (10 points, 10 areas y 1 line) |
| Intelligent functions | Fire detection and alarm, line crossing, intrusion, abandoned/lost object |

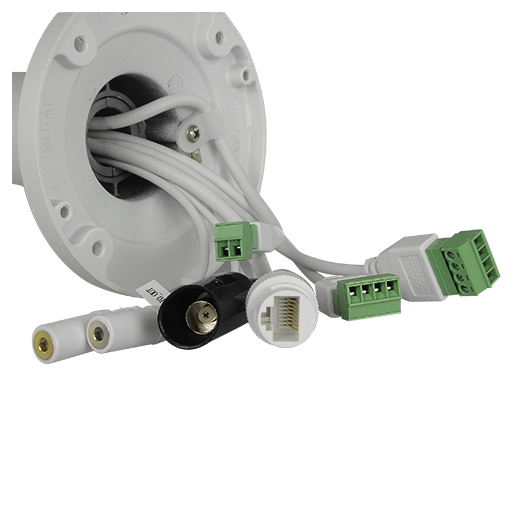

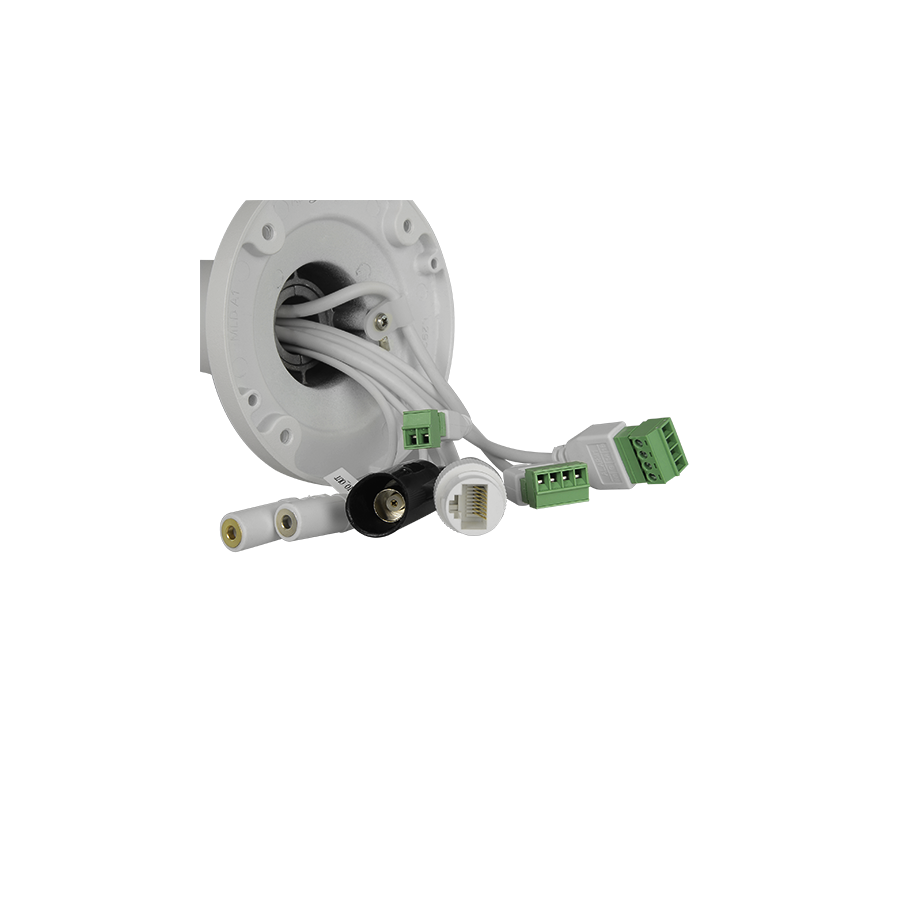

| Audio | 1 input / 1 output line level 600 ohm |
| Alarm | 2/2 In/Out |

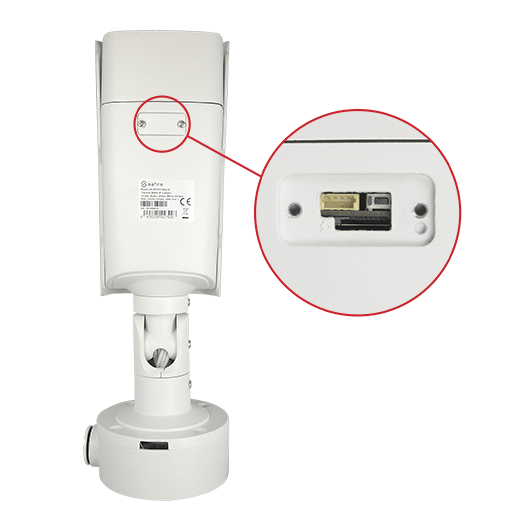

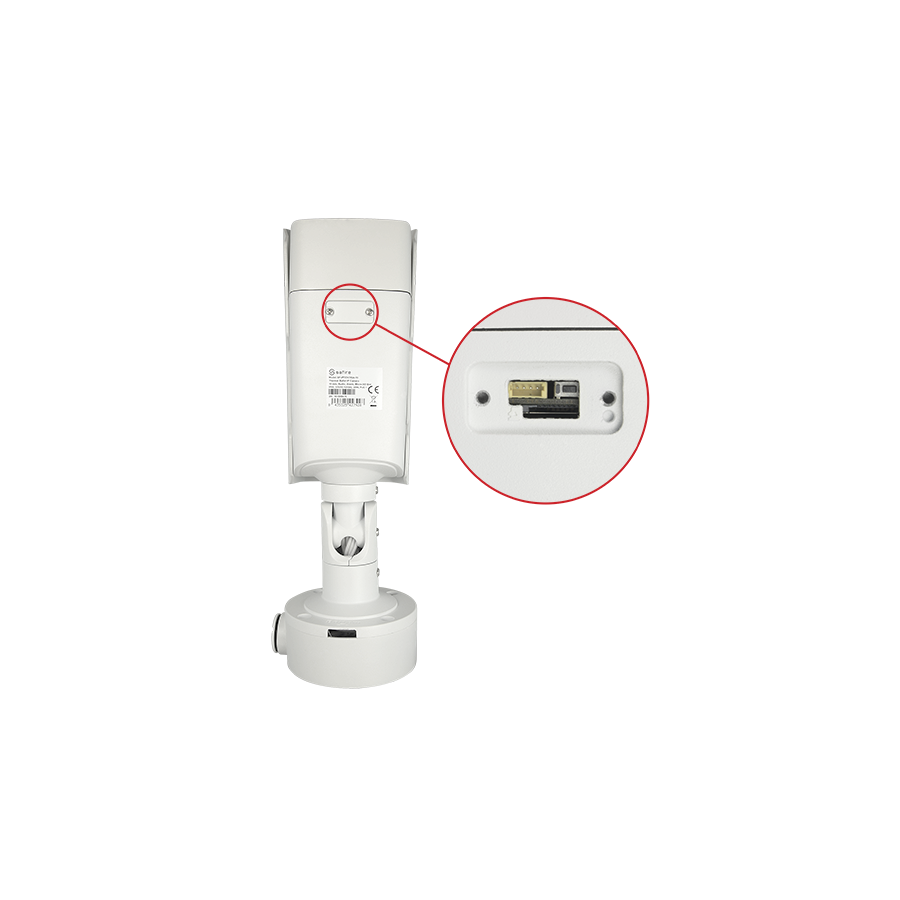

| Internal memory | Micro SD card up to 128GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | 24VAC, 12VDC, PoE IEEE802.3at |
| Temp. operation | -40o C ~ +60o C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 314 mm (D) x 104 (O) mm |
| Weight | 1500 g |
