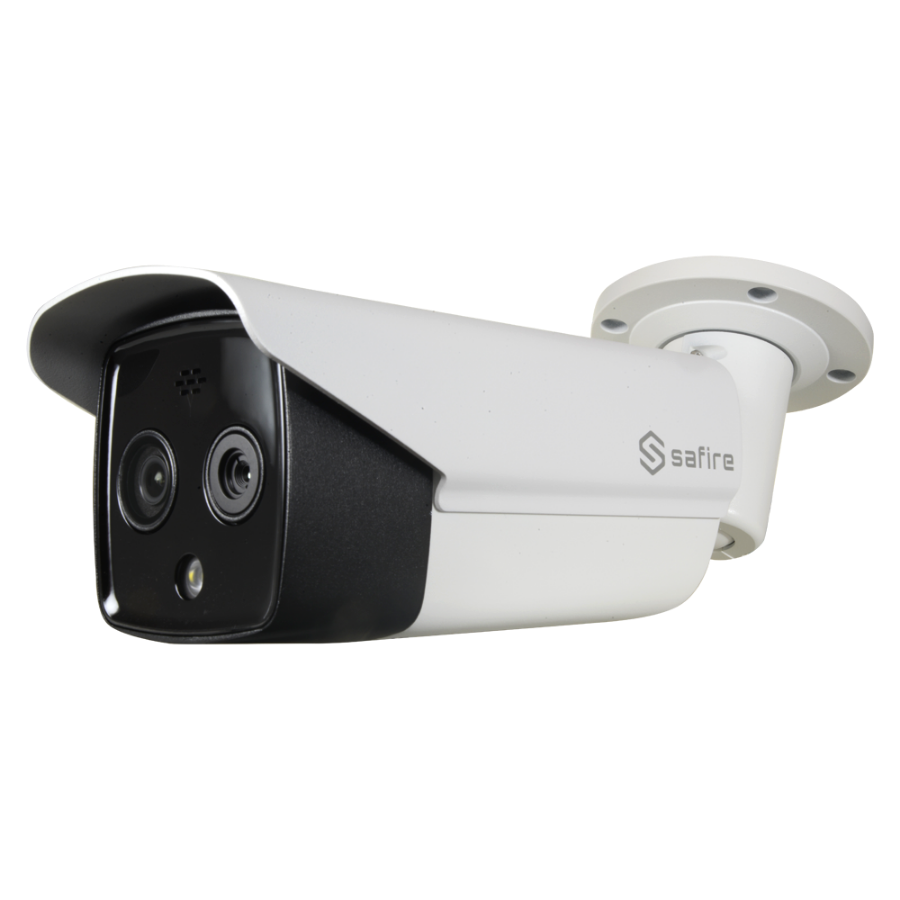

| Brand | Safire |
| Thermal sensor | 256x192 Vanadium Oxide |
| Optical sensor | 1/2.7” Progressive Scan CMOS 4 Megapixel |
| Main Stream rate | 1280 × 720, 704 × 576, 640 × 512, 320 × 240 (1~25FPS) Thermal2688 × 1520, 1920 × 1080, 1280 × 720) (1~25FPS) Optical |
| Extra Stream rate | 704 × 576, 640 × 512, 320 × 240 (1~25FPS) [%VAR%] Thermal704 x 576, 352 x 288 (1~25FPS) [%VAR%] Optical |
| Compression | H.265 / H.264 / MJPEG |

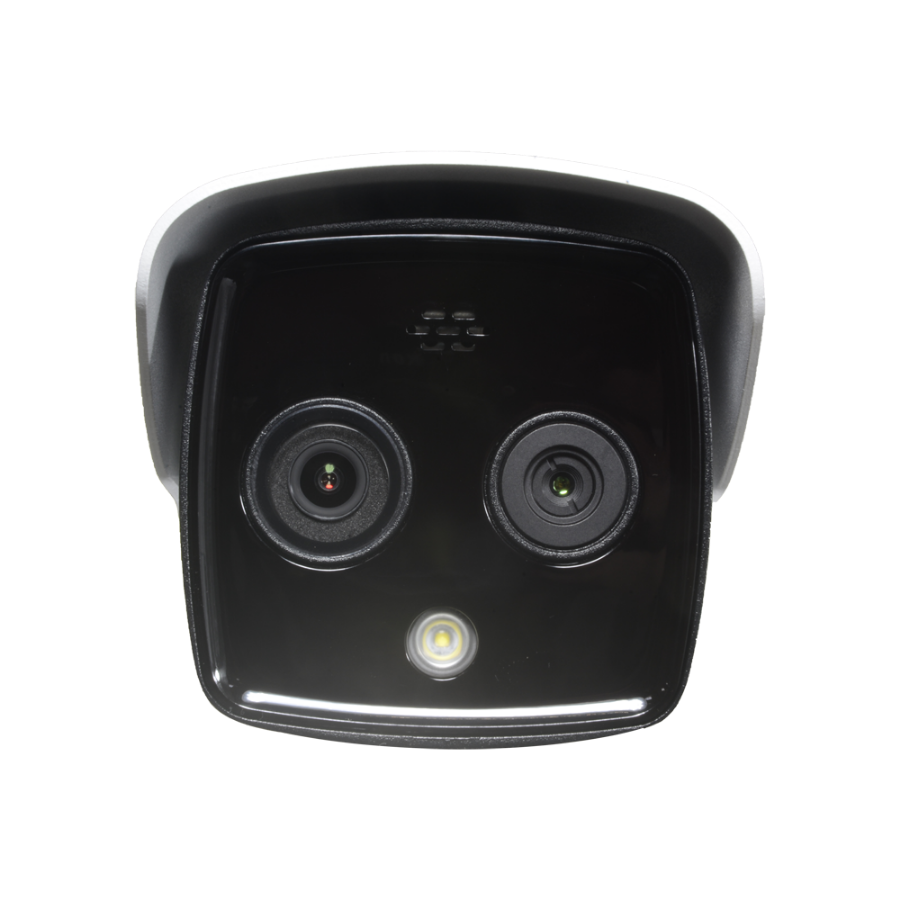

| Lens | 6.9 mm (Therm) / 6.4 mm (Opt) |
| Range performance | Human: 287 (Detection) / 72 (Recognition) / 36 (Identification) mVehicle: 881 (Detection) / 220 (Recognition) / 110 (Identification) m |
| VCA ranges | Human: 55.2mVehicle: 144.9 mTo measurement (0.2x0.2m): 23.3 mTo measurement (1x1m): 116.7 m |
| Viewing angle | 24.9° x 18.7° (Term) / 53.0° x 28.0° (Opt) |
| Thermal sensitivity | < 40mK (0.05 o C) |
| Thermal measurement range | -20 ~150 o C / ± 8 o C |
| Spectral range | 8~14µm |
| Pitch detector | 12µm |
| VCA | Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area) |
| Temperature rules | Up to 21 rules (10 points, 10 areas y 1 line) |
| Audio In/Out | 1/ 1 line level 600 ohm |
| Alarm In/Out | 2/2 Relay |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | 12VDC, 0.5A, max.6W; PoE IEEE802.3af, 0.14~0.22A, max.6.5W |
| Temp. operation | -40o C ~ +65o C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 138.3 mm (Fo) x 138.3 (An) x 123.1 (Al) mm |
| Weight | 940 g |
